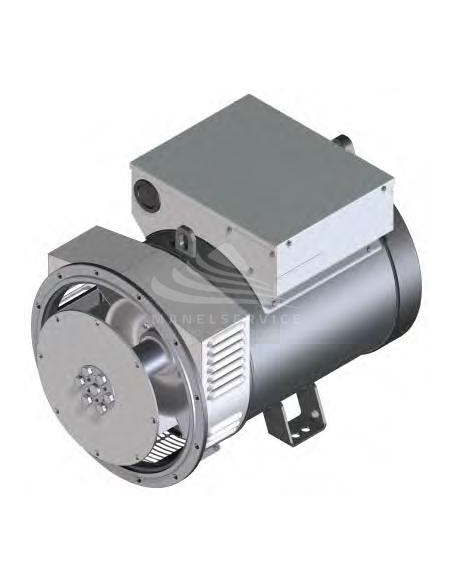

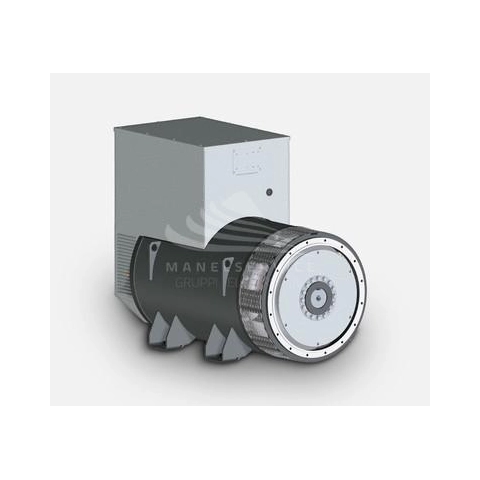

MECC ALTE ECO46-1L/4 THREE PHASE ALTERNATOR 2100 KVA AVR
      MECC ALTE ECO46-1L/4 THREE PHASE ALTERNATOR 2100 KVA AVR
      MECC ALTE ECO46-1L/4 THREE PHASE ALTERNATOR 2100 KVA AVR
      MECC ALTE ECO46-1L/4 THREE PHASE ALTERNATOR 2100 KVA AVR
      MECC ALTE ECO46-1L/4 THREE PHASE ALTERNATOR 2100 KVA AVR
      MECC ALTE ECO46-1L/4 THREE PHASE ALTERNATOR 2100 KVA AVR

      MECC ALTE ECO46-1L/4 THREE PHASE ALTERNATOR 2100 KVA AVR

      ECO46-1L/4 SAE0 d18

      Phase: Three phase
      Maximum three phase power: 1814 KW
      Continuous three phase power: 1680 KW
      Maximum three phase power: 2268 KVA
      Continuous three phase power: 2100 KVA
      Frequency: 50 / 60 Hz
      Voltage: 400 V
      Protection: IP23
      Rpm speed: 1500 / 1800 rpm
      Poles: 4
      Efficiency: 96.6%
      Weight: 3805 Kg
      Constant speed alternator
      Brushless
      Voltage regulator: AVR

      List price
      73,219.52 € tax incl.
      60,016.00 € tax excl.
      Discounted Price
      47,592.69 € tax incl.
      39,010.40 € tax excl.
      Choose the type of coupling :
      Download PDF
      Custom Quote

      PERSONAL DATA


      Ask a question

      I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

      Offer on letterhead
      MECC ALTE
      ECO46-1L/4 SAE0 d18

      Data sheet

      Phase
      Three phase
      Maximum power three phase (KW)
      1814
      Continuous power three phase (KW)
      1680
      Maximum power three phase (KVA)
      2268
      Continuous power three phase (KVA)
      2100
      Frequency (Hz)
      50 / 60
      Voltage (V)
      400
      Engine rpm (rpm)
      1500 / 1800
      Poles
      4
      Three-phase power (KVA)
      2268

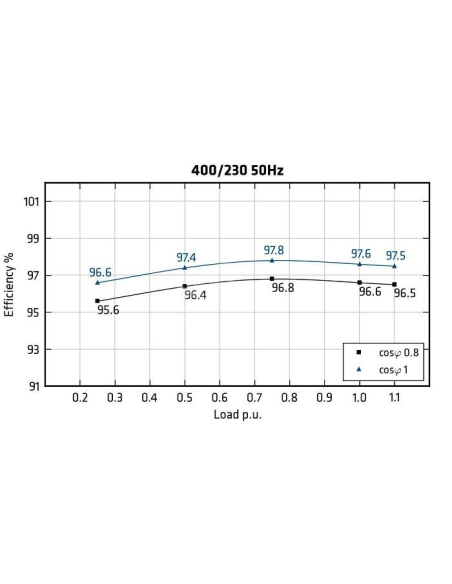

      Efficiency (%)
      96.6
      Protection degree
      IP23
      Acoustic pressure
      86 dB(A) at 7 m
      Brushes
      No
      PMG
      Optional
      Type of alternator
      Constant Speed
      Voltage regulator
      AVR
      Weight (Kg)
      3805

      Specific References

      New

      The ECO46 range has many product features designed into the alternator.
      Self-regulation is obtained through a digital electronic regulator that is fed by an auxiliary winding.
      We guarantee an almost constant supply from the generator - under any possible operating condition.
      A rotating inductor is fitted with a damper cage.

      The versatility of Mecc Alte products and their robust design means that ECO and ECP series are formed to meet the requirements of industry and the high technological specifications of applications. They are available either as single bearing or as twin bearing with a double support. In order to couple them to a prime mover, it is possible to choose among a wide range of flanges and couplings.

      All alternators consist of a fixed stator with skewed slots and a rotating inductor fitted. In addition, models above 15 KVA are fitted with a damper cage as standard. All alternator windings have a 2/3rd pitch in order to reduce harmonic content.

      The generators manufactured by Mecc Alte are in compliance with the CEI 2-3 file 11111 national standard. This Italian standard corresponds to the European standard EN 60034-1 and to the international standard IEC 60034-1; it is related also to the British standard BS 4999 Part 101; it is equivalent to the German standard VDE 0530 Part 1, and it is included in the French standard NF 51.111. Mecc Alte generators meet also the requirements of international ISO 8528-3 standard (Reciprocating internal combustion engine driven alternating current generating sets – Part 3: Alternating current generators for generating sets) and the requirements of NEMA MG 1-2011 (Motors and Generators).

      Not binding images and technical data.

      * Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
      Mecc Alte - Radio-VDE 0875 CLASS K interference suppressor kit for ECO
          Radio-VDE 0875 CLASS K interference suppressor kit for ECO46 alternators.
          155.00 €Price
          Mecc Alte - Voltage control potentiometer for ECO46 alternators.
              Voltage control potentiometer for ECO46 alternators.
              48.31 €Price
              Mecc Alte - Diode RBD-1 failure sensor for ECO46 alternators.
                  Diode RBD-1 failure sensor for ECO46 alternators.
                  356.15 €Price
                  Mecc Alte - Coupling bell for type B3-B14 for ECO46 alternators.
                      Coupling bell for type B3-B14 for ECO46 alternators.
                      601.07 €Price
                      Mecc Alte - PTCK150 temperature sensor for ECO46 alternators.
                          PTCK150 temperature sensor (1 set of 3) for ECO46 alternators.
                          235.30 €Price
                          Mecc Alte - PT100 RTD sensor on windings for ECO46 alternators.
                              PT100 RTD sensor on windings (1 of 3) for ECO46 alternators.
                              315.25 €Price
                              Mecc Alte - PT100 RTD sensor on windings for ECO46 alternators.
                                  PT100 RTD sensor on windings (2 of 3) for ECO46 alternators.
                                  598.00 €Price
                                  Mecc Alte - PT100 RTD (for bearing) for ECO46 alternators.
                                      PT100 RTD (for bearing) for ECO46 alternators.
                                      386.10 €Price
                                      Mecc Alte - Bimetallic probe (thermal protection) for ECO alternators.
                                          Bimetallic probe (thermal protection) for ECO46 alternators.
                                          209.95 €Price
                                          Mecc Alte - DSR AVR (factory fitted only) for ECO46 alternators.
                                              DSR AVR (factory fitted only) for ECO46 alternators.
                                              76.00 €Price
                                              Mecc Alte - USB 2 DxR digital interface for ECO46 alternators.
                                                  USB 2 DxR digital interface for ECO46 alternators.
                                                  200.20 €Price
                                                  Mecc Alte - DER2 AVR (three phase sensing) for ECO46 alternators.
                                                      DER2 AVR (three phase sensing integrated USB) (+/- 0.5%) (factory fitted only) for ECO46 alternators.
                                                      185.00 €Price
                                                      Mecc Alte - Basler DECS150 for ECO46 alternators.
                                                          Basler DECS150 for ECO46 alternators.
                                                          2,552.59 €Price
                                                          Mecc Alte - PMG - Kit permanent magnet generator for ECO46 alternators
                                                              PMG - Kit permanent magnet generator (factory fitted or integrable) for ECO46 alternators.
                                                              1,028.30 €Price
                                                              Mecc Alte - IP23 protection (Recommended for marine use) for ECO46. | Manel Service
                                                                  IP23 protection (Recommended for marine use) for ECO46 alternators.
                                                                  310.00 €Price
                                                                  Mecc Alte - Air filter for rear inlet (loss 7%) for ECO46 alternators.
                                                                      Air filter for rear inlet (loss 7%) for ECO46 alternators.
                                                                      1,979.25 €Price
                                                                      Mecc Alte - IP45 protection screen for ECO46 alternators.
                                                                          IP45 protection screen (Derating applies) for ECO46 alternators.
                                                                          3,827.20 €Price
                                                                          Mecc Alte - Anti-condensation heater - rear part for ECO46 alternators.
                                                                              Anti-condensation heater - rear part (factory fitted) for ECO46 alternators.
                                                                              240.43 €Price
                                                                              Mecc Alte - Anti-condensation heater - front part for ECO46 alternators
                                                                                  Anti-condensation heater - front part (factory fitted) for ECO46 alternators.
                                                                                  240.43 €Price
                                                                                  Mecc Alte - Anti-condensation heater on the rear shield for ECO46.
                                                                                      Anti-condensation heater on the rear shield (can be integrated) for ECO46 alternators.
                                                                                      423.56 €Price
                                                                                      Mecc Alte - Grey impregnation + for ECO46 alternators.
                                                                                          Grey impregnation + (Grey main stator and Black exciter stator) for ECO46 alternators.
                                                                                          1,035.45 €Price
                                                                                          Mecc Alte - Total Impregnation + for ECO46 alternators.
                                                                                              Total Impregnation + (Black main stator & exciter stator, Grey rotor) for ECO46 alternators.
                                                                                              1,343.55 €Price
                                                                                              Mecc Alte - Measuring current transformer TA for ECO46 1L alternators.
                                                                                                  Measuring current transformer TA (power 2100 KVA, k 3k5/5) for ECO46 1L alternators.
                                                                                                  1,816.70 €Price
                                                                                                  Mecc Alte - Protection current transformer TA for ECO46 1L alternators
                                                                                                      Protection current transformer TA (power 2100 KVA, k 4k/5) for ECO46 1L alternators.
                                                                                                      1,921.19 €Price
                                                                                                      Mecc Alte - Measuring and protection TA for ECO46 1L alternators.
                                                                                                          Measuring and protection current transformer TA (power 2100 KVA) for ECO46 1L alternators.
                                                                                                          2,499.79 €Price
