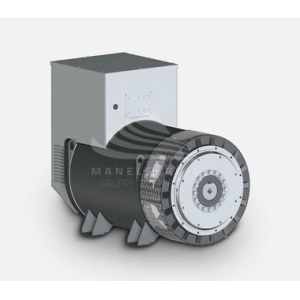

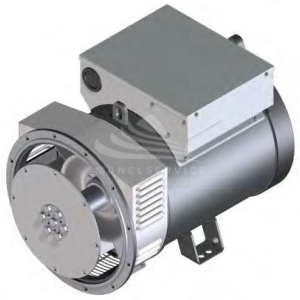

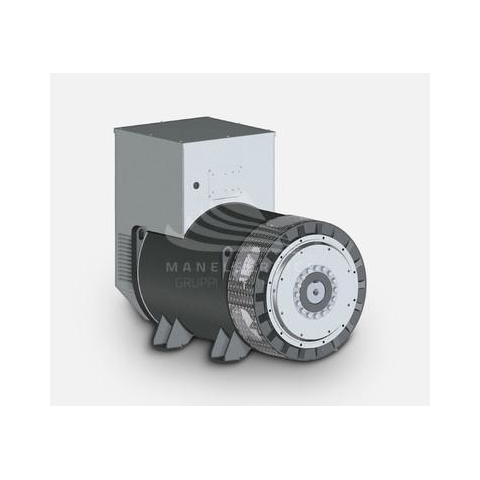

MECC ALTE ECO40-3S/4 THREE PHASE ALTERNATOR 500 KVA AVR
      MECC ALTE ECO40-3S/4 THREE PHASE ALTERNATOR 500 KVA AVR
      MECC ALTE ECO40-3S/4 THREE PHASE ALTERNATOR 500 KVA AVR

      MECC ALTE ECO40-3S/4 THREE PHASE ALTERNATOR 500 KVA AVR

      ECO40-3S/4 SAE1 d14

      Phase type: Single phase / Three phase
      Maximum three-phase power: 546 KVA / 437 KW
      Three-phase continuous use power: 500 KVA / 400 KW
      Maximum single-phase power: 302 KVA / 302 KW
      Single-phase continuous use power: 276 KVA / 276 KW
      Frequency: 50 / 60 Hz
      Voltage: 230 V / 400 V
      Protection class: IP23
      Alternator speed: 1500 / 1800 rpm
      Number of poles: 4
      Efficiency: 94. 6%
      Weight: 1152 Kg
      Constant speed alternator
      Brushless
      Voltage regulator: AVR

      Prezzo
      19,312.60 € tax incl.
      15,830.00 € tax excl.
      Choose the type of coupling :
      Download PDF
      Custom Quote

      PERSONAL DATA


      Ask a question

      I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

      Offer on letterhead
      MECC ALTE
      ECO40-3S/4 SAE1 d14

      Data sheet

      Phase
      Single phase / Three phase
      Maximum power single phase (KW)
      302
      Continuous power single phase (KW)
      276
      Maximum power single phase (KVA)
      302
      Continuous power single phase (KVA)
      276
      Maximum power three phase (KW)
      437
      Continuous power three phase (KW)
      400
      Maximum power three phase (KVA)
      546
      Continuous power three phase (KVA)
      500
      Frequency (Hz)
      50 / 60
      Voltage (V)
      230 / 400
      Engine rpm (rpm)
      1500 / 1800
      Poles
      4
      Single-phase power (KVA)
      302
      Three-phase power (KVA)
      546
      Efficiency (%)
      94.6
      Protection degree
      IP23
      Acoustic pressure
      82 dB(A) at 7 m
      Brushes
      No
      PMG
      Optional
      Type of alternator
      Constant Speed
      Voltage regulator
      AVR
      Weight (Kg)
      1152

      Specific References

      New

      The ECO40 range has many product features designed into the alternator.
      Self-regulation is obtained through a digital electronic regulator that is fed by an auxiliary winding.
      We guarantee an almost constant supply from the generator - under any possible operating condition.
      A rotating inductor is fitted with a damper cage.

      The versatility of Mecc Alte products and their robust design means that ECO and ECP series are formed to meet the requirements of industry and the high technological specifications of applications. They are available either as single bearing or as twin bearing with a double support. In order to couple them to a prime mover, it is possible to choose among a wide range of flanges and couplings.

      All alternators consist of a fixed stator with skewed slots and a rotating inductor fitted. In addition, models above 15 KVA are fitted with a damper cage as standard. All alternator windings have a 2/3rd pitch in order to reduce harmonic content.

      The generators manufactured by Mecc Alte are in compliance with the CEI 2-3 file 11111 national standard. This Italian standard corresponds to the European standard EN 60034-1 and to the international standard IEC 60034-1; it is related also to the British standard BS 4999 Part 101; it is equivalent to the German standard VDE 0530 Part 1, and it is included in the French standard NF 51.111. Mecc Alte generators meet also the requirements of international ISO 8528-3 standard (Reciprocating internal combustion engine driven alternating current generating sets – Part 3: Alternating current generators for generating sets) and the requirements of NEMA MG 1-2011 (Motors and Generators).

      Not binding images and technical data.

      * Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
