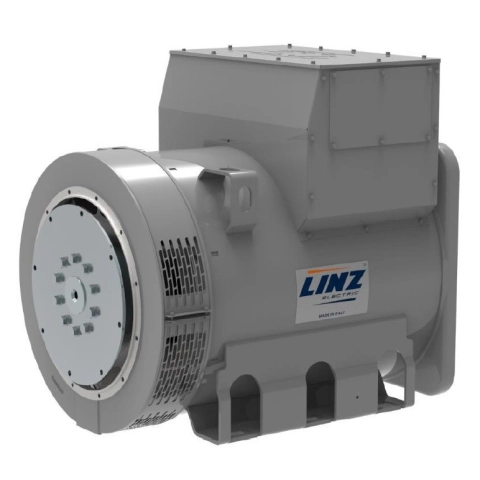

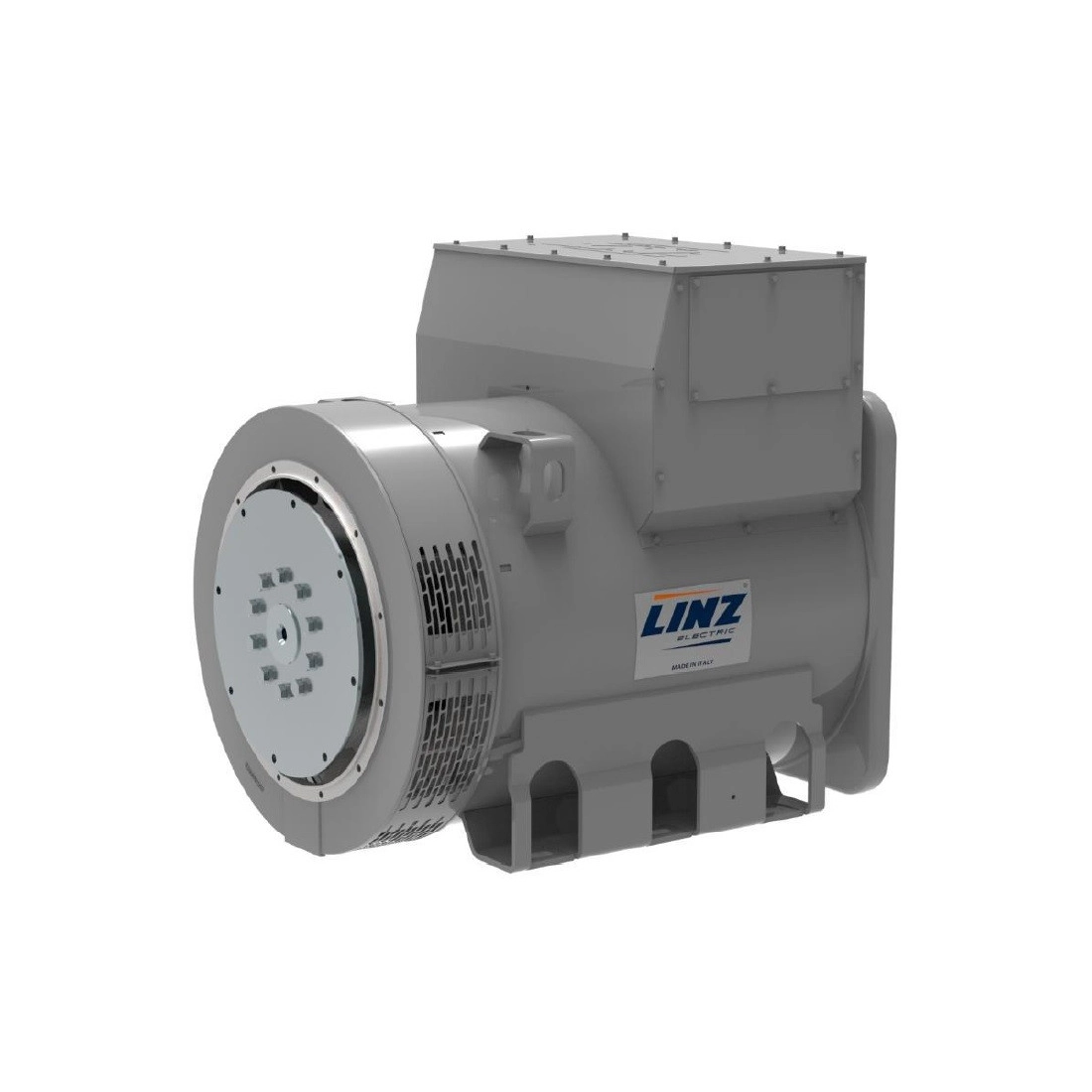

LINZ PRO35S D/4 Three-phase alternator 4 poles 660 kVA 60 Hz AVR
      LINZ PRO35S D/4 Three-phase alternator 4 poles 660 kVA 60 Hz AVR
      LINZ PRO35S D/4 Three-phase alternator 4 poles 660 kVA 60 Hz AVR

      LINZ PRO35S D/4 Three-phase alternator 4 poles 660 kVA 60 Hz AVR

      PRO35S D/4 60 Hz SAE1 d14

      Rated power at 60 Hz (kVA): 660
      Rated power factor: 0.8
      Rated temperature (°C): 40
      Control system: self-excited
      Design: brushless
      Type of regulation: AVR
      Insulation class: H
      Protection: IP23
      Maximum excess travel speed (rpm): 2250
      110% overload of rated power for one hour in a 6-hour cycle
      Suppression standard R.F.F.I. EN55011

      Ask a question
      Offer on letterhead
      Choose the type of coupling :
      Ask for availability
      Download PDF
      Custom Quote
      Product: LINZ PRO35S D/4 Three-phase alternator 4 poles 660 kVA 60 Hz AVR

      PERSONAL DATA

      Ask a question
      Product: LINZ PRO35S D/4 Three-phase alternator 4 poles 660 kVA 60 Hz AVR
      Offer on letterhead
      Product: LINZ PRO35S D/4 Three-phase alternator 4 poles 660 kVA 60 Hz AVR
      LINZ ELECTRIC
      PRO35S D/4 60 Hz SAE1 d14

      Data sheet

      Phase
      Three phase
      Continuous power three phase (KVA)
      Frequency (Hz)
      60
      Voltage (V)
      230 / 400
      Engine rpm (rpm)
      1800
      Alternator
      Synchronous
      Poles
      4
      Three-phase power (KVA)
      550
      Protection degree
      IP23
      Motor insulation class
      H

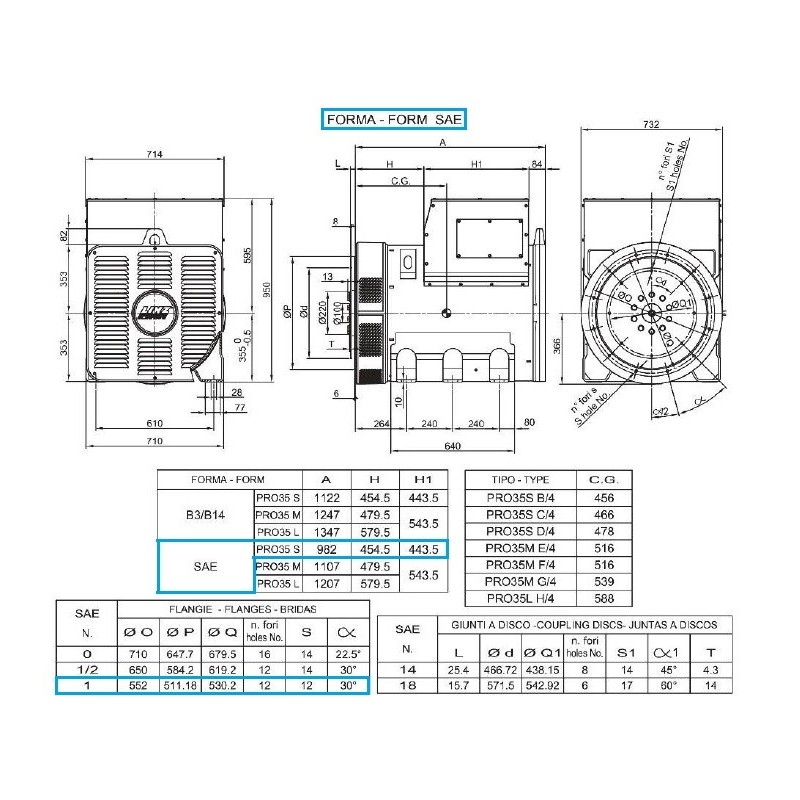

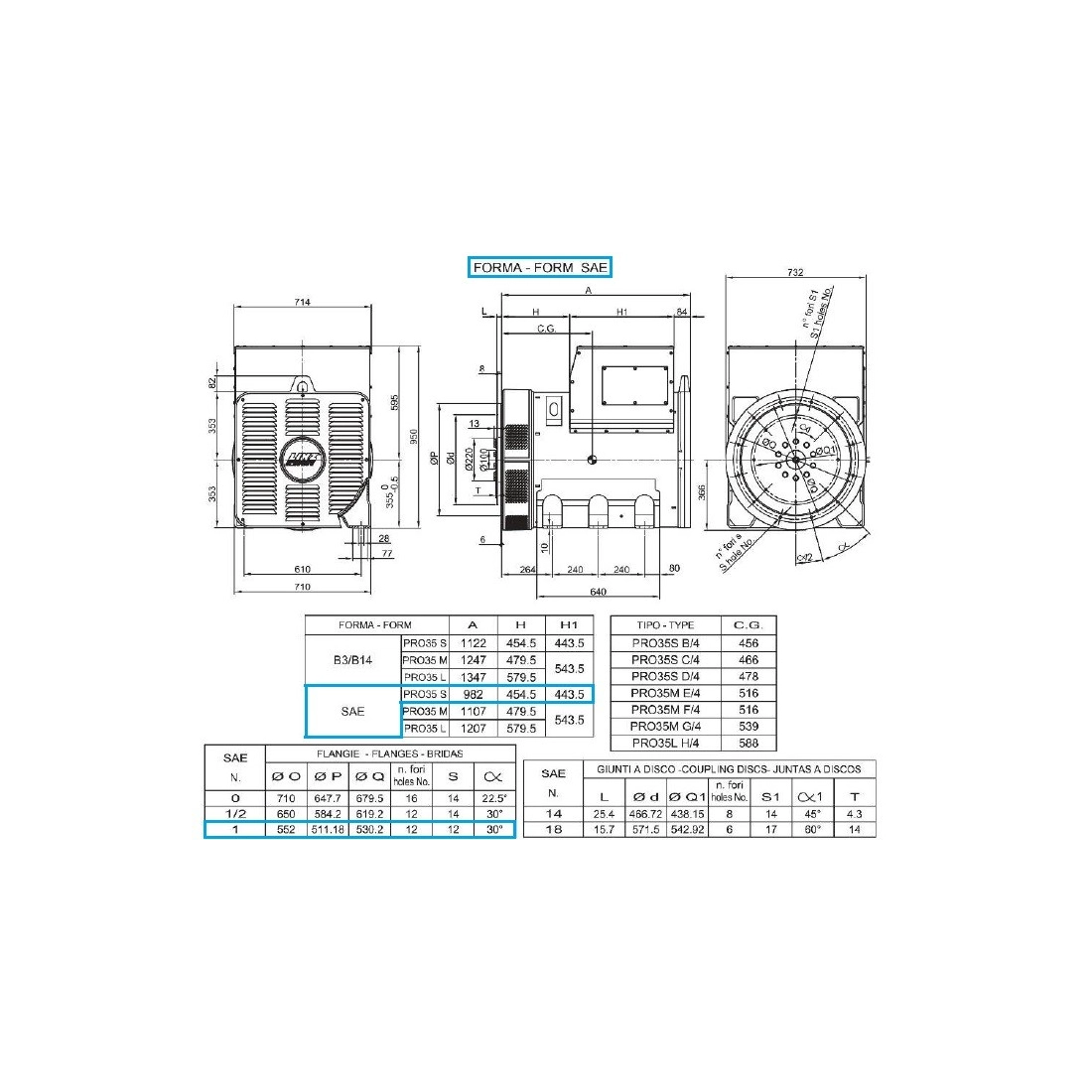

      Length (mm)
      982
      Width (mm)
      732
      Height (mm)
      950
      Brushes
      No
      PMG
      Optional
      Type of alternator
      Constant Speed
      Voltage regulator
      AVR
      Weight (Kg)
      1342.5

      Specific References

      New

      The alternators of PRO series are three-phase brushless 4 poles with electronic regulation (AVR) with single-phase sensing (PRO18-PRO22) and three-phase sensing (PRO28-PRO35-PRO40).

      CHARACTERISTICS

      • Compact and mechanically resistant
      • Excellent wave form
      • Minimum maintenance
      • High efficiency
      • Type: Three-phase alternators
      • Poles: 4
      • Phases: Three-phase
      • Regulation: AVR
      • Application: INDUSTRIAL, COGENERATION
