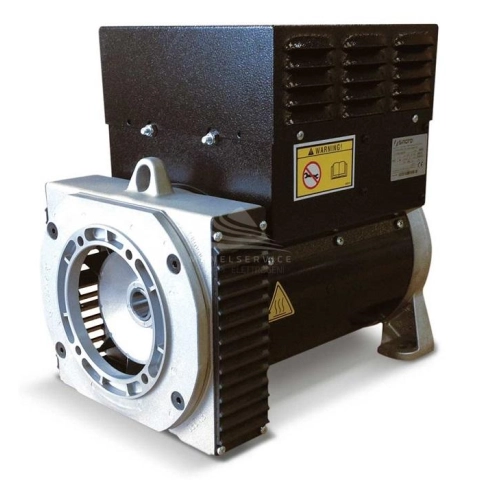

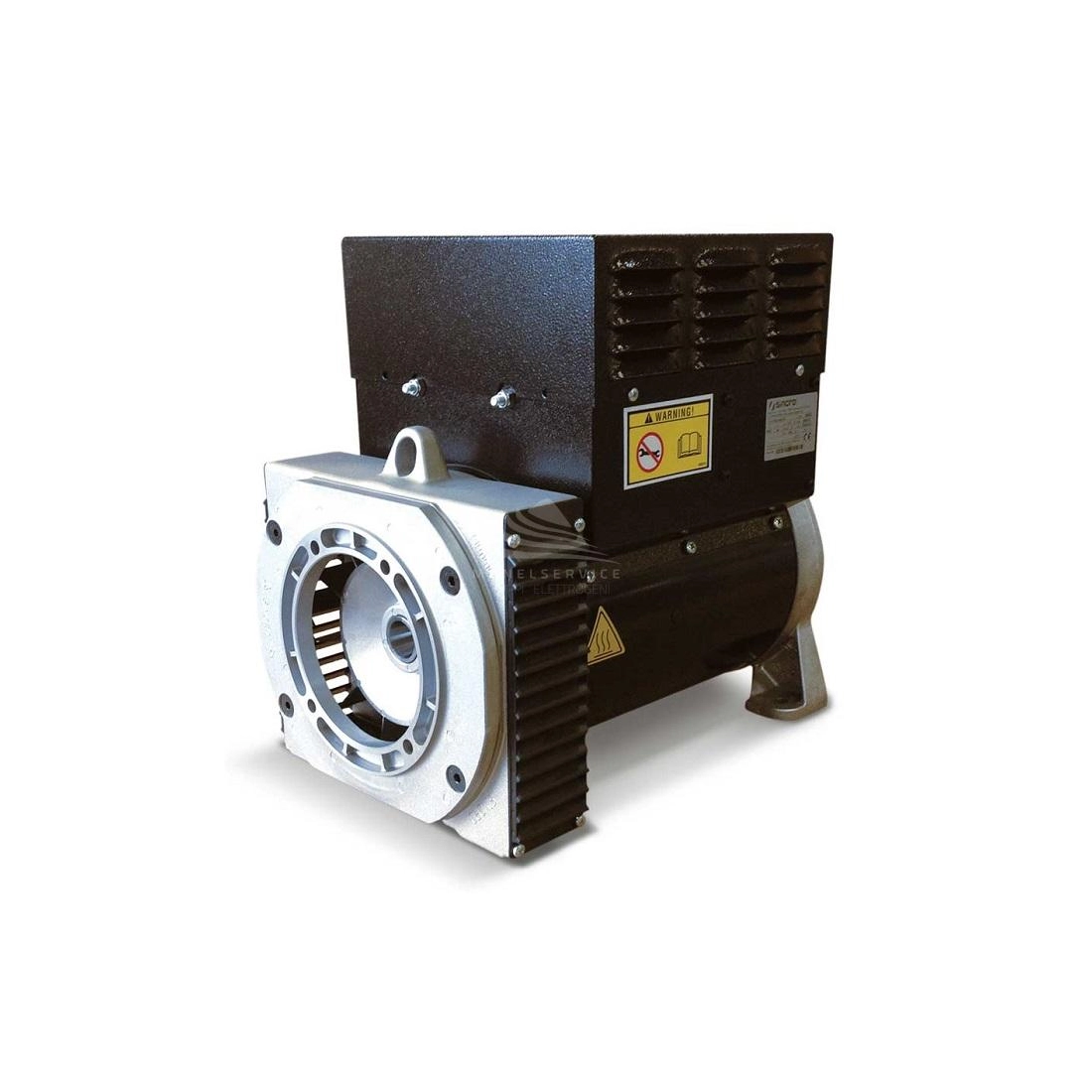

SINCRO FB 4-24/200 Synchronous DC Alternator 4.8 KW AVR
      SINCRO FB 4-24/200 Synchronous DC Alternator 4.8 KW AVR

      SINCRO FB 4-24/200 Synchronous DC Alternator 4.8 KW AVR

      FB 4-24/200

      Poles: 4
      Voltage (V): 24
      Frequency (Hz): 50
      Rpm Speed: 1500
      Power (KW): 4.8
      Current (A): 200
      Constant Speed Alternator
      AVR
      Brushless
      Weight (Kg): 59.2
      Protection: IP23

      List price
      2,509.54 € tax incl.
      2,057.00 € tax excl.
      Discounted Price
      1,521.34 € tax incl.
      1,247.00 € tax excl.
      Custom Quote

      PERSONAL DATA


      Ask a question

      I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

      Offer on letterhead
      SINCRO
      FB 4-24/200

      Data sheet

      Frequency (Hz)
      50
      Voltage (V)
      24
      Engine rpm (rpm)
      1500
      Poles
      4
      Power (KW)
      4.8
      Protection degree
      IP23
      Current (A)
      200
      Brushes
      No
      Type of alternator
      Constant Speed
      Voltage regulator
      AVR
      Weight (Kg)
      59.2

      Specific References

      New

      Designed for applications requiring 24 & 48 VDC low voltage supply, Sincro DC power solutions are suitable both as battery chargers and emergency power supplies of auxiliary circuits, in the telecommunication, transports and industrial field.

      Applications
      - Battery chargers
      - Low voltage LED light towers
      - Power supply of auxiliary circuits, high/medium voltage disconnectors coils, signalling devices
      - Power supply of monitoring and alarm systems

      General features
      - AVR electronic voltage regulation
      - Based on three-phase synchronous alternators
      - 1500 rpm or 3000 rpm with large speed tollerance
      - Constant DC output voltage
      - Adjustable output voltage
      - Current overload protection
      - Fan cooled
      - Complying with EN 60034-1, IEC 60034-1, ISO 8528-3

      Sectors of use
      - Telecommunications
      - Industry
      - Transports
      - Military

      Advantages
      - High voltage stability in a large speed range
      - High efficiency
      - Low voltage ripple
      - High reliability
      - Available with the most common couplings
      - Fast recovery time during transient by step load variation

      Not binding images and technical data.

      * Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
