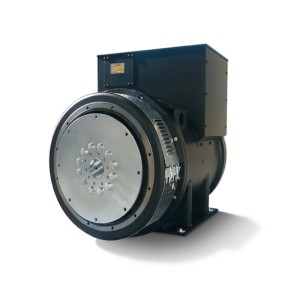

SINCRO SK315 SS SINGLE-THREE PHASE ALTERNATOR 350KVA AVR

SINCRO THREE PHASE ALTERNATOR SK315
SINCRO THREE PHASE ALTERNATOR SK315
SINCRO THREE PHASE ALTERNATOR SK315
SINCRO THREE PHASE ALTERNATOR SK315
SK315 SS SAE1 d14

Phase: Three Phase
Poles: 4
Voltage (V): 400
Frequency (Hz): 50
Rpm Speed: 1500
Single Phase Output (kVA): ----
Three Phase Output (kVA): 350
Constant Speed Alternator
D-AVR
Brushless
Weight (Kg): 855
Protection: IP23

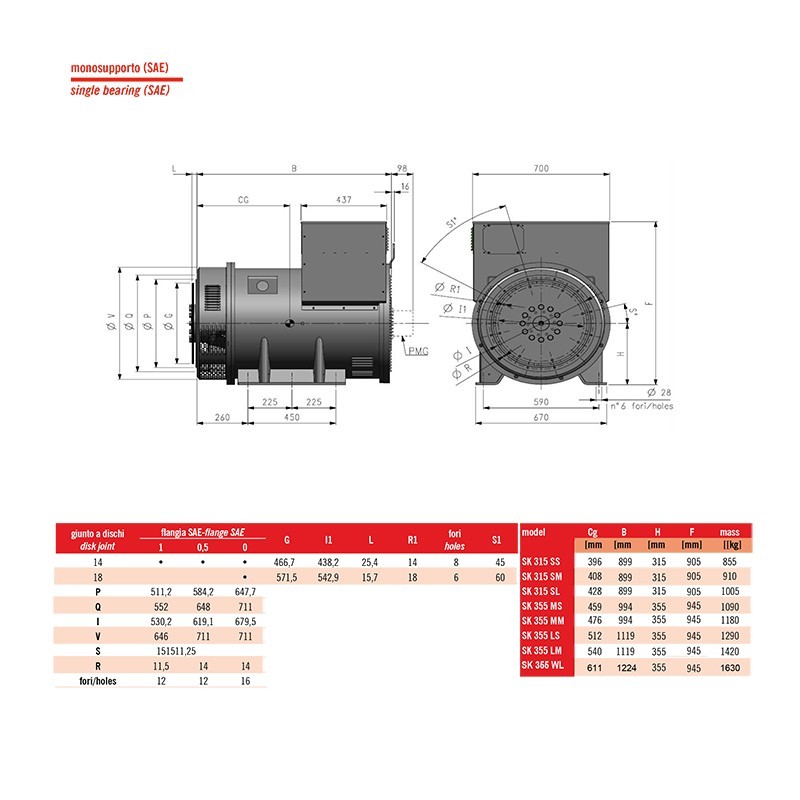

Download Technical data SK315

Phase
Three phase
Frequency (Hz)
50
Voltage (V)
400
Engine rpm (rpm)
1500
Poles
4
Three-phase power (KW)
280
Three-phase power (KVA)
350
Efficiency (%)
92.9
Protection degree
IP23
Dry weight (Kg)
855
Brushes
No
PMG
Optional
Type of alternator
Constant Speed
Voltage regulator
Digital AVR
Brand

Three phase brushless alternator - AVR.

- Insulation class H
- IP23
- Standard voltage 400 V - 50 Hz
- Leads 6
- Bearings: Bearings are dimensioned for heavy duty
- Transient features: Transient voltage drop for rated step load at 0.8 power factor is less than 18%
- Tropicalizzation: standard

The image is purely indicative.

* Images and technical data are not binding. Please always consult the technical data sheet released by the manufacturer. Manel Service does not assume responsibility for any changes made by the manufacturer.

Complete your order with:

Unavailable
€8,710.00 €8,710.00
Choose the type of coupling
  • IM B34 - B3/B14
  • SAE1 disk joint 14
  • SAE1/2 disk joint 14
  • SAE0 disk joint 14
  • SAE0 disk joint 18

This product is not available for order, please contact us and we will provide you a quotation for similar product based on your needs.
