SINCRO SK500 MA Three Phase Synchronous AC Alternator 1875 kVA PMG D-AVR

  • Online only

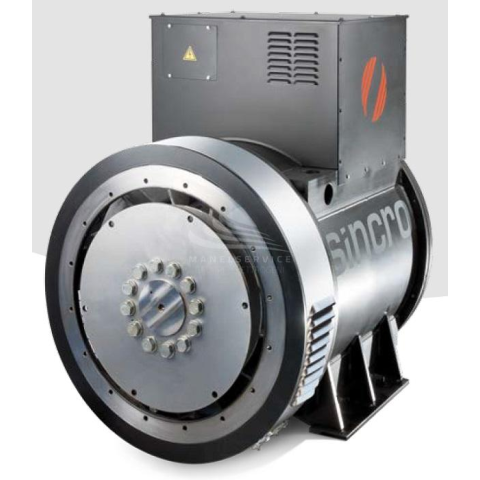

SINCRO THREE PHASE ALTERNATOR SK500
SINCRO THREE PHASE ALTERNATOR SK500
SINCRO THREE PHASE ALTERNATOR SK500
SINCRO THREE PHASE ALTERNATOR SK500
SINCRO THREE PHASE ALTERNATOR SK500
SINCRO THREE PHASE ALTERNATOR SK500
SK500 MA SAE0 d18

Phase: Three Phase
Poles: 4
Voltage (V): 400
Frequency (Hz): 50
Rpm Speed: 1500
Single Phase Output (kVA): ----
Three Phase Output (kVA): 1875
Constant Speed Alternator
D-AVR
Brushless
PMG
Weight (Kg): 3420
Protection: IP23

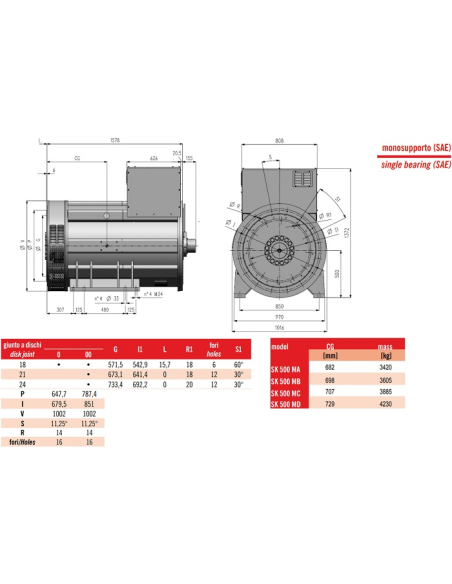

Download Technical data SK500

Phase
Three phase
Frequency (Hz)
50
Voltage (V)
400
Engine rpm (rpm)
1500
Poles
4
Three-phase power (KW)
1500
Three-phase power (KVA)
1875
Efficiency (%)
95.5
Protection degree
IP23
Brand

Three phase brushless alternator - AVR.

- Insulation class H
- IP23
- Standard voltage 400 V - 50 Hz
- Leads 4
- Excitation PMG: standard
- Bearings: Bearings are dimensioned for heavy duty
- Transient features: Transient voltage drop for rated step load at 0.8 power factor is less than 18%
- Tropicalizzation: standard

The images are purely indicative.

* Images and technical data are not binding. Please always consult the technical data sheet released by the manufacturer. Manel Service does not assume responsibility for any changes made by the manufacturer.

Complete your order with:

€42,580.00 €42,580.00
Choose the type of coupling
  • IM B34 - B3/B14
  • SAE0 disk joint 18
  • SAE00 disk joint 18
  • SAE00 disk joint 21
  • SAE00 disk joint 24
Download PDF
 Calculate Shipping Cost
Shipping all over the world
