SINCRO IB4 LA SINGLE-THREE PHASE ALTERNATOR 50KVA AVR

SINCRO THREE PHASE ALTERNATOR IB4
search
  • SINCRO THREE PHASE ALTERNATOR IB4
  • SINCRO THREE PHASE ALTERNATOR IB4
SINCRO
IB4 LA SAE4 d6.5
New product

Phase: Single / Three Phase
Poles: 4
Voltage (V): 230 / 400
Frequency (Hz): 50
Rpm Speed: 1500
Single Phase Output (kVA): 30
Three Phase Output (kVA): 50
Constant Speed Alternator
AVR
Brushless
Weight (Kg): 193
Protection: IP23

Technical features
Phase
Single phase / Three phase
Frequency (Hz)
50
Voltage (V)
230 / 400
Engine rpm (rpm)
1500
Poles
4
Single-phase power (KW)
24
Single-phase power (KVA)
30
Three-phase power (KW)
40
Three-phase power (KVA)
50
Efficiency (%)
90.7
Protection degree
IP23
Dry weight (Kg)
193
Brushes
No
Type of alternator
Constant Speed
Voltage regulator
AVR
Details

Three phase brushless alternator - AVR.

- Insulation class H
- IP23
- Standard voltage 230/400 V - 50 Hz
- Leads 12
- Bearings: Bearings are dimensioned for heavy duty
- Transient features: Transient voltage drop for rated step load at 0.8 power factor is less than 18%
- Single-phase operation: IB4 alternators can be connected for single-phase use

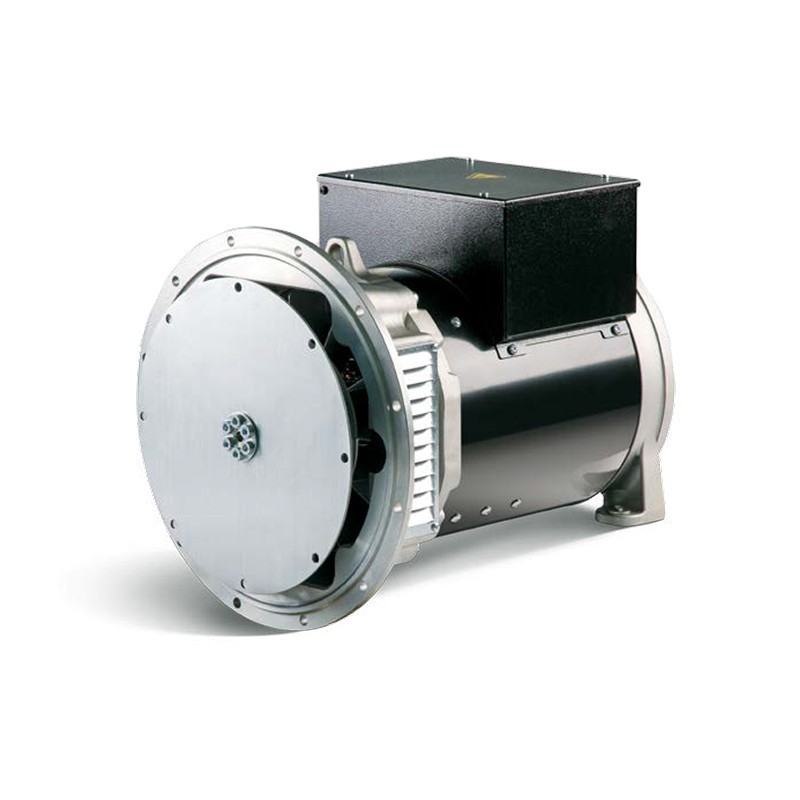

The image is purely indicative.

* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
Technical Sheet / Manuals

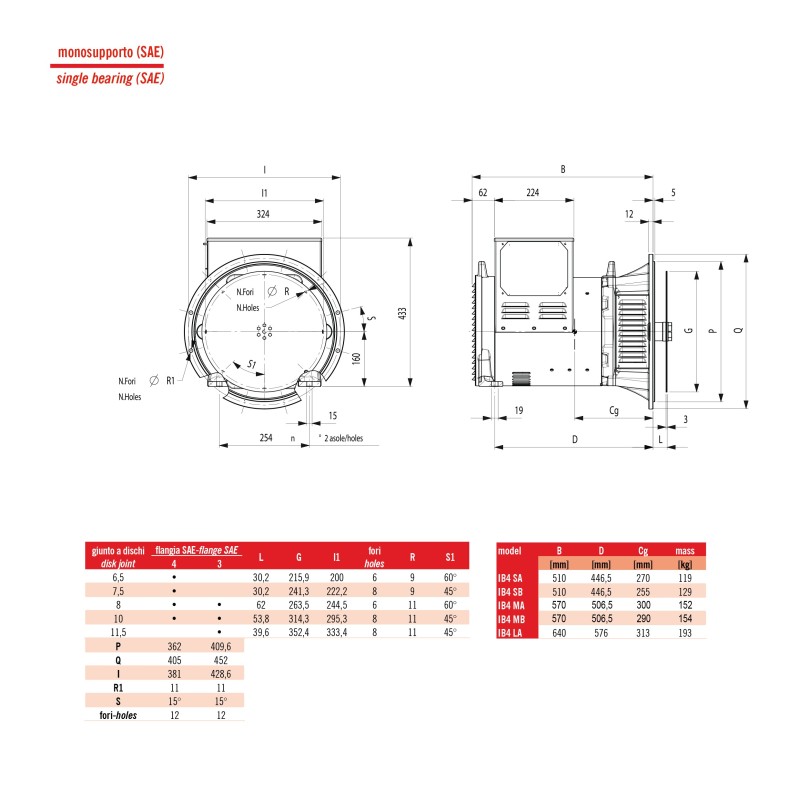

Technical data IB4

(995.05k)
Related Accessories
List price
4.657,96 € tax incl.
3.818,00 € tax excl.
Discounted Price
2.824,30 € tax incl.
2.315,00 € tax excl.
Choose the type of coupling
Ask for availability
Add to wishlist
Download PDF
Ask a question
Product: SINCRO IB4 LA SINGLE-THREE PHASE ALTERNATOR 50KVA AVR
Offer on letterhead
Product: SINCRO IB4 LA SINGLE-THREE PHASE ALTERNATOR 50KVA AVR
Technical features
Phase
Single phase / Three phase
Frequency (Hz)
50
Voltage (V)
230 / 400
Engine rpm (rpm)
1500
Poles
4
Single-phase power (KW)
24
Single-phase power (KVA)
30
Three-phase power (KW)
40
Three-phase power (KVA)
50
Efficiency (%)
90.7
Protection degree
IP23
Dry weight (Kg)
193
Brushes
No
Type of alternator
Constant Speed
Voltage regulator
AVR
Details

Three phase brushless alternator - AVR.

- Insulation class H
- IP23
- Standard voltage 230/400 V - 50 Hz
- Leads 12
- Bearings: Bearings are dimensioned for heavy duty
- Transient features: Transient voltage drop for rated step load at 0.8 power factor is less than 18%
- Single-phase operation: IB4 alternators can be connected for single-phase use

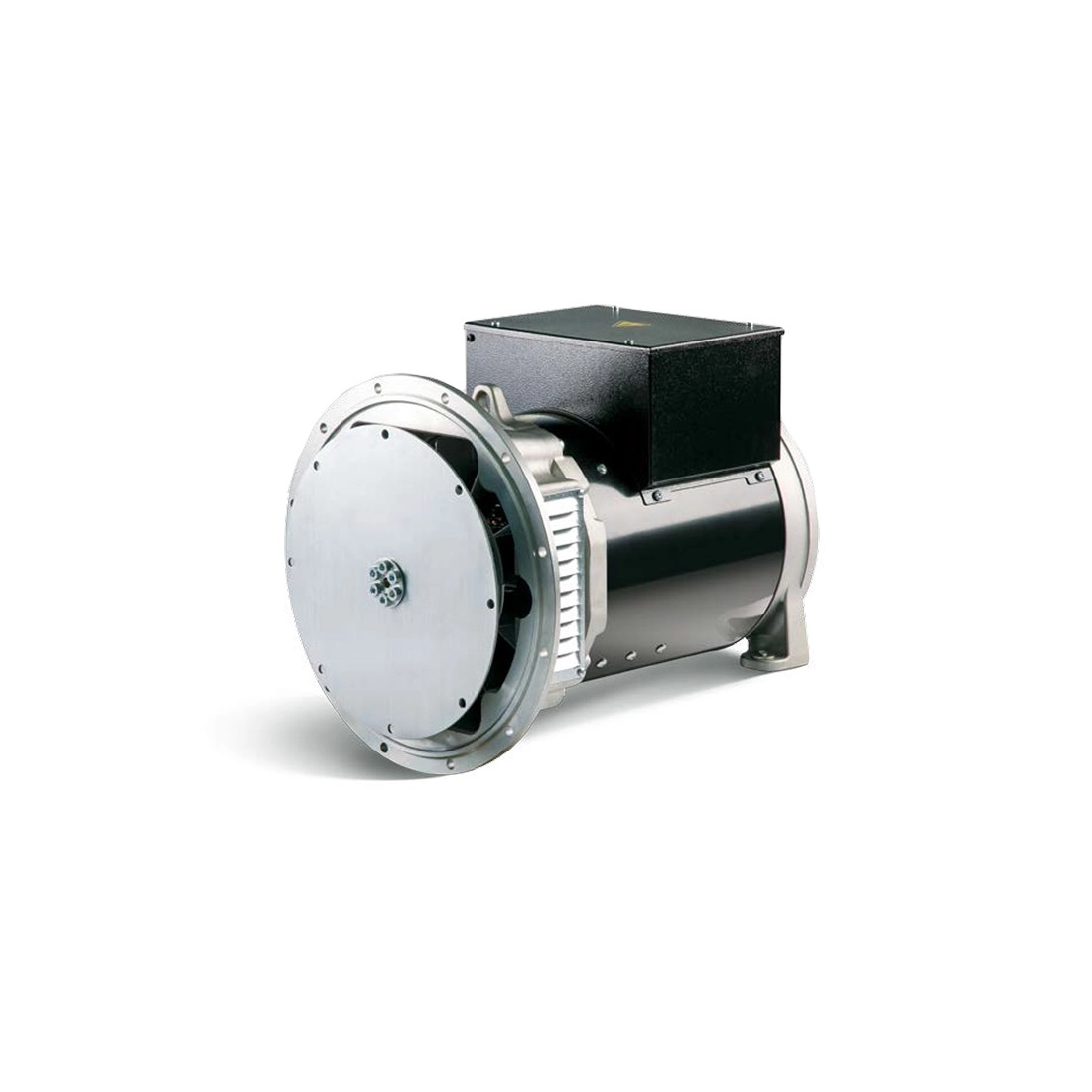

The image is purely indicative.

* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
Technical Sheet / Manuals

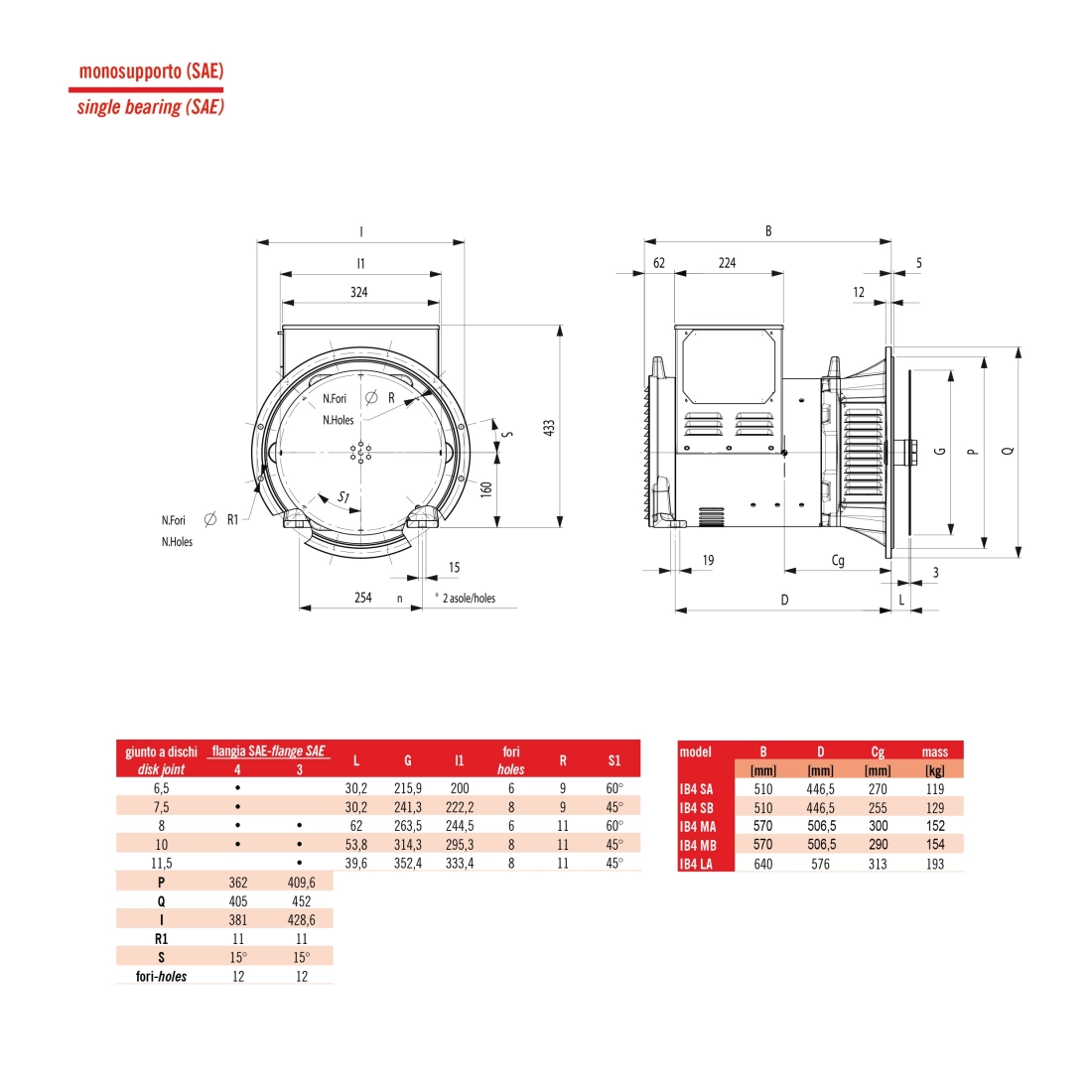

Technical data IB4
