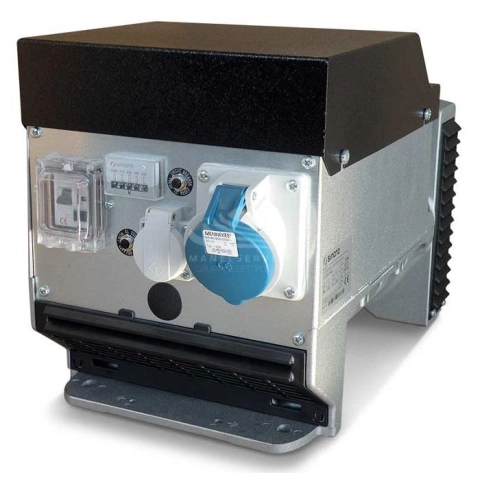

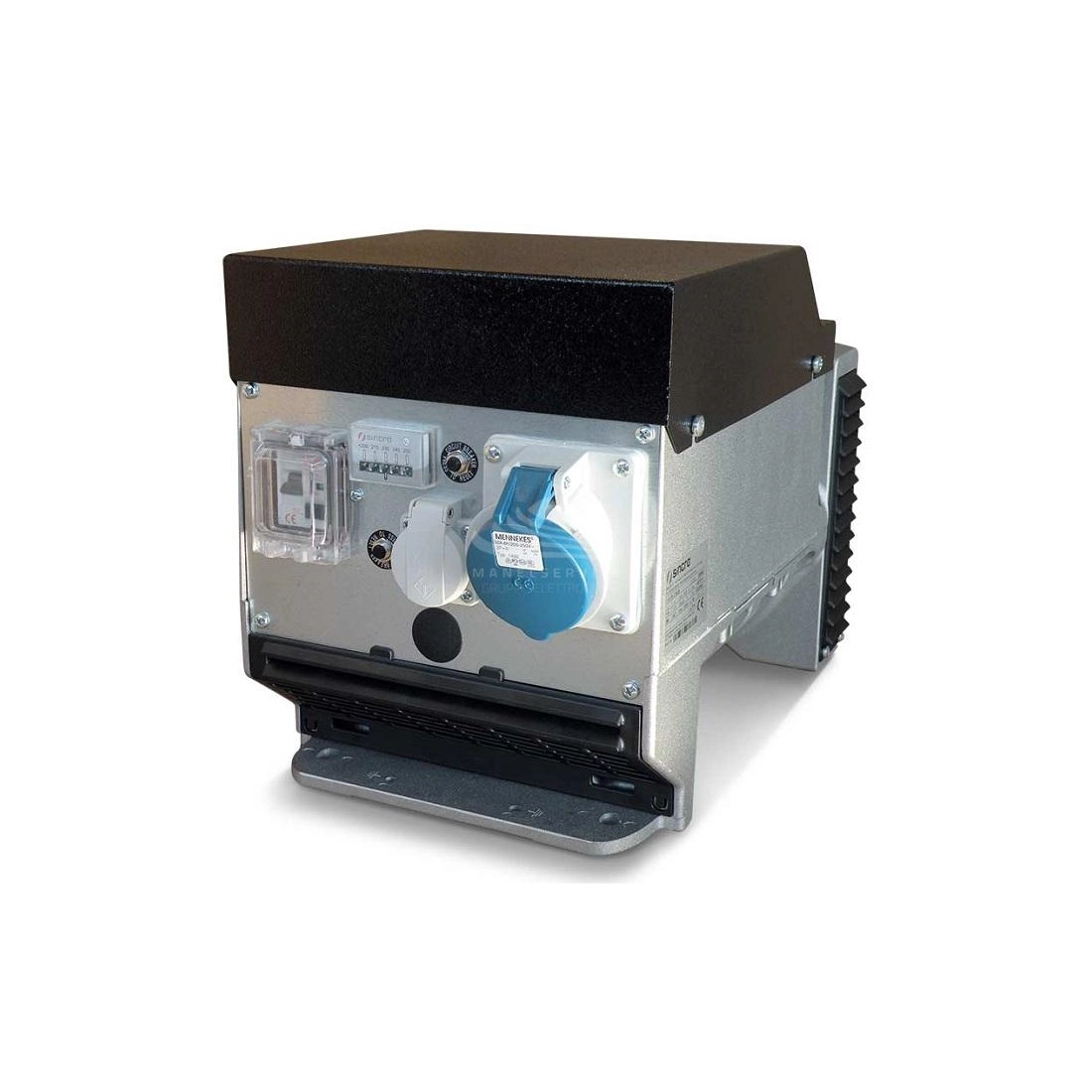

SINCRO FK4 MBA Single Phase Synchronous AC Alternator 5.5 kVA AVR

FK4 MBA J609b c25.4
      SINCRO FK4 MBA Single Phase Synchronous AC Alternator 5.5 kVA AVR
      SINCRO FK4 MBA Single Phase Synchronous AC Alternator 5.5 kVA AVR
      SINCRO FK4 MBA Single Phase Synchronous AC Alternator 5.5 kVA AVR

      Phase: Single Phase
      Poles: 4
      Voltage (V): 230
      Frequency (Hz): 50
      Rpm Speed: 1500
      Single Phase Output (kVA): 5.5
      Constant Speed Alternator
      AVR
      Brushes
      Weight (Kg): 36.3
      Protection: IP23

      List price
      1,302.96 € tax incl.
      1,068.00 € tax excl.
      Discounted Price
      789.92 € tax incl.
      647.48 € tax excl.
      Ask a question
      Offer on letterhead
      Choose the type of coupling :
      Ask for availability
      Download PDF
      Ask a question

      I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

      Offer on letterhead
      SINCRO
      FK4 MBA J609b c25.4

      Data sheet

      Phase
      Single phase
      Frequency (Hz)
      50
      Voltage (V)
      230
      Engine rpm (rpm)
      1500
      Poles
      4
      Single-phase power (KW)
      5.5
      Single-phase power (KVA)
      5.5
      Efficiency (%)
      77
      Protection degree
      IP23
      Dry weight (Kg)
      36
      Brushes
      Yes
      Type of alternator
      Constant Speed
      Voltage regulator
      AVR

      Specific References

      New

      Single phase brushes alternator - AVR.

      - Self-regulated
      - IP23
      - Standard voltage 230 V - 50 Hz
      - Short circuit current greater than 3 In

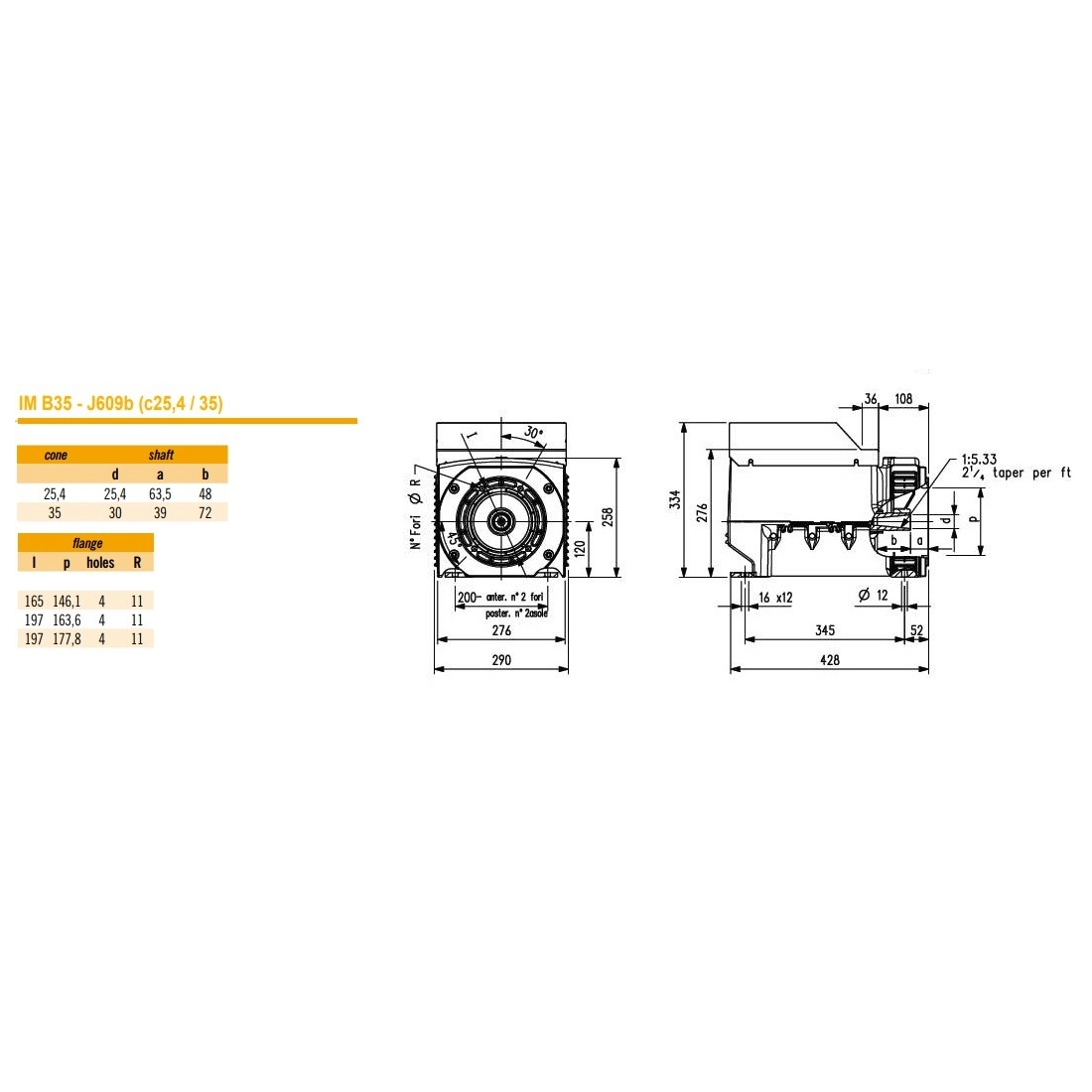

      - Standard coupling IM B35 cone 25.4 / cone 35
      - Couplings IM B34, IM B35, SAE

      The image is purely indicative.

      * Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
