SINCRO FB2 MA SINGLE-THREE PHASE ALTERNATOR 16.5KVA AVR

SINCRO THREE PHASE ALTERNATOR FB2
search
  • SINCRO THREE PHASE ALTERNATOR FB2
  • SINCRO THREE PHASE ALTERNATOR FB2
SINCRO
FB2 MA J609b c25.4
New product

Phase: Single / Three Phase
Poles: 2
Voltage (V): 230 / 400
Frequency (Hz): 50
Rpm Speed: 3000
Single Phase Output (kVA): 10
Three Phase Output (kVA): 16.5
Constant Speed Alternator
AVR
Brushless
Weight (Kg): 64
Protection: IP23

Technical features
Phase
Single phase / Three phase
Frequency (Hz)
50
Voltage (V)
230 / 400
Engine rpm (rpm)
3000
Poles
2
Single-phase power (KW)
8
Single-phase power (KVA)
10
Three-phase power (KW)
13.2
Three-phase power (KVA)
16.5
Efficiency (%)
86.6
Protection degree
IP23
Dry weight (Kg)
64
Brushes
No
Type of alternator
Constant Speed
Voltage regulator
AVR
Details

Three phase brushless alternator - AVR.

- Insulation class H
- IP23
- Standard voltage 230/400 V - 50 Hz
- Leads 6
- Bearings: Bearings are dimensioned for heavy duty
- Transient features: Transient voltage drop for rated step load at 0.8 power factor is less than 18%
- Single-phase operation: FB2 alternators can be connected for single-phase use

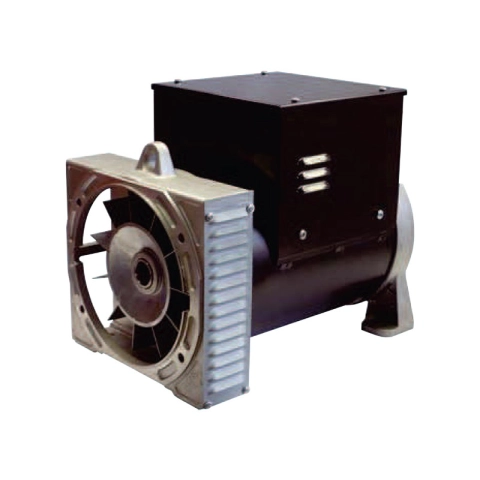

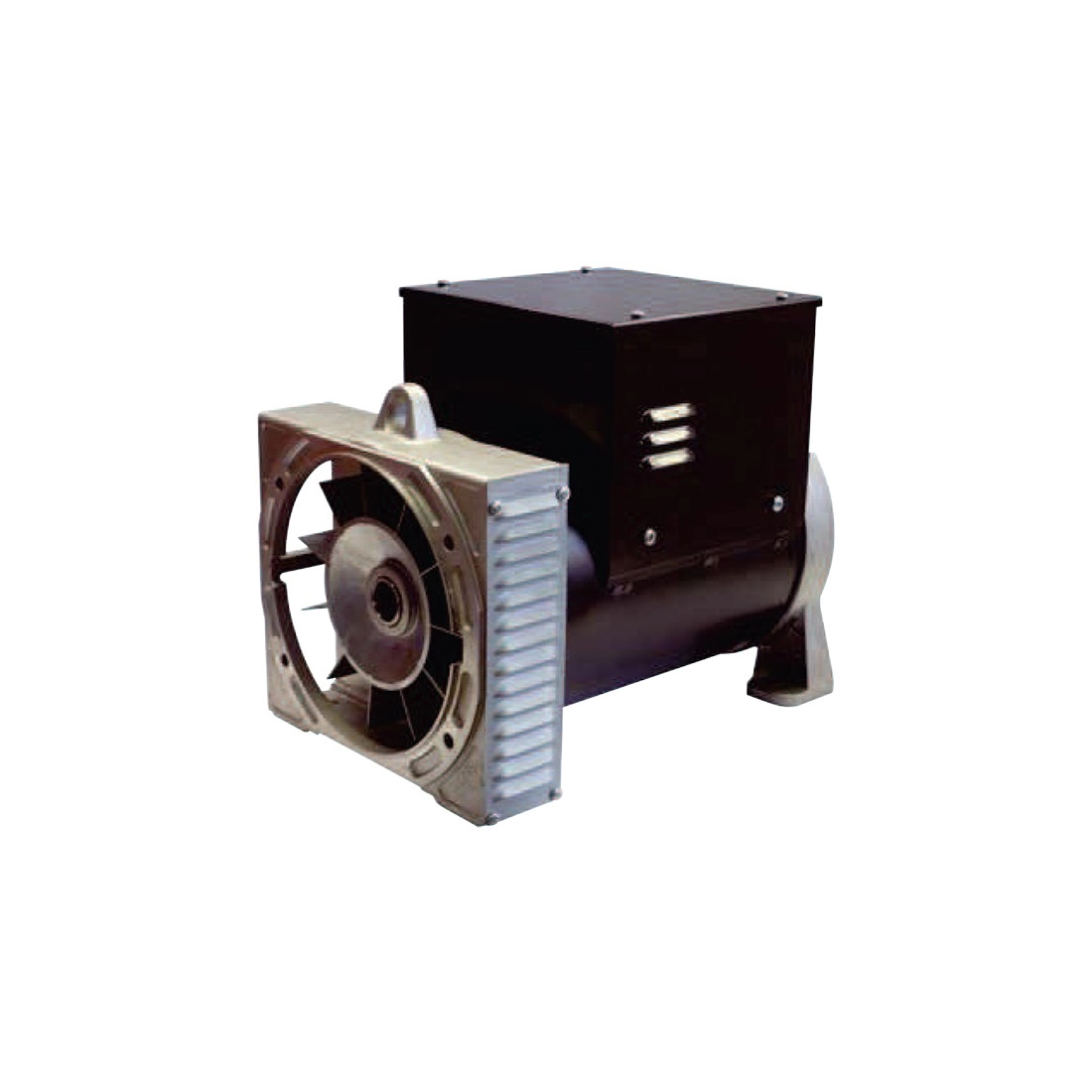

The image is purely indicative.

Technical Sheet / Manuals
icona_scheda

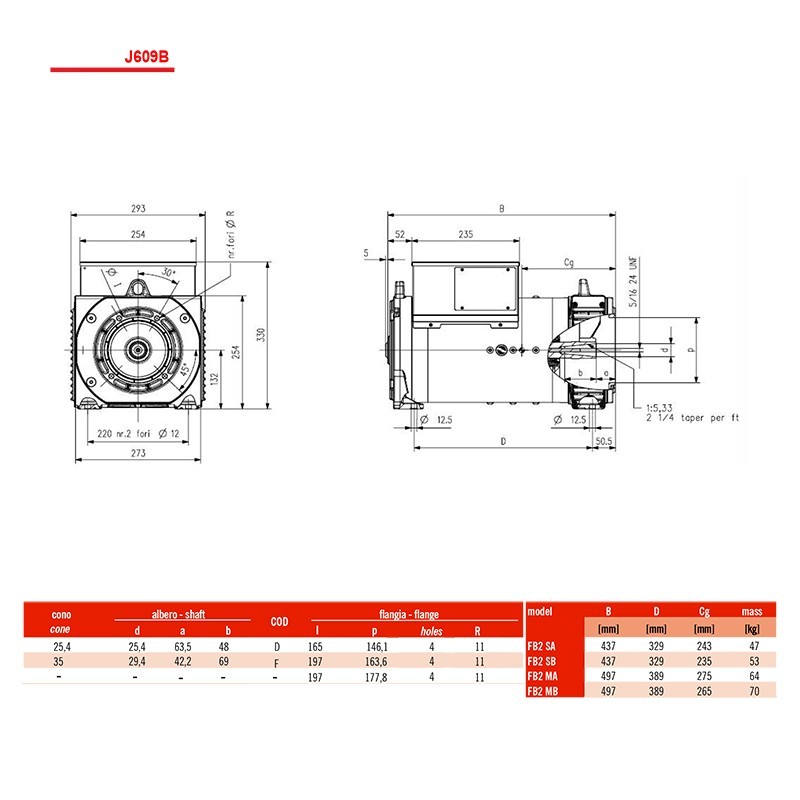

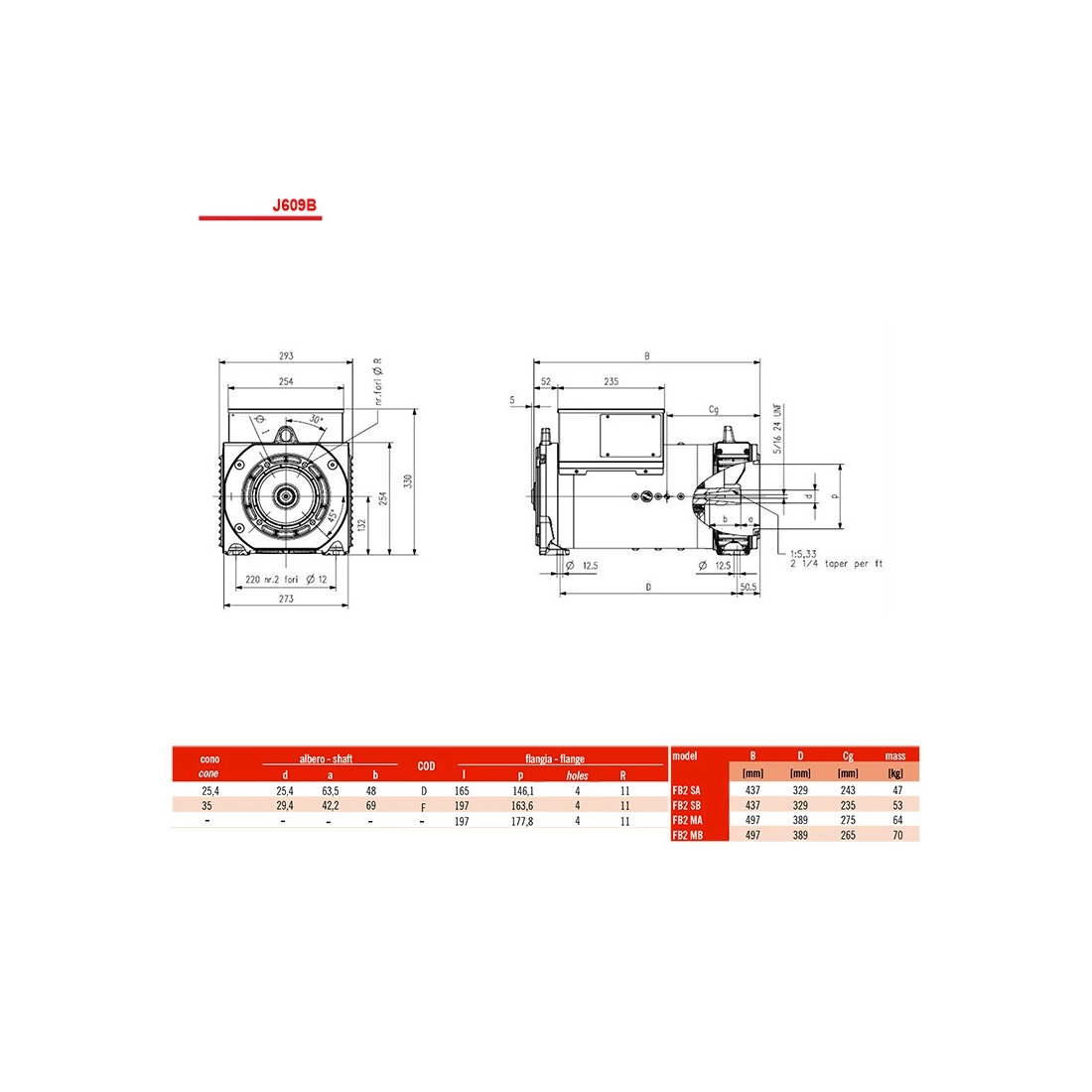

Technical data FB2

(3.36M)
Related Accessories
List price
2.058,14 € tax incl.
1.687,00 € tax excl.
Discounted Price
1.250,50 € tax incl.
1.025,00 € tax excl.
