SINCRO SK225 MS SINGLE-THREE PHASE ALTERNATOR 80KVA AVR

SINCRO SK225 MS SINGLE-THREE PHASE ALTERNATOR 80KVA AVR
search
  • SINCRO SK225 MS SINGLE-THREE PHASE ALTERNATOR 80KVA AVR
  • SINCRO SK225 MS SINGLE-THREE PHASE ALTERNATOR 80KVA AVR
SINCRO
SK225 MS SAE3 d8
New product

Phase: Three Phase
Poles: 4
Voltage (V): 400
Frequency (Hz): 50
Rpm Speed: 1500
Single Phase Output (kVA): ----
Three Phase Output (kVA): 80
Constant Speed Alternator
AVR
Brushless
Weight (Kg): 264
Protection: IP23

Technical features
Phase
Three phase
Frequency (Hz)
50
Voltage (V)
400
Engine rpm (rpm)
1500
Poles
4
Three-phase power (KW)
64
Three-phase power (KVA)
80
Efficiency (%)
90.7
Protection degree
IP23
Details

Three phase brushless alternator - AVR.

- Insulation class H
- IP23
- Standard voltage 400 V - 50 Hz
- Leads 6
- Bearings: Bearings are dimensioned for heavy duty
- Transient features: Transient voltage drop for rated step load at 0.8 power factor is less than 18%
- Tropicalizzation: standard

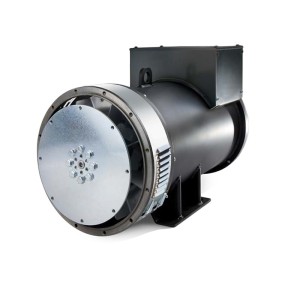

The image is purely indicative.

Technical Sheet / Manuals
icona_scheda

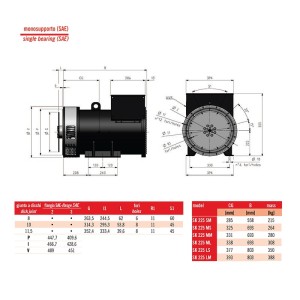

Technical data SK225

(2.18M)
Related Accessories
List price
5.936,52 € tax incl.
4.866,00 € tax excl.
Discounted Price
3.599,00 € tax incl.
2.950,00 € tax excl.
Choose the type of coupling
Ask for availability
Add to wishlist
Download PDF
Ask a question
Product: SINCRO SK225 MS SINGLE-THREE PHASE ALTERNATOR 80KVA AVR
Offer on letterhead
Product: SINCRO SK225 MS SINGLE-THREE PHASE ALTERNATOR 80KVA AVR
Technical features
Phase
Three phase
Frequency (Hz)
50
Voltage (V)
400
Engine rpm (rpm)
1500
Poles
4
Three-phase power (KW)
64
Three-phase power (KVA)
80
Efficiency (%)
90.7
Protection degree
IP23
Details
Technical Sheet / Manuals
icona_scheda

Technical data SK225

(2.18M)
