      FK4 LC Steel J609b c25.4

      Phase: Single Phase
      Poles: 4
      Voltage (V): 230
      Frequency (Hz): 50
      Rpm Speed: 1500
      Single Phase Output (kVA): 10
      Constant Speed Alternator
      Capacitor
      Brushless
      Weight (Kg): 80
      Protection: IP23

      Ask a question
      Offer on letterhead
      Choose the type of coupling :
      Ask for availability
      Download PDF
      Custom Quote
      Product: SINCRO FK4 LC Steel Single Phase Synchronous AC Alternator 10 kVA Capacitor

      PERSONAL DATA

      Ask a question
      Product: SINCRO FK4 LC Steel Single Phase Synchronous AC Alternator 10 kVA Capacitor
      Offer on letterhead
      Product: SINCRO FK4 LC Steel Single Phase Synchronous AC Alternator 10 kVA Capacitor
      SINCRO
      FK4 LC Steel J609b c25.4

      Data sheet

      Phase
      Single phase
      Frequency (Hz)
      50
      Voltage (V)
      230
      Engine rpm (rpm)
      1500
      Poles
      4
      Single-phase power (KW)
      10
      Single-phase power (KVA)
      10
      Efficiency (%)
      83
      Protection degree
      IP23
      Dry weight (Kg)
      80
      Brushes
      No
      Type of alternator
      Constant Speed
      Voltage regulator
      Capacitor

      Specific References

      New

      Single phase brushless alternator - Capacitor.

      - Self-regulated
      - IP23
      - Standard voltage 230 V - 50 Hz
      - Short circuit current greater than 3 In

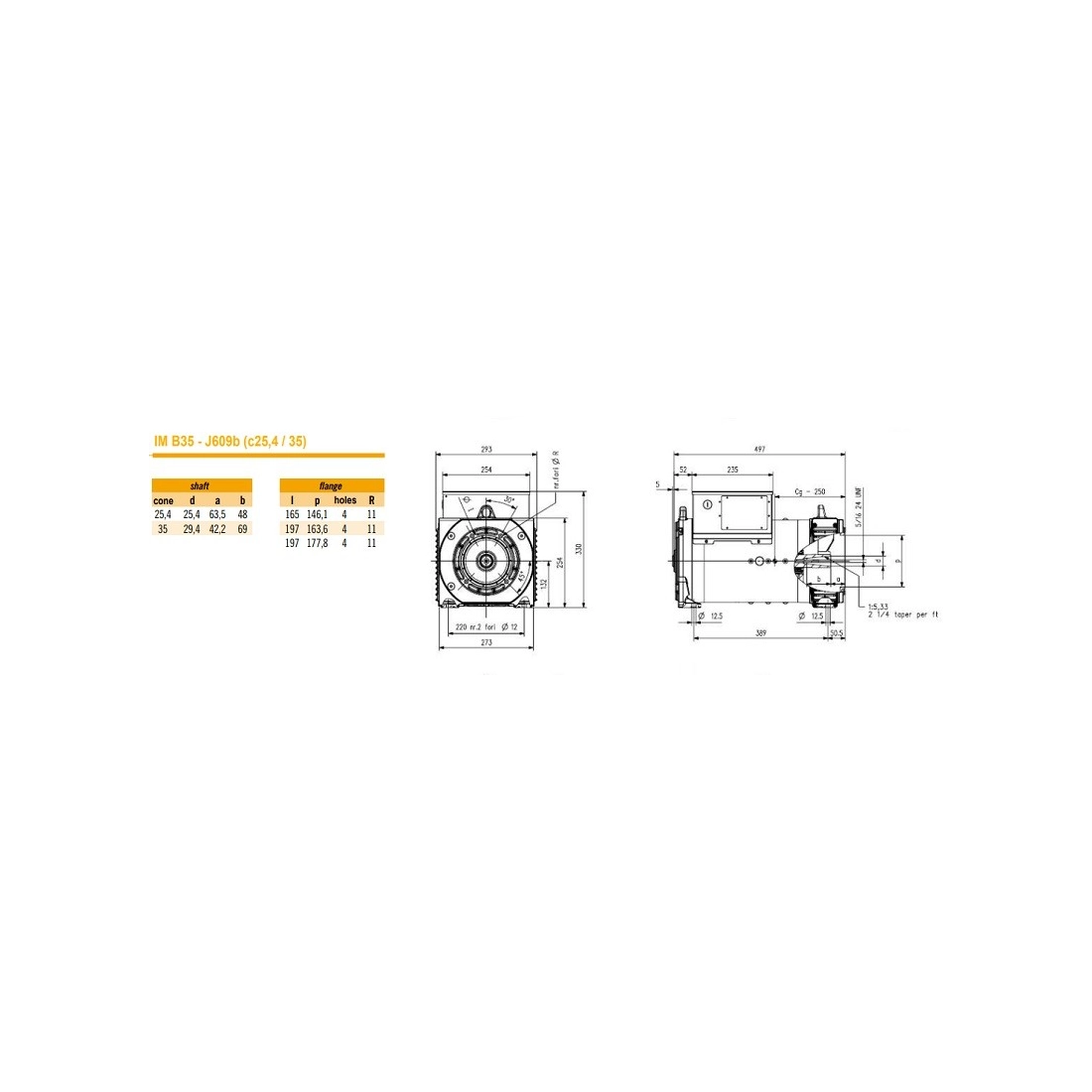

      - Standard coupling IM B35 cone 25.4 / cone 35
      - Couplings IM B34, IM B35, SAE

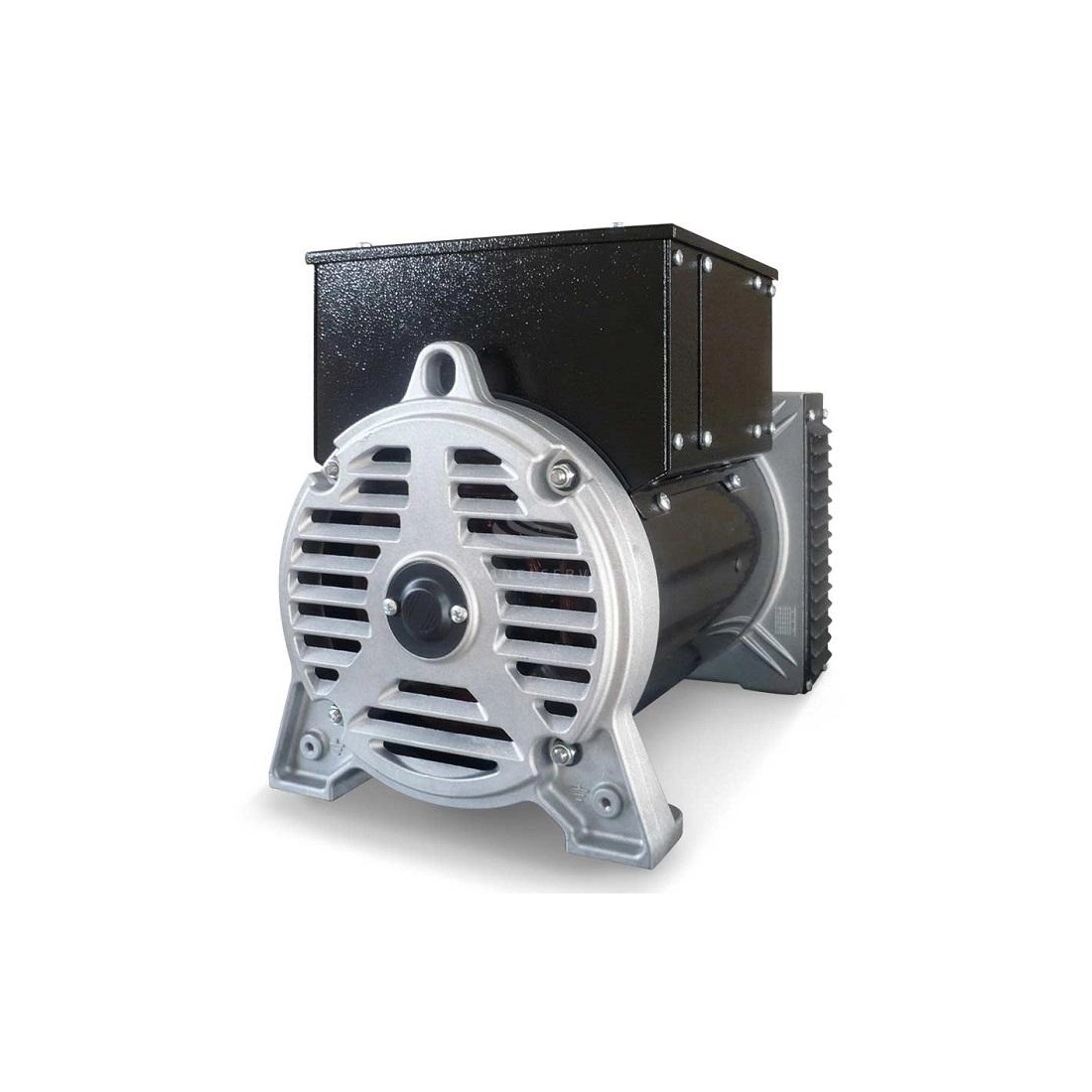

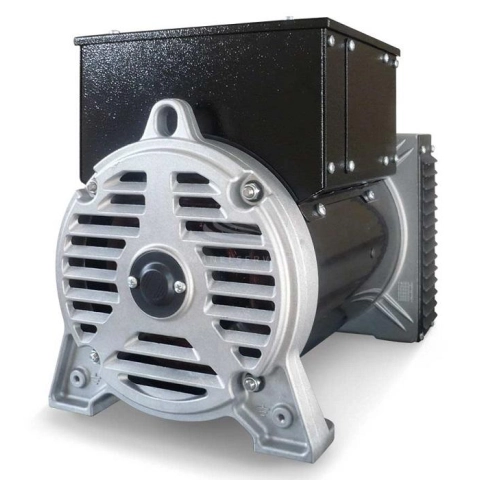

      The image is purely indicative.

      SINCRO IM B34 COUPLINGSINCRO IM B34 COUPLING FOR FK, FK STEEL, GK MODELS
          SINCRO IM B34 COUPLING FOR FK, FK STEEL, GK MODELS
          FOR ALTERNATORS
          IM B34 coupling for FK, FK STEEL, GK models.
          55.00 €Price
          Quick View
          SAE 5, SAE 4 coupling for alternators SINCRO EK, FK, FK STEEL, GK.
              SINCRO SAE 5, SAE 4 COUPLING FOR EK, FK, FK STEEL, GK MODELS
              FOR ALTERNATORS
              SAE 5, SAE 4 coupling for EK, FK, FK STEEL, GK models.
              55.00 €Price
              Quick View
              SAE 3 coupling for alternators SINCRO FK, FK STEEL.
                  SINCRO SAE 3 COUPLING FOR FK, FK STEEL MODELS
                  FOR ALTERNATORS
                  SAE 3 coupling for FK, FK STEEL models.
                  110.00 €Price
                  Quick View
                  B3/B9 coupling (cone 30). | Manel Service
                      SINCRO B3/B9 COUPLING (cone 30)
                      FOR ALTERNATORS
                      B3/B9 coupling (cone 30).
                      0.00 €Price
                      Quick View

                      4 other products in the same category:

                      SINCRO SINGLE PHASE ALTERNATOR FK4

                      SINCRO FK4 LC Steel Single Phase Synchronous AC Alternator 10 kVA Capacitor

                      List price
                      1,941.02 € tax incl.
                      1,591.00 € tax excl.
                      Discounted Price
                      1,176.74 € tax incl.
                      964.54 € tax excl.
