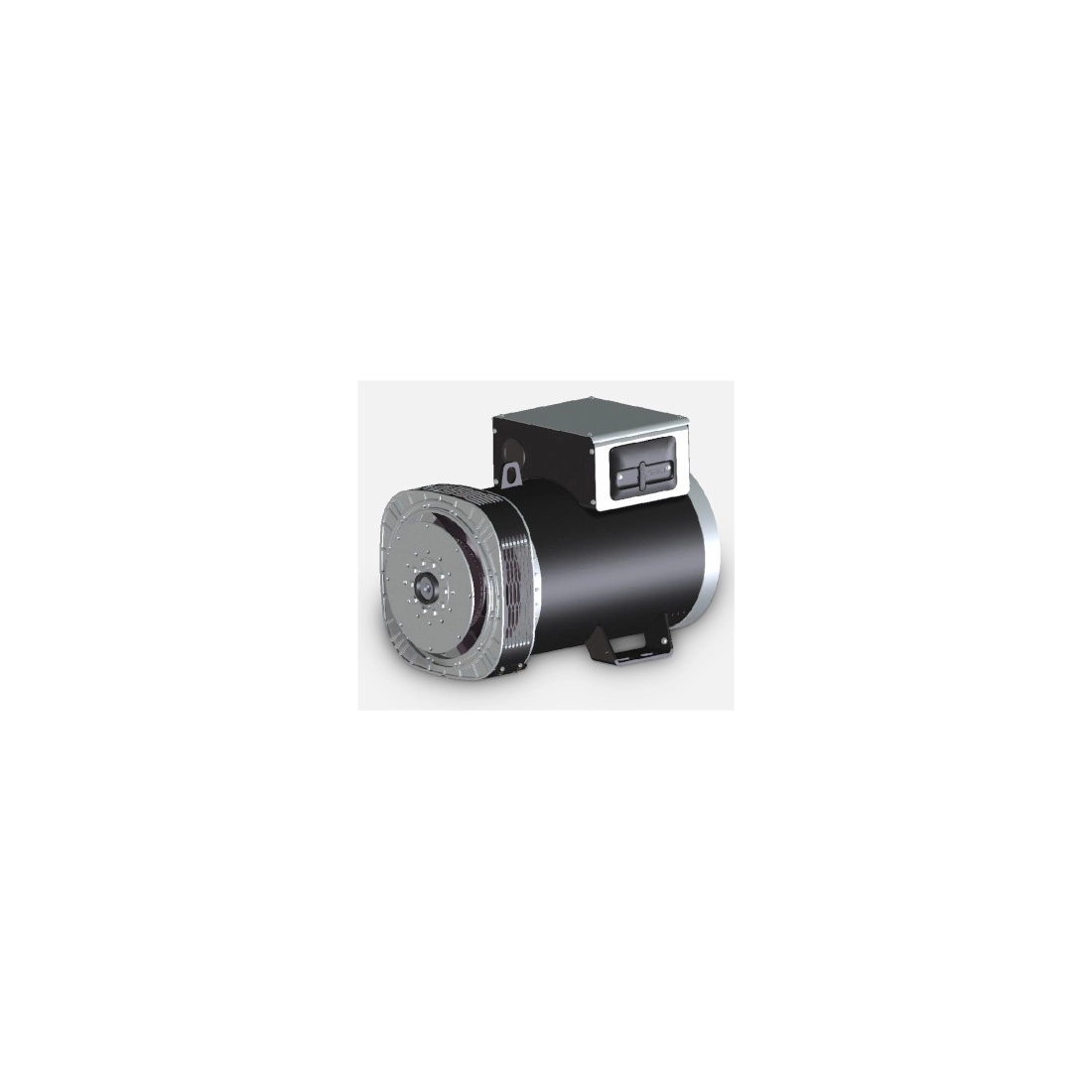

MECC ALTE ECP34-2S/4 C-TYPE THREE PHASE ALTERNATOR 100 KVA AVR
ECP34-2S/4 C B3/B14
Phase Type: Single Phase / Three Phase
Maximum Three Phase Power: 110 KVA / 88 KW
Three Phase Continuous Use Power: 100 KVA / 80 KW
Maximum Single Phase Power: 68 KVA / 68 KW
Single Phase Continuous Use Power: 62 KVA / 62 KW
Frequency: 50 / 60 Hz
Voltage: 230 / 400 V
Protection class: IP23
Alternator speed: 1500 /1800 rpm
Number of poles: 4
Efficiency: 92 %
Weight: 349 Kg
Constant speed alternator
Brushless
Voltage regulator: DSR (AVR)
ECP34-2S/4 C B3/B14
Data sheet
- Phase
- Single phase / Three phase
- Maximum power single phase (KW)
- 68
- Continuous power single phase (KW)
- 62
- Continuous power single phase (KVA)
- 62
- Maximum power three phase (KW)
- 88
- Continuous power three phase (KW)
- 80
- Maximum power three phase (KVA)
- 110
- Continuous power three phase (KVA)
- 100
- Frequency (Hz)
- 50 / 60
- Voltage (V)
- 230 / 400
- Engine rpm (rpm)
- 1500 / 1800
- Poles
- 4
- Single-phase power (KVA)
- 68
- Three-phase power (KVA)
- 110
- Efficiency (%)
- 92
- Protection degree
- IP23
- Acoustic pressure
- 65 dB(A) at 7 m
- Brushes
- No
- PMG
- No
- Type of alternator
- Constant Speed
- Voltage regulator
- AVR
- Weight (Kg)
- 350
Specific References
New
MECC ALTE ECP34-2S/4 C-TYPE
The ECP34 C-Type range has many product features designed into the alternator.
Type C alternators make the most of power conversion to produce the maximum power to size ratio.
C-Type is now one of the easiest alternators to assemble, integrate, configure and maintain with OEM equipment.
Our goal was to provide maximum power from the smallest, lightest and most durable alternators, and the MECC ALTE designers have lavished the C-Type with much more flexibility.
The entire series is built to the most common specifications such as CEI 2-3, IEC 34-1, EN 60034-1, VDE 0530, BS 4999-5000, CAN/CSA-C22.2 No14-95- No100-95.
Immagini e dati tecnici non impegnativi.
