SINCRO ET2 LAR Three Phase Synchronous AC Alternator 8.5 kVA AVR

SINCRO THREE PHASE ALTERNATOR ET2
search
  • SINCRO THREE PHASE ALTERNATOR ET2
  • SINCRO THREE PHASE ALTERNATOR ET2
SINCRO
ET2 LAR J609b c22.14
New product

Phase: Three Phase
Poles: 2
Voltage (V): 230 / 400
Frequency (Hz): 50
Rpm Speed: 3000
Three Phase Output (kVA): 8.5
Constant Speed Alternator
AVR
Brushes
Weight (Kg): 36.8
Protection: IP23

Technical features
Phase
Three phase
Frequency (Hz)
50
Voltage (V)
230 / 400
Engine rpm (rpm)
3000
Poles
2
Three-phase power (KW)
6.8
Three-phase power (KVA)
8.5
Efficiency (%)
81
Protection degree
IP23
Dry weight (Kg)
34
Brushes
Yes
Type of alternator
Constant Speed
Voltage regulator
AVR
Details

Three phase brushes alternator - AVR.

- Self-regulated
- IP23
- Standard voltage 230/400 V - 50 Hz
- Short circuit current greater than 3 In
- Standard coupling IM B35 cone 22.14 / cone 25.4 / cone 35
- Couplings IM B34, IM B35, SAE

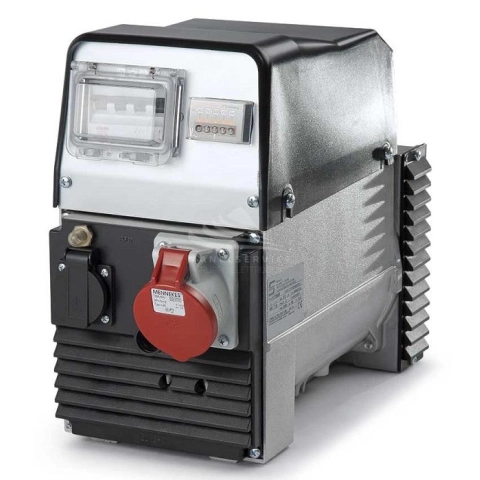

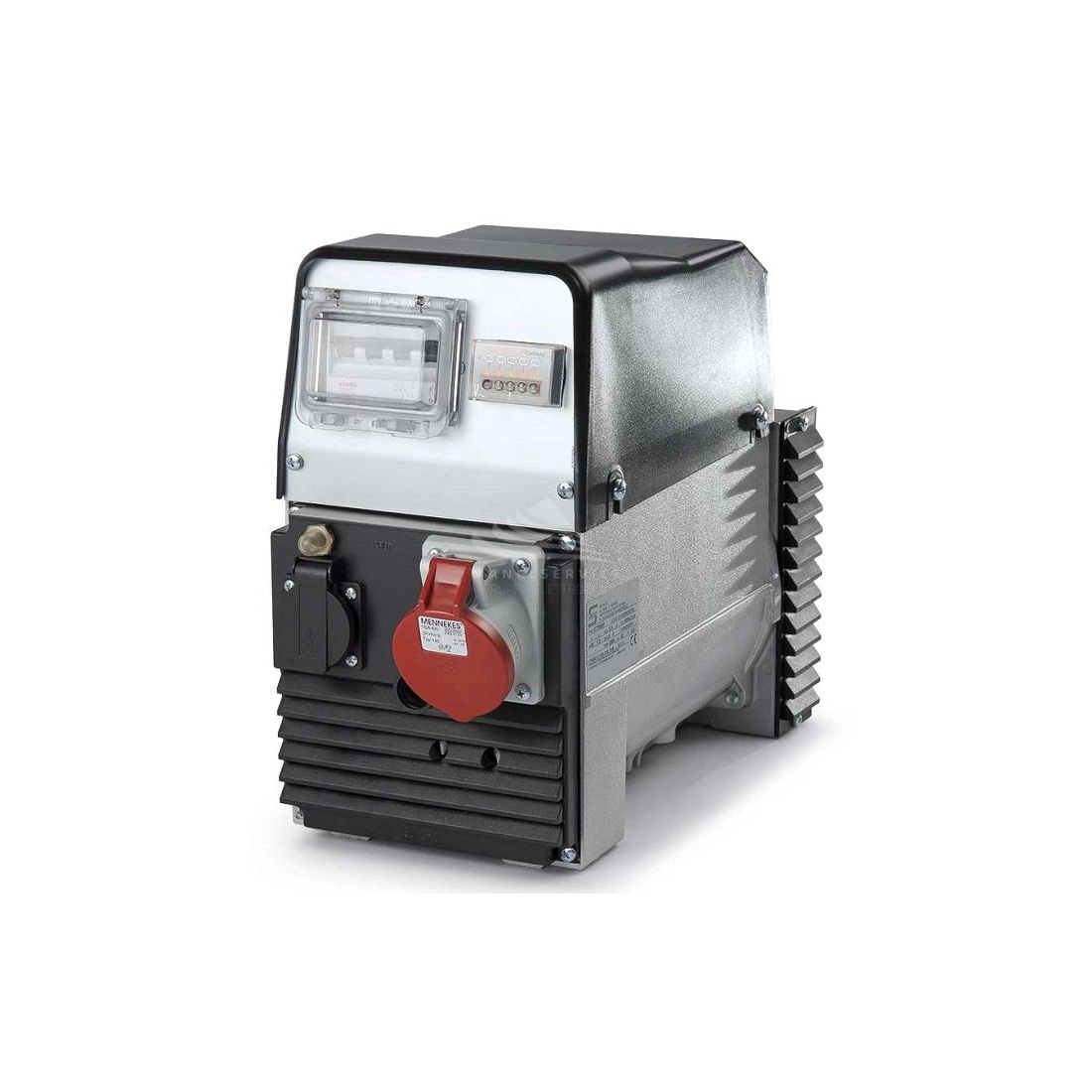

The image is purely indicative.

* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
