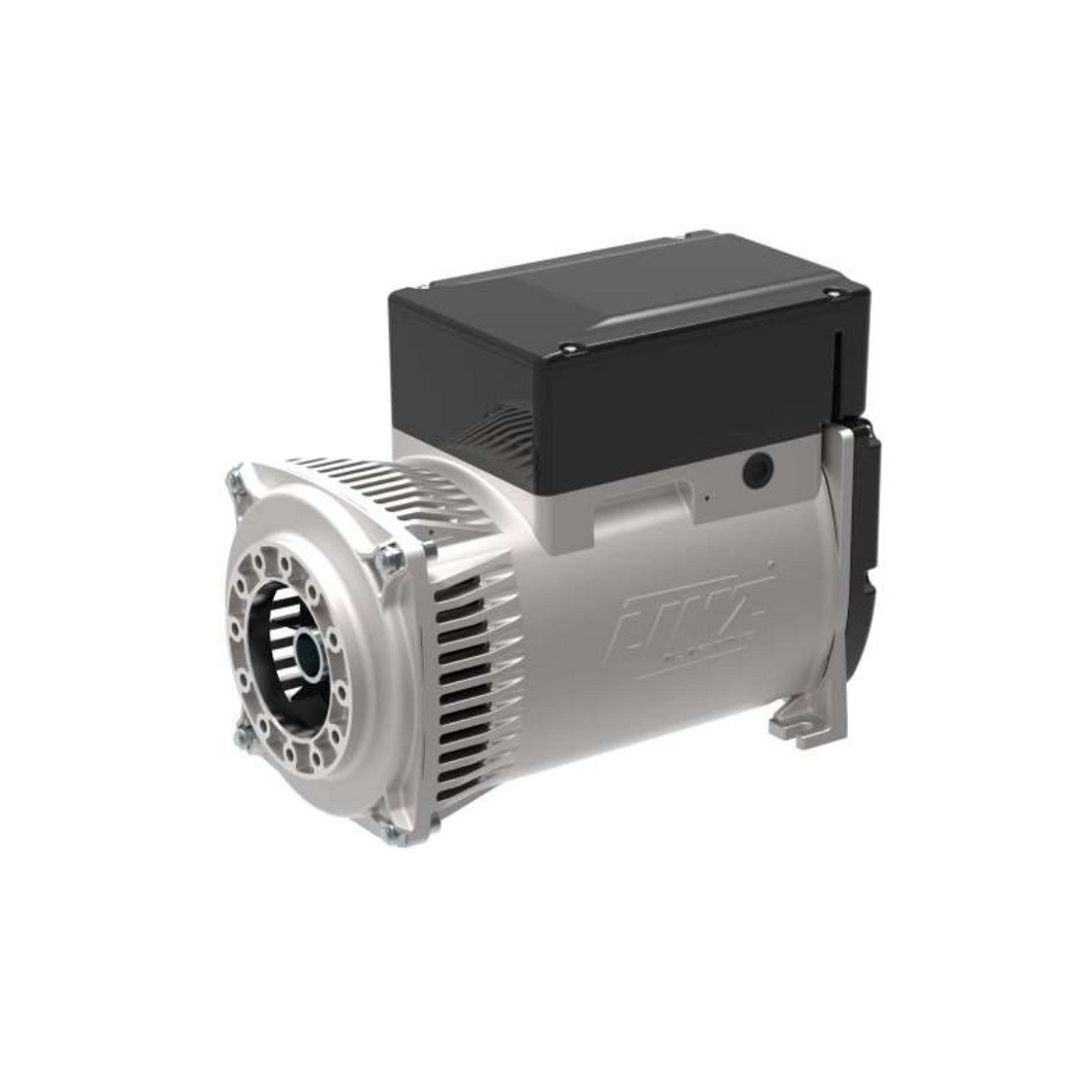

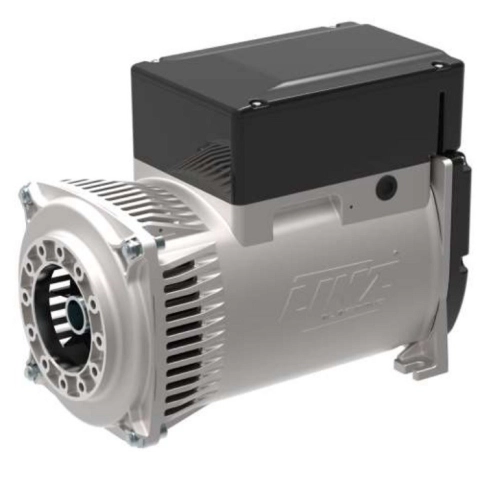

LINZ E1S11M B KE Three-phase alternator 277V/480V 14 kVA 60 Hz AVR + Compound

LINZ E1S11M B KE Three-phase alternator 277V/480V 14 kVA 60 Hz AVR + Compound
search
  • LINZ E1S11M B KE Three-phase alternator 277V/480V 14 kVA 60 Hz AVR + Compound
  • LINZ E1S11M B KE Three-phase alternator 277V/480V 14 kVA 60 Hz AVR + Compound
LINZ ELECTRIC
E1S11M B KE 60 Hz J609b
New product

Rated power at 60 Hz (kVA): 14
Rated power factor: 0.8
Rated temperature (°C): 40
Control system: self-excited
Design: brushes
Type of regulation: AVR + compound
Insulation class: H
Protection: IP21
Maximum excess travel speed (rpm): 4500
110% overload of rated power for one hour in a 6-hour cycle
Airflow requirement (m3/min): 5.8 at 60 Hz
Suppression standard R.F.F.I. EN55011

Technical features
Phase
Three phase
Continuous power three phase (KW)
11.2
Continuous power three phase (KVA)
14
Frequency (Hz)
60
Voltage (V)
277 / 480
Engine rpm (rpm)
3600
Alternator
Synchronous
Poles
2
Single-phase power (KVA)
14
Protection degree
IP21
Motor insulation class
H
Length (mm)
415
Width (mm)
230
Height (mm)
325
Brushes
Yes
Type of alternator
Constant Speed
Voltage regulator
AVR+Compound
Weight (Kg)
51.5
Details

E1S-KE series are three-phase 2 poles alternators with brushes and mixed regulation: compound and electronic (AVR).

CHARACTERISTICS

  • Possibility to feed any type of load
  • Compact and easy to assemble
  • High starting capacity
  • High efficiency
  • Type: Three-phase alternators
  • Poles: 2
  • Phases: Three-phase
  • Regulation: COMPOUND AND AVR
  • Application: PORTABLE

Technical Sheet / Manuals
Related Accessories
List price
1.277,34 € tax incl.
1.047,00 € tax excl.
Discounted Price
1.021,35 € tax incl.
837,17 € tax excl.
Choose the type of coupling
Ask for availability
Add to wishlist
Download PDF
Ask a question
