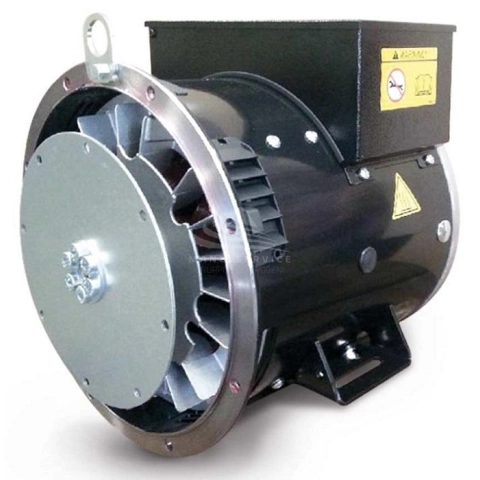

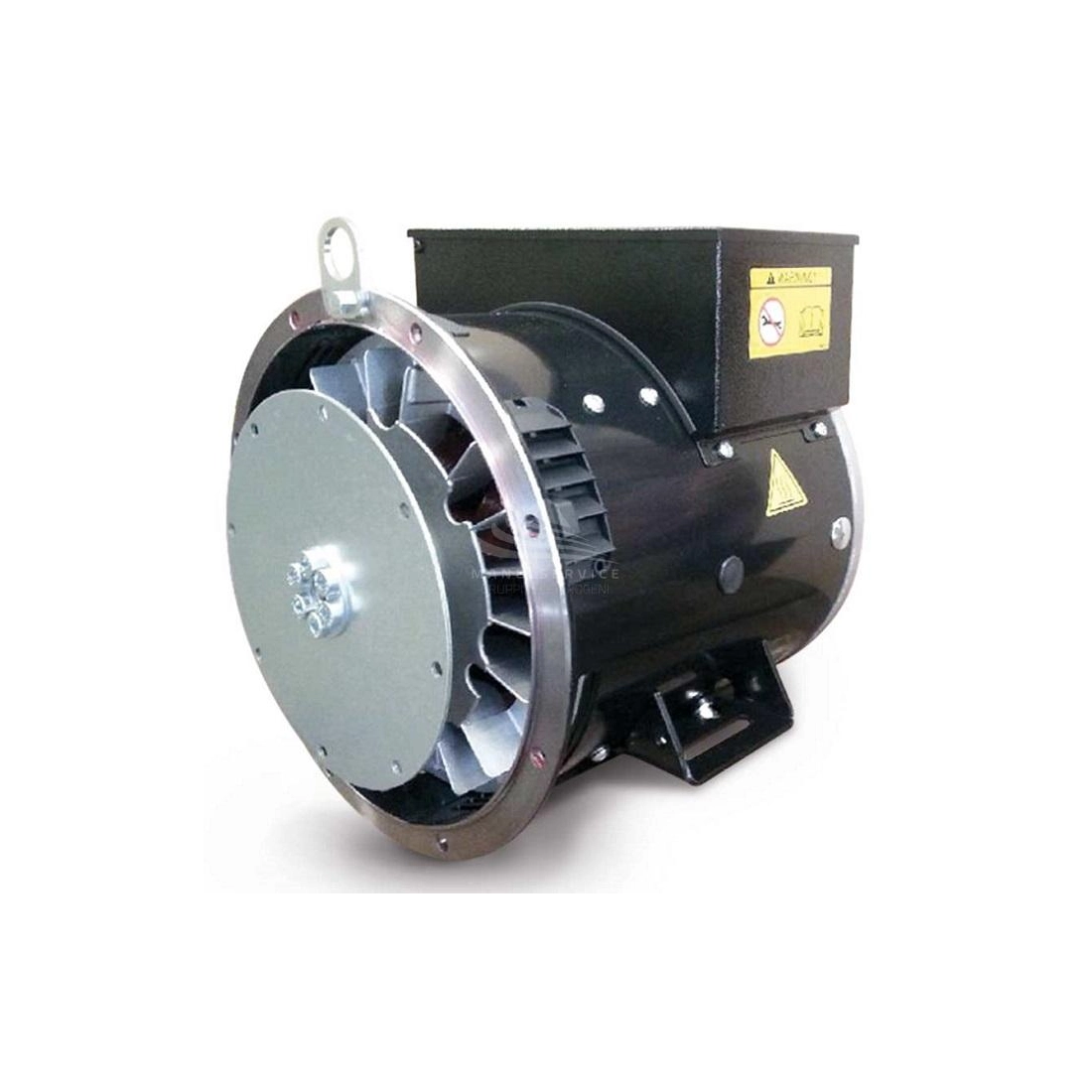

SINCRO SK160 LA2 SINGLE-THREE-PHASE ALTERNATOR 28KVA AVR

SK160 LA2 SAE5 d6.5
      SINCRO SK160 LA2 SINGLE-THREE-PHASE ALTERNATOR 28KVA AVR
      SINCRO SK160 LA2 SINGLE-THREE-PHASE ALTERNATOR 28KVA AVR

      Phase: Single / Three Phase
      Poles: 2
      Voltage (V): 230 / 400
      Frequency (Hz): 50
      Rpm Speed: 3000
      Single Phase Output (kVA): 16.8
      Three Phase Output (kVA): 28
      Constant Speed Alternator
      AVR
      Brushless
      Weight (Kg): 97
      Protection: IP23

      List price
      3,022.55 € tax incl.
      2,477.50 € tax excl.
      Discounted Price
      1,836.10 € tax incl.
      1,505.00 € tax excl.
      Ask a question
      Offer on letterhead
      Choose the type of coupling :
      Ask for availability
      Download PDF
      Ask a question

      I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

      Offer on letterhead
      SINCRO
      SK160 LA2 SAE5 d6.5

      Data sheet

      Phase
      Single phase / Three phase
      Frequency (Hz)
      50
      Voltage (V)
      230 / 400
      Engine rpm (rpm)
      3000
      Poles
      2
      Single-phase power (KW)
      13.44
      Single-phase power (KVA)
      16.8
      Three-phase power (KW)
      22.4
      Three-phase power (KVA)
      28
      Efficiency (%)
      84.2
      Protection degree
      IP23
      Brushes
      No
      Type of alternator
      Constant Speed
      Voltage regulator
      AVR
      Weight (Kg)
      97

      Specific References

      New

      Three phase brushless alternator - AVR.

      - Insulation class H
      - IP23
      - Standard voltage 230/400 V - 50 Hz
      - Leads 6
      - Bearings: Bearings are dimensioned for heavy duty
      - Transient features: Transient voltage drop for rated step load at 0.8 power factor is less than 18%
      - Single-phase operation: IB4 alternators can be connected for single-phase use
      - Tropicalizzation: standard

      Not binding images and technical data.

      * Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
