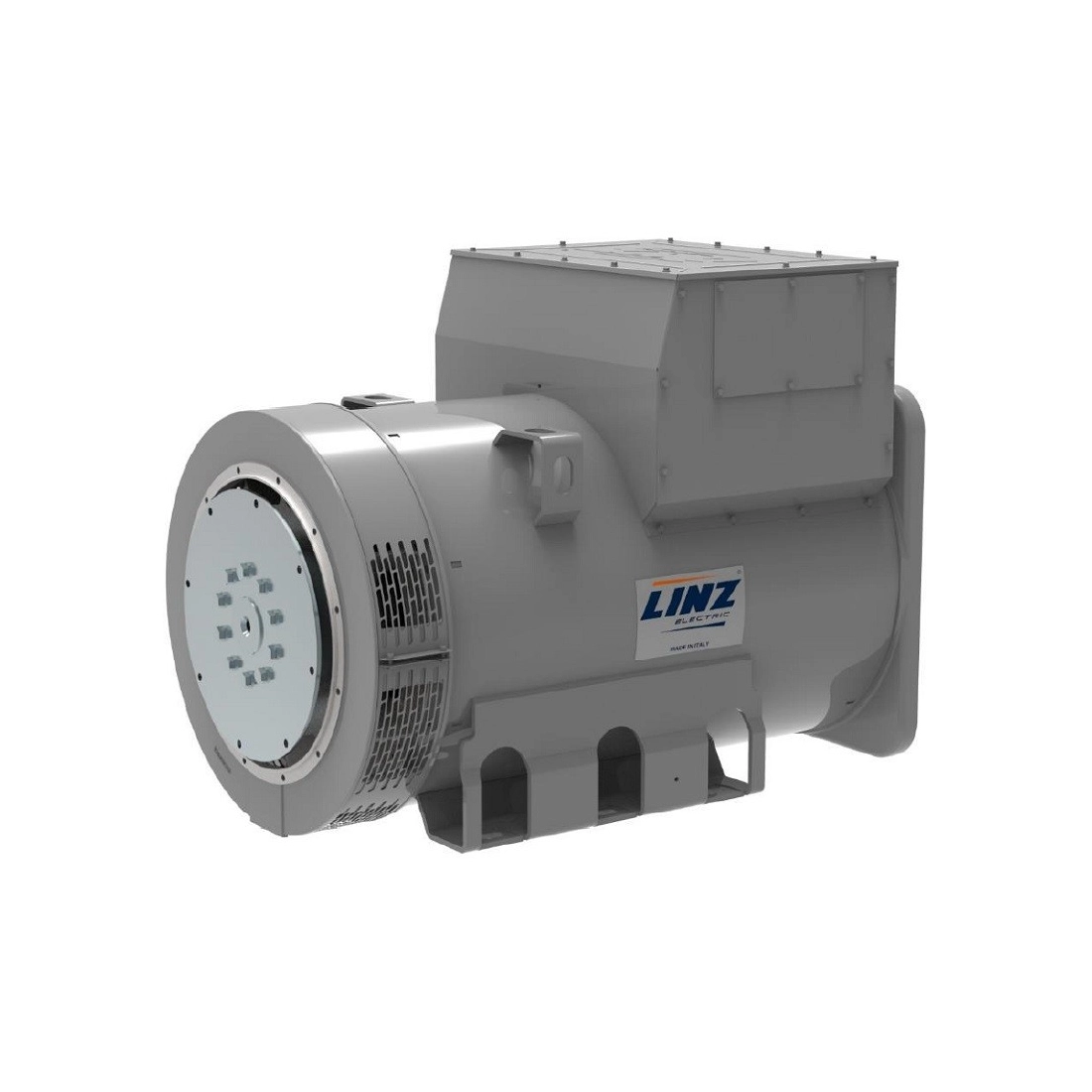

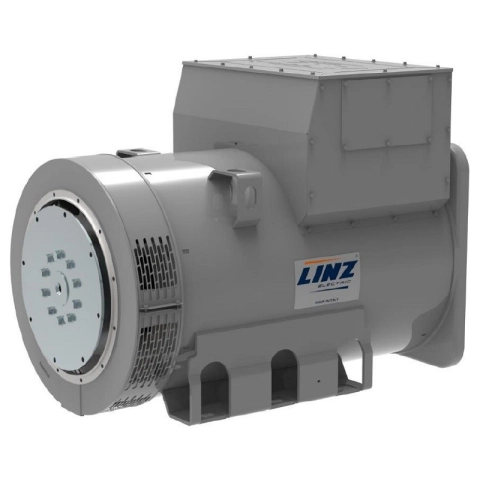

LINZ PRO35L H/4 Three-phase alternator 4 poles 960 kVA 60 Hz AVR

  • New
LINZ PRO35L H/4 Three-phase alternator 4 poles 800 kVA 50 Hz AVR
search
  • LINZ PRO35L H/4 Three-phase alternator 4 poles 800 kVA 50 Hz AVR
  • LINZ PRO35L H/4 Three-phase alternator 4 poles 800 kVA 50 Hz AVR
LINZ ELECTRIC
PRO35L H/4 60 Hz SAE1 d14
New product

Rated power at 60 Hz (kVA): 960
Rated power factor: 0.8
Rated temperature (°C): 40
Control system: self-excited
Design: brushless
Type of regulation: AVR
Insulation class: H
Protection: IP23
Maximum excess travel speed (rpm): 2250
110% overload of rated power for one hour in a 6-hour cycle
Suppression standard R.F.F.I. EN55011
6 wires winding


Technical features
Phase
Three phase
Continuous power three phase (KVA)
960
Frequency (Hz)
60
Voltage (V)
230 / 400
Engine rpm (rpm)
1800
Alternator
Synchronous
Poles
4
Three-phase power (KVA)
800
Protection degree
IP23
Motor insulation class
H

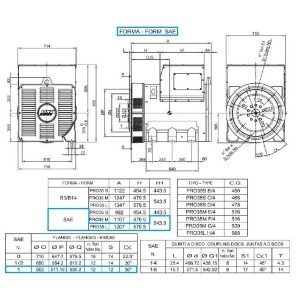

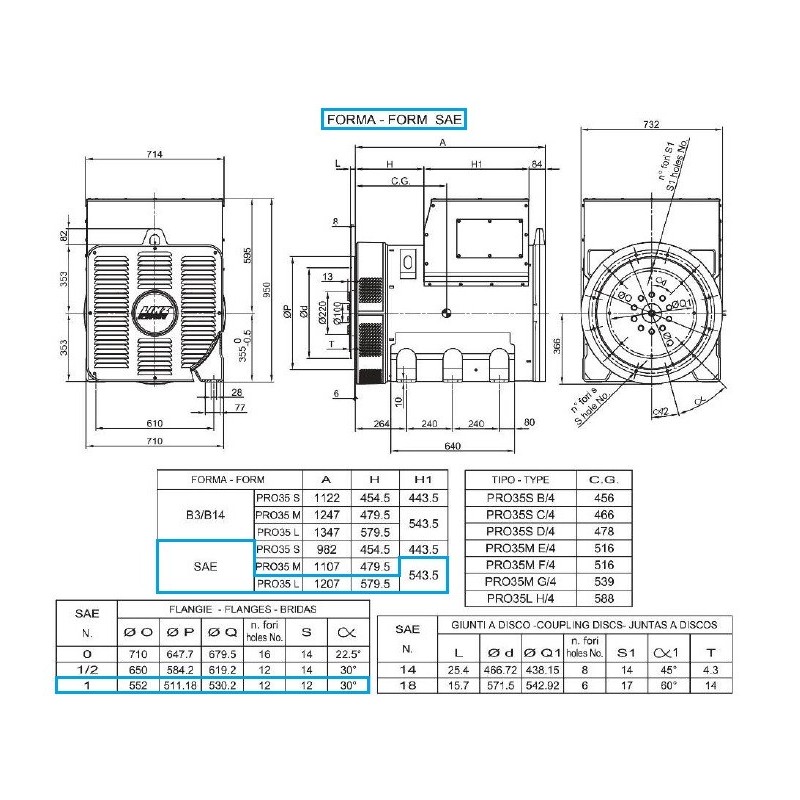

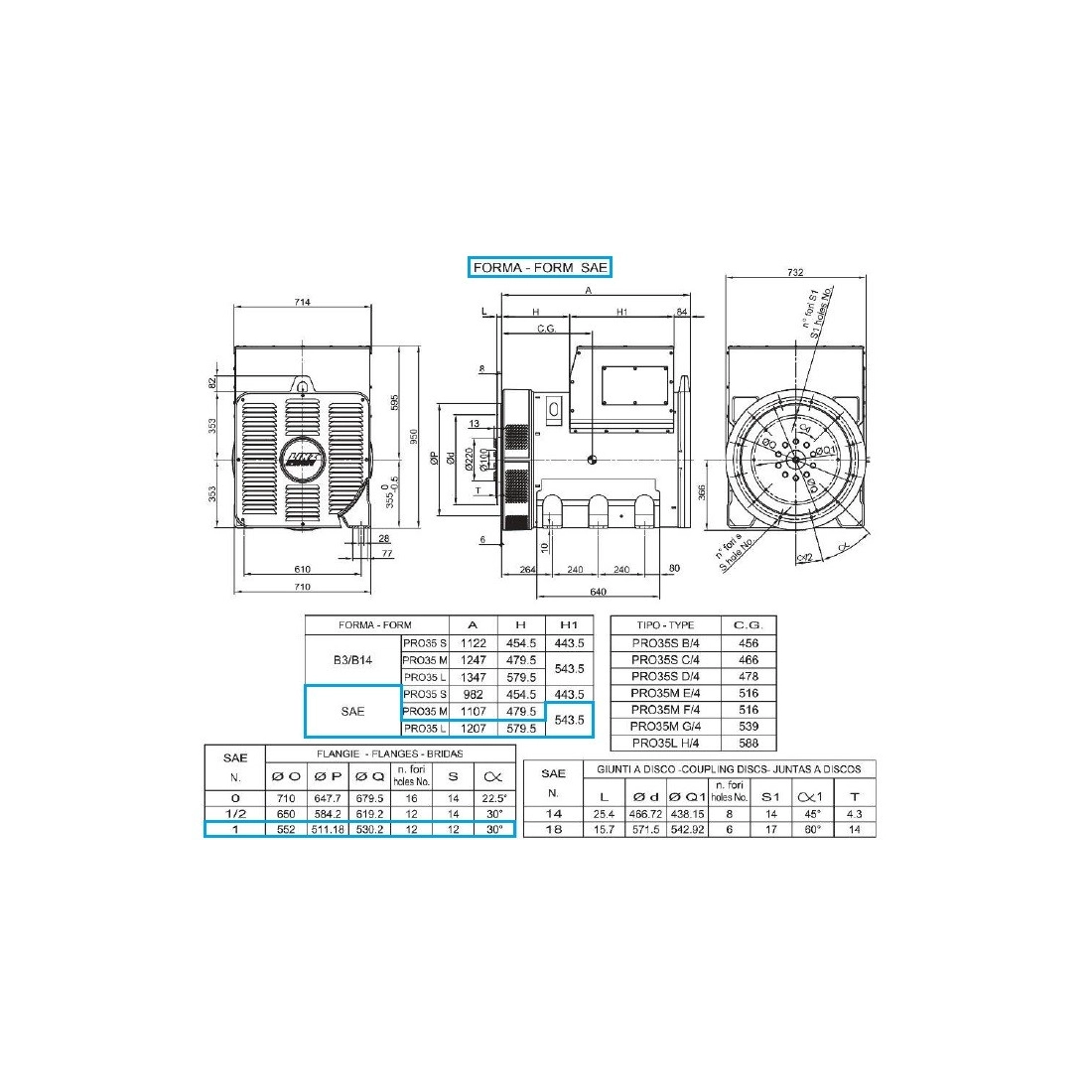

Length (mm)
1207
Width (mm)
732
Height (mm)
950
Brushes
No
PMG
Optional
Type of alternator
Constant Speed
Voltage regulator
AVR
Weight (Kg)
1867
Details

The alternators of PRO series are three-phase brushless 4 poles with electronic regulation (AVR) with single-phase sensing (PRO18-PRO22) and three-phase sensing (PRO28-PRO35-PRO40).

CHARACTERISTICS

  • Compact and mechanically resistant
  • Excellent wave form
  • Minimum maintenance
  • High efficiency
  • Type: Three-phase alternators
  • Poles: 4
  • Phases: Three-phase
  • Regulation: AVR
  • Application: INDUSTRIAL, COGENERATION

Related Accessories
List price
30.726,92 € tax incl.
25.186,00 € tax excl.
Discounted Price
17.664,32 € tax incl.
14.478,95 € tax excl.
Choose the type of coupling
Ask for availability
Add to wishlist
Download PDF
Ask a question
