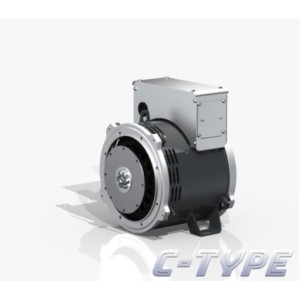

MECC ALTE NPE 32-L/4 C-TYPE THREE PHASE ALTERNATOR 27.5 KVA AVR

NPE 32-L/4 C-TYPE SAE3 d6.5
      MECC ALTE NPE 32-L/4 C-TYPE THREE PHASE ALTERNATOR 27.5 KVA AVR
      MECC ALTE NPE 32-L/4 C-TYPE THREE PHASE ALTERNATOR 27.5 KVA AVR
      MECC ALTE NPE 32-L/4 C-TYPE THREE PHASE ALTERNATOR 27.5 KVA AVR
      MECC ALTE NPE 32-L/4 C-TYPE THREE PHASE ALTERNATOR 27.5 KVA AVR

      Phase type: Single-phase / Three-phase
      Maximum three-phase power: 27.5 KVA
      Maximum single phase power: 20 KVA
      Frequency: 50 Hz
      Voltage: 115/200/230/400V
      Degree of protection: IP21
      Alternator revolutions: 1500 rpm
      Number of poles: 4
      Yield: 81.8%
      Weight: 120 Kg
      Constant speed alternator
      Without brushes
      Voltage regulator: AVR (DSR)

      Prezzo
      3,035.40 € tax excl.
      3,703.19 € tax incl.
      Choose the type of coupling :
      Download PDF
      Ask a question

      I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

      Offer on letterhead
      MECC ALTE
      NPE 32-L/4 C-TYPE SAE3 d6.5

      Data sheet

      Phase
      Single phase / Three phase
      Maximum power single phase (KVA)
      20
      Maximum power three phase (KVA)
      27.5
      Frequency (Hz)
      50 / 60
      Voltage (V)
      230 / 400
      Engine rpm (rpm)
      1500
      Poles
      4
      Single-phase power (KVA)
      20
      Three-phase power (KVA)
      27.5
      Efficiency (%)
      81.8
      Protection degree
      IP21
      Acoustic pressure
      58 dB(A) at 7 m
      Length (mm)
      360
      Width (mm)
      400
      Height (mm)
      523
      Brushes
      No
      PMG
      No
      Type of alternator
      Constant Speed
      Voltage regulator
      AVR
      Weight (Kg)
      120
      Precision of voltage regulation
      ± 1%

      Specific References

      New

      MECC ALTE NPE 32-L/4 C-TYPE THREE PHASE ALTERNATOR 27.5 KVA AVR

      MECC ALTE NPE 31-B/2 THREE PHASE ALTERNATOR 10.5 KVA AVR

      The NPE32 range has many product features designed into the alternator.
      C-Type alternators make the most of energy conversion to produce the maximum power to size ratio.
      C-Type is now one of the simplest alternators to assemble, integrate, configure and maintain with OEM equipment.
      Our aim was to deliver maximum power from the smallest, lightest and strongest alternators and our designers have lavished the C-Type with much more flexibility.
      The entire series is manufactured according to, and complies with, the most common specifications such as CEI 2-3, IEC 34-1, EN 60034-1, VDE 0530, BS 4999-5000, CAN/ CSA-C22.2 No14-95- No100-95.



      Not binding images and technical data.

      * Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
