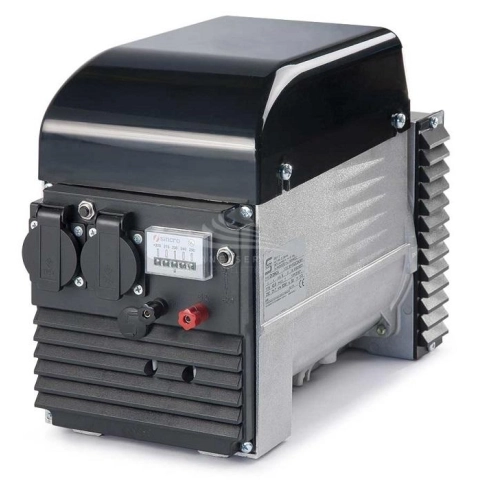

SINCRO EK2 LAA ALTERNATOR 6,0 KVA SINGLE-PHASE

Alternator SINCRO EK2 LAA single phase with a power of 6,0KVA, this unit has a Brush operation equipped with AVR voltage regulator.

The alternator is designed for operation at frequency 50 or 60 HZ, the possibility of working on these two frequencies makes it possible to apply for any service voltage increasing its versatility, for the correct operation. SINCRO EK2 LAA has been realized with the body entirely in steel, this makes the alternator very resistant and suitable for heavy duty use.

All components that make up the SINCRO EK2 LAA alternator undergo a special coating and/or impregnation process to safeguard generator functionality and protect critical peers under a variety of operating conditions.

SINCRO alternators are all equipped with voltage regulators, in the case of the EK2 LAA AVR model.

The voltage regulator is an electronic device that regulates the alternating current coming from the alternator and converts it into direct current.

The voltage regulator is an electronic device that regulates the alternating current coming from the alternator and converts it into direct current.

In our field voltage regulators are widely used in the latest generation of synchronous generators.

All synchronous machines need an electronic control system to work, and this device, known as "voltage regulator" or "AVR" (acronym of Automatic Voltage Regulator), guarantees the good working of the machine and above all of the electric network underneath it.

Select the alternator that reflects thetechnical specifications you require, visit our dedicated section to understand how.

SINCRO EK2 LAA TECHNICAL SPECIFICATIONS

Phase Type: Single-phase
Maximum singlephase output: 6.0 KW
Maximum singlephase continuous output: 4.8 KW
Maximum singlephase output: 7.5 KVA
Maximum singlephase continuous output: 6.0 KVA
Frequency: 50-60 Hz
Voltage: 230 V
Protection class: IP23
Alternator speed: 3000 rpm
Number of poles: 2
Weight: 31.1 Kg
With Brushes
Voltage regulator: AVR
Type of alternator: constant speed

Looking for a product with different features? Here you can find the full range SINCRO and other specialized brands.

Images and technical data are not binding and subject to change by the manufacturer
