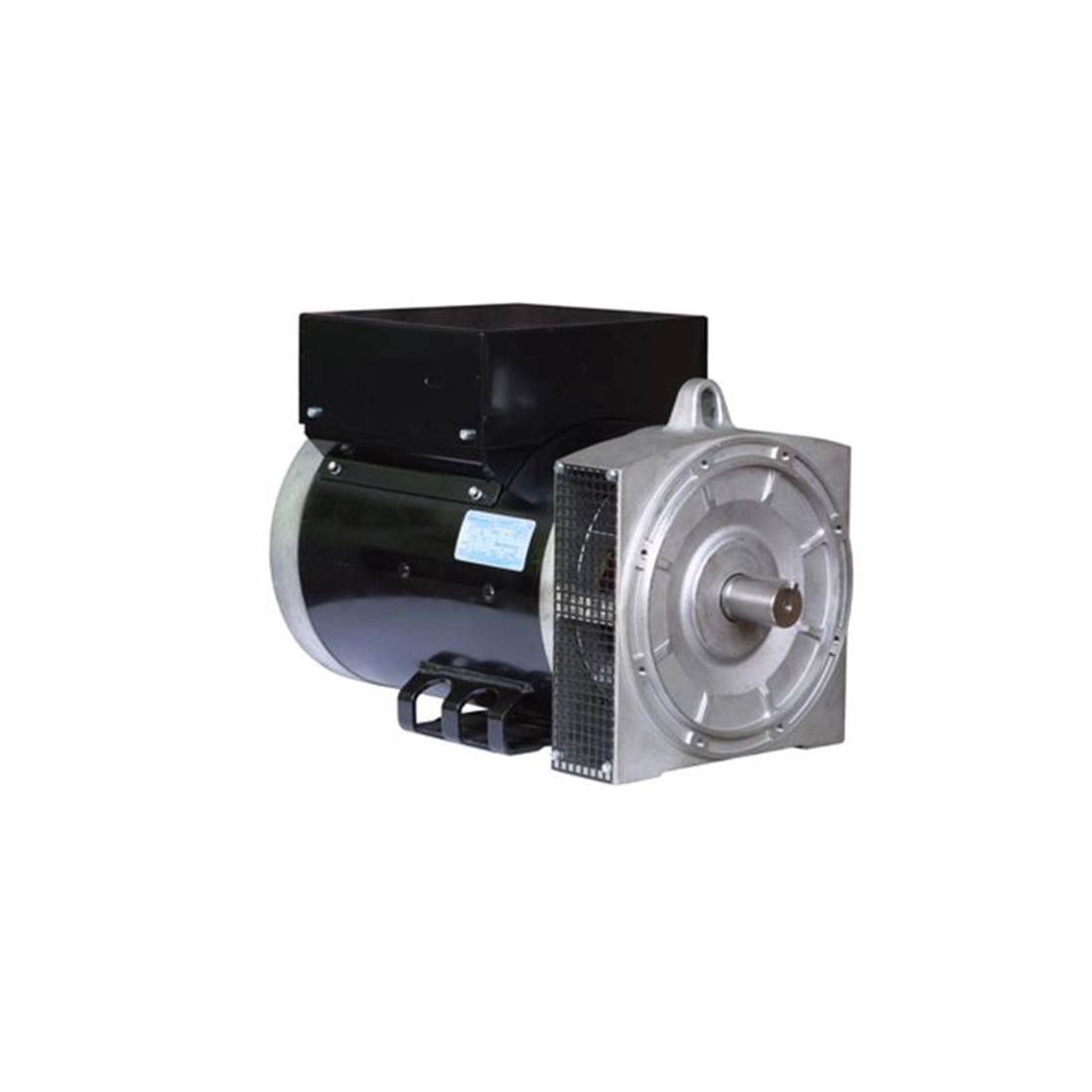

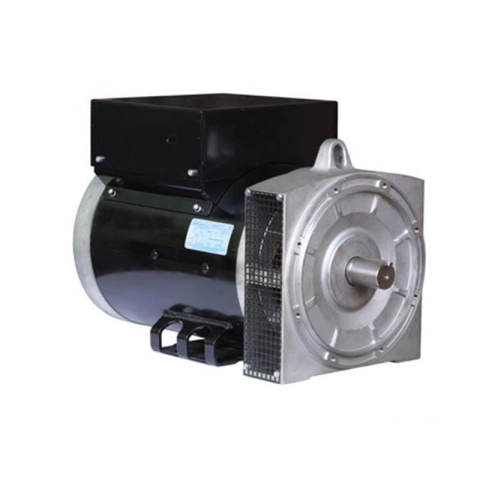

Zanardi THREE-PHASE AC Alternator WITH BRUSH AND MIXING ADJUSTMENT, 4 POLES, 1500- REV/MIN.

Zanardi Three-Phase Alternator with Brush and Compound Regulation: A Robust and Reliable Electric Heart

The Zanardi alternator is a fundamental component of an electrical power generation system.

Its technical characteristics allow us to draw a precise profile of it:

Main Features:

Three-phase and single-phase: The alternator is able to supply both three-phase and single-phase current, offering great versatility of use.

Power: With a three-phase power rating of 20 kVA (16 kW) and a single-phase power rating of 13 kVA, this alternator can power a wide range of electrical equipment.

4 Poles: The presence of 4 poles results in a rotation speed of 1500 rpm, a common value for many types of alternators.

Frequency: The frequency of 50 Hz is the standard used in most electrical networks in Europe.

Voltage: The alternator can supply both 230V and 400V voltages, adapting to different power requirements.

Technical characteristics:

Phase type: Three-phase / Single-phase
Three-phase power (kVA): 20
Three-phase power (kW): 16
Single-phase power (kVA): 13
Frequency: 50 Hz
Voltage: 230V - 400V
compound
Weight: 91 Kg
1500 R.P.M.
Poles: 4
Acoustic pressure: 57 dB(A) at 7 mt
Length: 4277 mm
Width: 4030 mm
Height: 4502 mm

if you are looking for a product with similar characteristics CLICK HERE.

images and data purely indicative.
