      E1C13S D/4 J609b 50 Hz

      Rated power at 50Hz (kVA): 9
      Rated power factor: 1
      Rated temperature (°C): 40
      Control system: self-excited
      Design: brushless
      Type of regulation: capacitor
      Insulation class: H
      Protection: IP21
      1500 rpm
      Maximum excess travel speed (rpm): 2250
      110% overload of rated power for one hour in a 6-hour cycle
      Airflow requirement (m3/min): 4.9 at 50Hz
      Suppression standard R.F.F.I. EN55011

      List price
      1,343.22 € tax incl.
      1,101.00 € tax excl.
      Discounted Price
      1,079.57 € tax incl.
      884.89 € tax excl.
      Choose the type of coupling :
      Download PDF
      Custom Quote

      PERSONAL DATA


      Ask a question

      I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

      Offer on letterhead
      LINZ ELECTRIC
      E1C13S D/4 J609b 50 Hz

      Data sheet

      Phase
      Single phase
      Continuous power single phase (KW)
      9
      Continuous power single phase (KVA)
      9
      Frequency (Hz)
      50
      Voltage (V)
      115 / 230
      Engine rpm (rpm)
      1500
      Alternator
      Synchronous, brushless
      Poles
      4
      Single-phase power (KVA)
      9
      Protection degree
      IP21
      Motor insulation class
      H

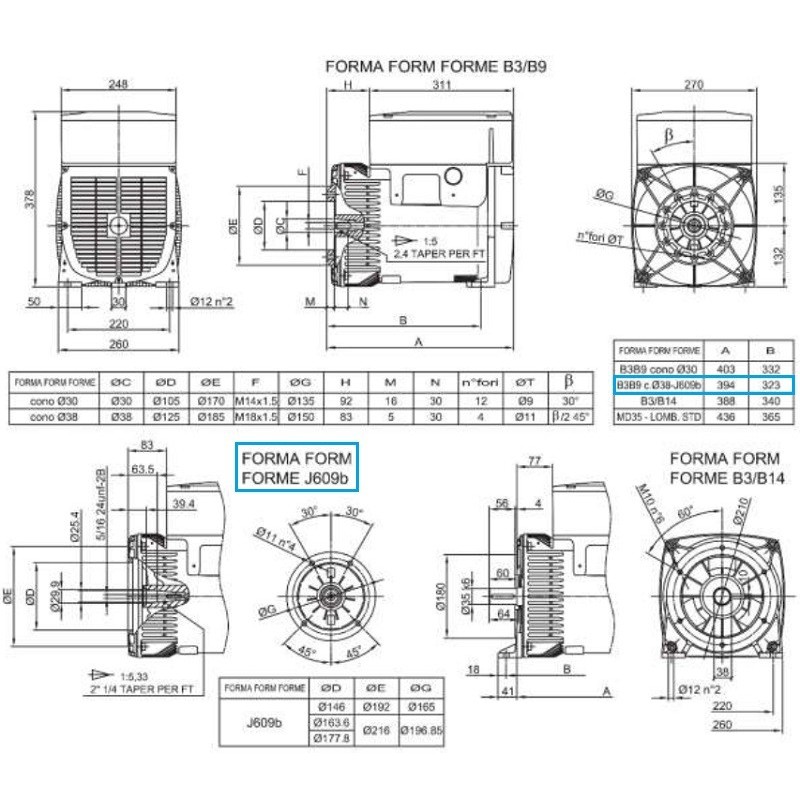

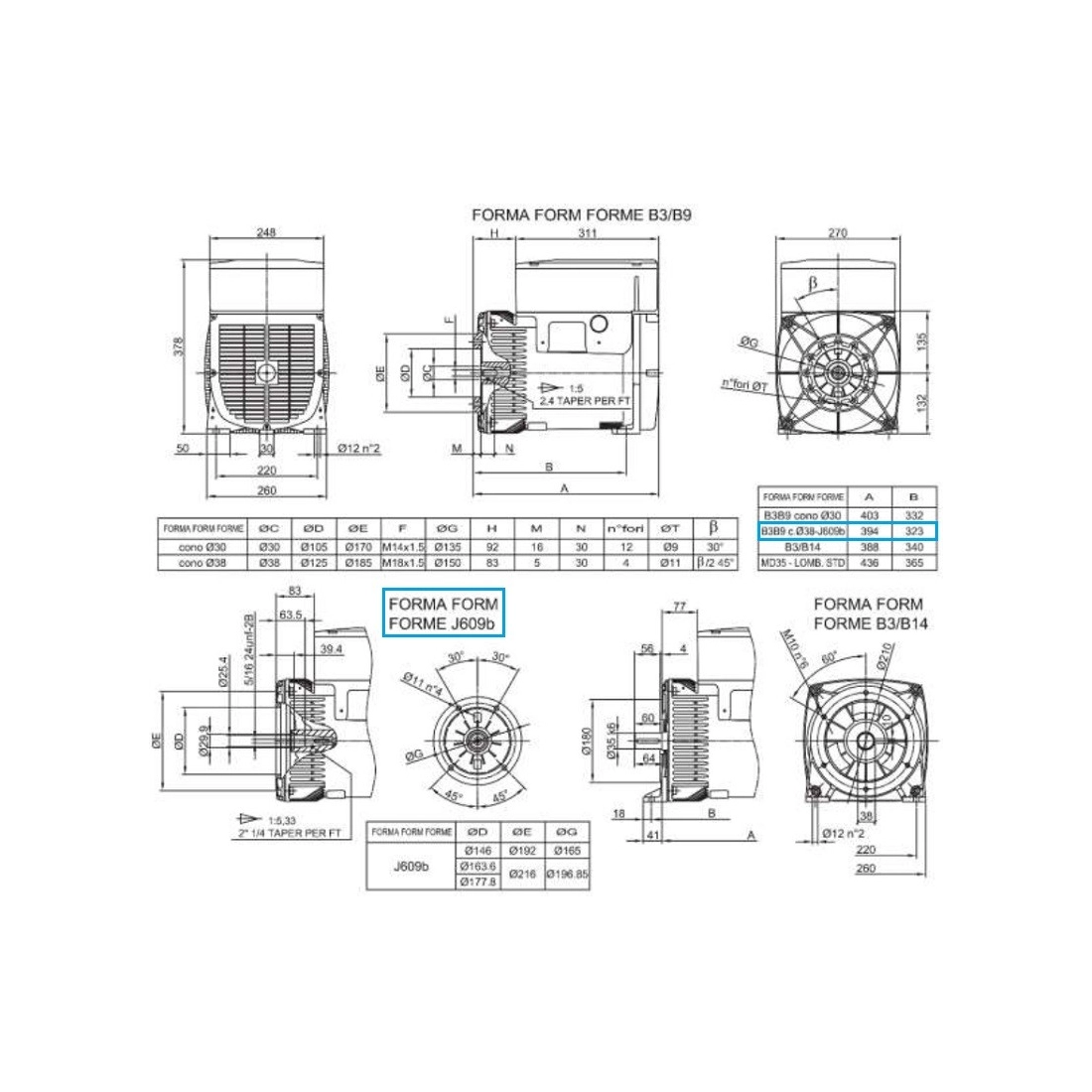

      Length (mm)
      405
      Width (mm)
      270
      Height (mm)
      379
      Brushes
      No
      Type of alternator
      Constant Speed
      Voltage regulator
      Capacitor
      Weight (Kg)
      61.5

      Specific References

      New

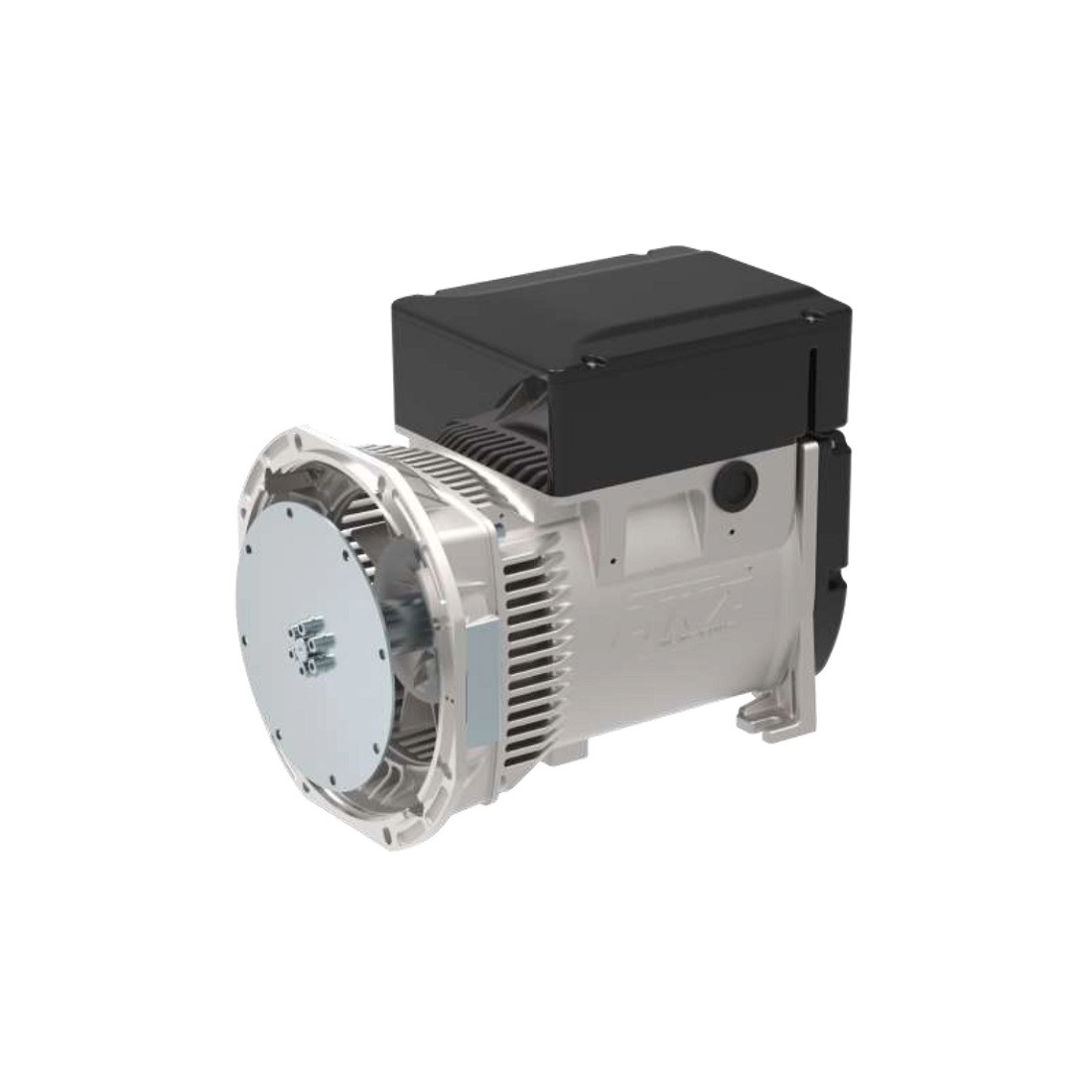

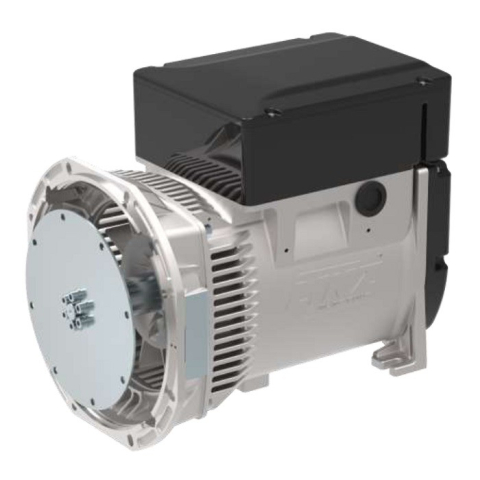

      LINZ E1C13/4 series are single-phase 4 poles brushless alternators with an auxiliary winding loaded on a capacitor regulating the voltage.
      This series has been designed for application in light towers with metal halide, halogen lamps or LED.

      CHARACTERISTICS

      • Innovative rotating diode system
      • Low harmonic content
      • High efficiency
      • Type: Single-phase alternators
      • Poles: 4
      • Phases: Single-phase
      • Regulation: CAPACITOR
      • Application: PORTABLE, LIGHTING TOWERS
      * Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
