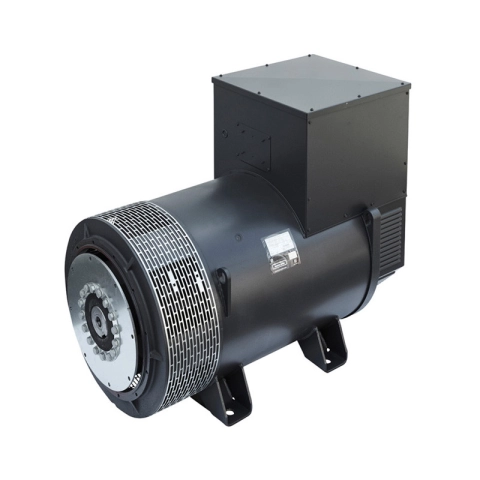

MECC ALTE ECO40-3S/4 C-TYPE THREE-PHASE ALTERNATOR 500 KVA AVR
      MECC ALTE ECO40-3S/4 C-TYPE THREE-PHASE ALTERNATOR 500 KVA AVR
      MECC ALTE ECO40-3S/4 C-TYPE THREE-PHASE ALTERNATOR 500 KVA AVR
      MECC ALTE ECO40-3S/4 C-TYPE THREE-PHASE ALTERNATOR 500 KVA AVR
      MECC ALTE ECO40-3S/4 C-TYPE THREE-PHASE ALTERNATOR 500 KVA AVR

      MECC ALTE ECO40-3S/4 C-TYPE THREE-PHASE ALTERNATOR 500 KVA AVR

      ECO40-3S/4 C-TYPE SAE1 d14

      Type of phase: Single / Three-phase
      Maximum threephase power: 546 KVA / 436.8 KW
      Continuous threephase power: 500 KVA / 400 KW
      Maximum singlephase power: 302 KVA / 302 KW
      Continuous singlephase power: 276 KVA / 276 KW
      Frequency: 50/60 Hz
      Voltage: 230 V / 400 V
      Alternator type: Brushless
      Grade protection: IP23
      Alternator revolutions: 1500/1800 rpm
      Number of poles: 4
      Efficiency: 94.6%
      Constant speed alternator
      Regulator tension: AVR
      Weight: 1206,0 Kg

      List price
      19,471.20 € tax incl.
      15,960.00 € tax excl.
      Discounted Price
      12,656.28 € tax incl.
      10,374.00 € tax excl.
      Choose the type of coupling :
      Download PDF
      Custom Quote

      PERSONAL DATA


      Ask a question

      I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

      Offer on letterhead
      MECC ALTE
      ECO40-3S/4 C-TYPE SAE1 d14

      Data sheet

      Phase
      Single phase / Three phase
      Maximum power single phase (KW)
      302
      Continuous power single phase (KW)
      276
      Maximum power single phase (KVA)
      302
      Continuous power single phase (KVA)
      276
      Maximum power three phase (KW)
      436.8
      Continuous power three phase (KW)
      400
      Maximum power three phase (KVA)
      546
      Continuous power three phase (KVA)
      500
      Frequency (Hz)
      50 / 60
      Voltage (V)
      230 / 400
      Engine rpm (rpm)
      1500 / 1800
      Poles
      4
      Single-phase power (KVA)
      276
      Three-phase power (KVA)
      500

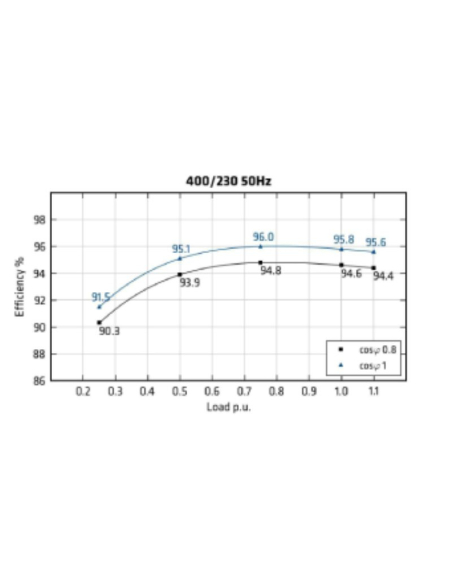

      Efficiency (%)
      94.1
      Protection degree
      IP23
      Acoustic pressure
      82 dB(A) at 7 m
      Brushes
      No
      PMG
      Optional
      Type of alternator
      Constant Speed
      Voltage regulator
      AVR
      Weight (Kg)
      1206

      Specific References

      New

      MECC ALTE ECO40-3S/4 C-TYPE THREE-PHASE ALTERNATOR 500 KVA AVR

      The alternator MECC ALTE ECO40-3S/4 C-TYPE three-phase with a power of 500KVA, this unit has a self-exciting and self-regulating Brushless operation equipped with AVR voltage regulator.

      The ECO40-3S/4 C-TYPE alternator is designed for operation at a frequency of 50 or 60 HZ, the possibility of working on these two frequencies makes it possible to apply it to any service voltage, increasing its versatility, for correct operation. For correct operation it is only necessary to verify that the settings are correct for the intended use.

      MECC ALTE ECO40-3S/4 C-TYPE is supplied with 12 terminals (7 terminals), with which it is normally possible to connect both the series star alternator and the parallel star alternator. According to your needs, you can switch from one connection to another, bearing in mind that you must necessarily check the connection of the DSR.

      The high quality bi-component insulating resin used by MeccAlte ECO40-3S/4, is a polyester specially developed to be used in vacuum impregnation machines or by dipping and dripping. It has superior bond strength characteristics, high chemical and moisture resistance and is suitable for uses up to 212 ° C.

      The advantages of the AVR

      The automatic voltage regulator, or AVR, allows the alternator to deliver stable energy and therefore be able to connect equipment with delicate electronics such as computers, appliances, smartphones and tablets. The AVR and the other quality standard of the alternator will provide you with safe and stabilized energy.

      TECHNICAL FEATURES MECC ALTE ECO40-3S/4 C-TYPE

      Type of phase: Single / Three-phase
      Maximum threephase power: 546 KVA / 436.8 KW
      Continuous threephase power: 500 KVA / 400 KW
      Maximum singlephase power: 302 KVA / 302 KW
      Continuous singlephase power: 276 KVA / 276 KW
      Frequency: 50/60 Hz
      Voltage: 230 V / 400 V
      Alternator type: Brushless
      Grade protection: IP23
      Alternator revolutions: 1500/1800 rpm
      Number of poles: 4
      Efficiency: 94.6%
      Constant speed alternator
      Regulator tension: AVR
      Weight: 1206,0 Kg

      Are you looking for a product with different characteristics? HERE you can find the entire range MECC ALTE and other specialized brands.

      Images and technical data are not binding and subject to changes by the manufacturer

      * Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
