SINCRO FT2 MFS Three Phase Synchronous AC Alternator 16 kVA Compound

SINCRO THREE PHASE ALTERNATOR FT2
search
  • SINCRO THREE PHASE ALTERNATOR FT2
  • SINCRO THREE PHASE ALTERNATOR FT2
SINCRO
FT2 MFS J609b c25.4
New product

Phase: Three phase
Poles: 2
Voltage (V): 230 / 400
Frequency (Hz): 50
Rpm Speed: 3000
Single Phase Output (kVA): ----
Three Phase Output (kVA): 16
Constant Speed Alternator
Compound
Brushes
Weight (Kg): 62
Protection: IP23

Technical features
Phase
Three phase
Frequency (Hz)
50
Voltage (V)
230 / 400
Engine rpm (rpm)
3000
Poles
2
Three-phase power (KW)
12.8
Three-phase power (KVA)
16
Efficiency (%)
84.5
Protection degree
IP23
Dry weight (Kg)
62
Brushes
Yes
Type of alternator
Constant Speed
Voltage regulator
Digital AVR
Details

Three phase brushes alternator - Compound.

- Self-regulated
- IP23
- Standard voltage 230/400 V - 50 Hz
- Short circuit current greater than 3 In

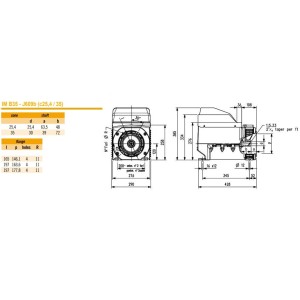

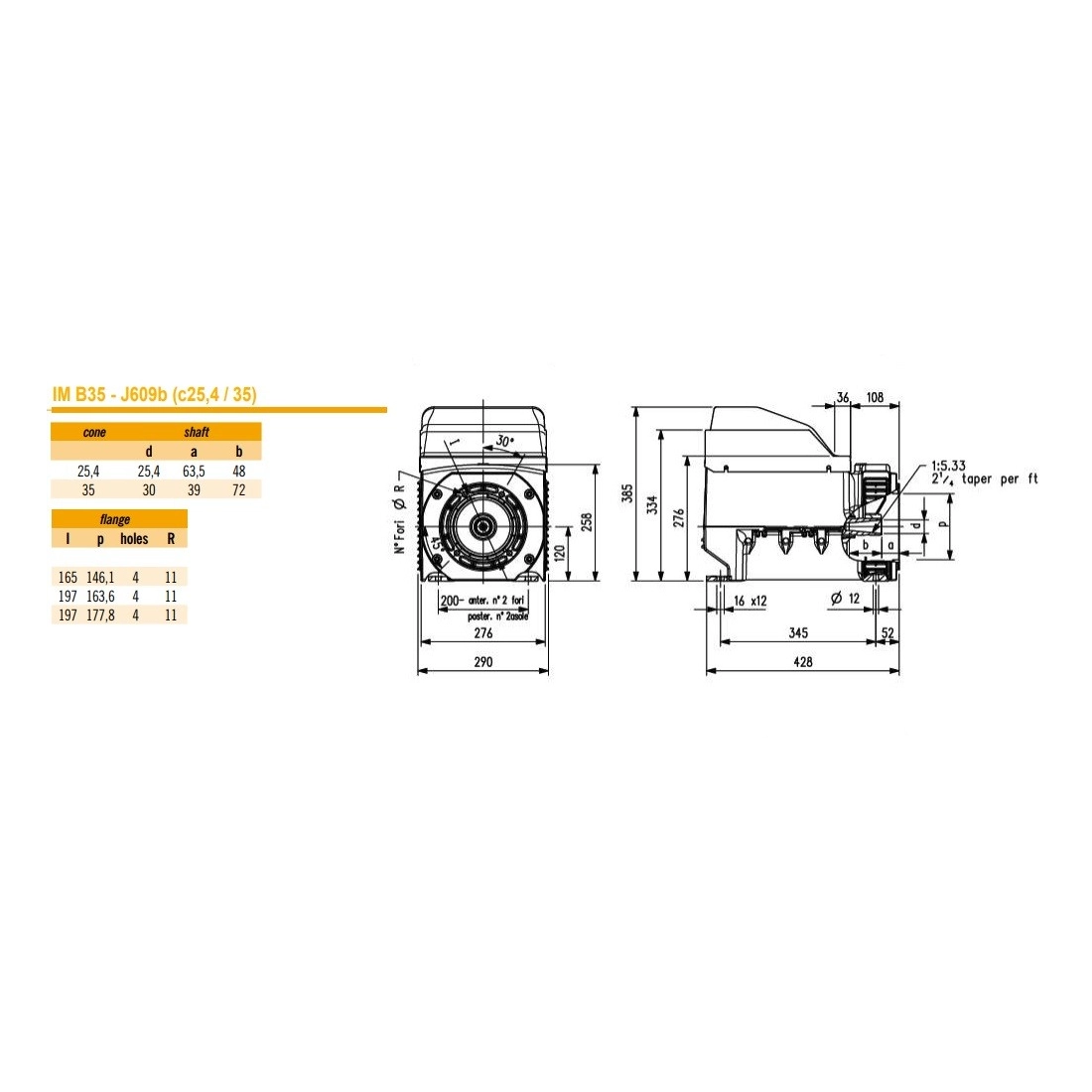

- Standard coupling IM B35 cone 25.4 / cone 35
- Couplings IM B34, IM B35, SAE

The image is purely indicative.

Technical Sheet / Manuals
Related Accessories
List price
1.550,62 € tax incl.
1.271,00 € tax excl.
Discounted Price
940,06 € tax incl.
770,54 € tax excl.
Choose the type of coupling
