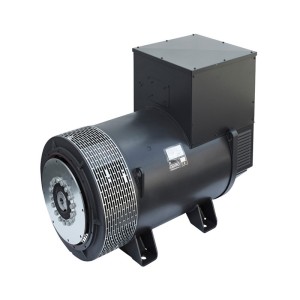

MECC ALTE ECO40-2S/4 C-TYPE THREE-PHASE ALTERNATOR 450 KVA AVR
      MECC ALTE ECO40-2S/4 C-TYPE THREE-PHASE ALTERNATOR 450 KVA AVR
      MECC ALTE ECO40-2S/4 C-TYPE THREE-PHASE ALTERNATOR 450 KVA AVR
      MECC ALTE ECO40-2S/4 C-TYPE THREE-PHASE ALTERNATOR 450 KVA AVR
      MECC ALTE ECO40-2S/4 C-TYPE THREE-PHASE ALTERNATOR 450 KVA AVR

      MECC ALTE ECO40-2S/4 C-TYPE THREE-PHASE ALTERNATOR 450 KVA AVR

      ECO40-2S/4 C-TYPE SAE1 d14

      Phase Type: Single Phase / Three Phase
      Maximum three-phase power: 491 KVA / 392.8 KW
      Three-phase continuous use power: 450 KVA / 360 KW
      Maximum single-phase power: 237 KVA / 237 KW
      Single-phase continuous use power: 220 KVA / 220 KW
      Frequency: 50 / 60 Hz
      Voltage: 230 V / 400 V
      Alternator Type: Brushless
      Degree of protection: IP23
      Alternator revolutions: 1500 / 1800 rpm
      Number of poles: 4
      Efficiency: 94.4%
      Constant speed alternator
      Voltage regulator: AVR
      Weight: 1131Kg

      List price
      18,524.48 € tax incl.
      15,184.00 € tax excl.
      Discounted Price
      12,040.91 € tax incl.
      9,869.60 € tax excl.
      Choose the type of coupling :
      Download PDF
      Custom Quote

      PERSONAL DATA


      Ask a question

      I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

      Offer on letterhead
      MECC ALTE
      ECO40-2S/4 C-TYPE SAE1 d14

      Data sheet

      Phase
      Single phase / Three phase
      Maximum power single phase (KW)
      237
      Continuous power single phase (KW)
      220
      Maximum power single phase (KVA)
      237
      Continuous power single phase (KVA)
      220
      Maximum power three phase (KW)
      392.8
      Continuous power three phase (KW)
      360
      Maximum power three phase (KVA)
      491
      Continuous power three phase (KVA)
      450
      Frequency (Hz)
      50 / 60
      Voltage (V)
      230 / 400
      Engine rpm (rpm)
      1500 / 1800
      Poles
      4
      Single-phase power (KVA)
      237
      Three-phase power (KVA)
      440
      Efficiency (%)
      94.4
      Protection degree
      IP23
      Acoustic pressure
      82 dB(A) at 7 m
      Brushes
      No
      PMG
      Optional
      Type of alternator
      Constant Speed
      Voltage regulator
      AVR
      Weight (Kg)
      1137

      Specific References

      New

      MECC ALTE ECO40-2S/4 C-TYPE THREE-PHASE ALTERNATOR 450 KVA AVR

      The alternator MECC ALTE ECO40-2S/4 C-TYPE three-phase with a power output of 450KVA, this unit has a self-regulating brushless operation equipped with an AVR voltage regulator.

      The MECC ALTE ECO40-2S/4 alternator is complete with self-regulation via a digital electronic regulator powered by an auxiliary winding. The MECC ALTE ECO40-2S/4 C-TYPE is robustly designed to meet industry requirements and the most demanding technological specifications needed in various applications. They are available as single or double bearing.

      The MECC ALTE C-TYPE series has a MAUX auxiliary winding to power the digital controller. The DSR can be connected to a PC via the DxR software and offers the possibility to display alarms and settings for analysis or to clone other controllers.

      The ECO40-2S/4 consists of a fixed stator with inclined slots and a rotating inductor, and is equipped with a damping cage as standard. The high-quality two-component insulating resin used in the MeccAlte ECO40-2S/4 is a polyester specially developed for use in vacuum or immersion and drip impregnation machines. It has superior adhesion strength, high chemical and moisture resistance and is suitable for use up to 212°C.

      These alternators comply with the Italian standard CEI 2-3 file 11111. This standard corresponds to the European norm EN 60034-1 and the international standard IEC 60034-1, is linked to the British norm BS 4999 Part 101, is equivalent to the German norm VDE 0530 Part 1 and is included in the French standard NF 51.111

      The advantages of the AVR

      The automatic voltage regulator, or AVR, allows the alternator to deliver stable energy and thus be able to connect equipment with delicate electronics such as computers, appliances, smartphones and tablets. The AVR and the other quality standard of the alternator will provide you with safe and stabilized energy.

      TECHNICAL FEATURES MECC ALTE ECO40-2S/4 C-TYPE

      Phase Type: Single / Three Phase
      Maximum threephase power: 491 KVA / 392.8 KW
      Threephase continuous use power: 450 KVA / 360 KW
      Maximum singlephase power: 237 KVA / 237 KW
      Singlephase continuous use power: 220 KVA / 220 KW
      Frequency: 50 / 60 Hz
      Voltage: 230 V / 400 V
      Alternator Type: Brushless
      Degree of protection: IP23
      Alternator revolutions: 1500 / 1800 rpm
      Number of poles: 4
      Efficiency: 94.4%
      Constant speed alternator
      Voltage regulator: AVR
      Weight: 1131Kg

      Are you looking for a product with different characteristics? HERE you can find the entire range MECC ALTE and other specialized brands.

      Images and technical data are not binding and subject to changes by the manufacturer

      * Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
