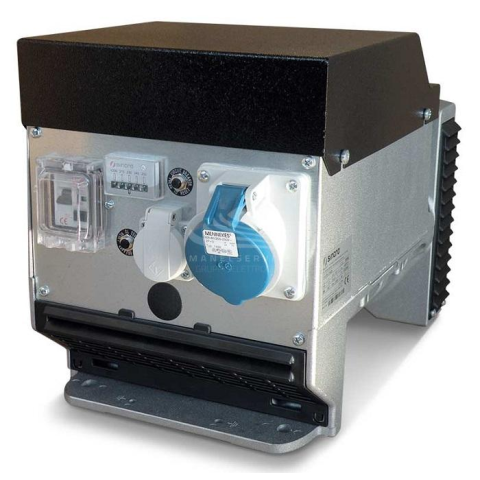

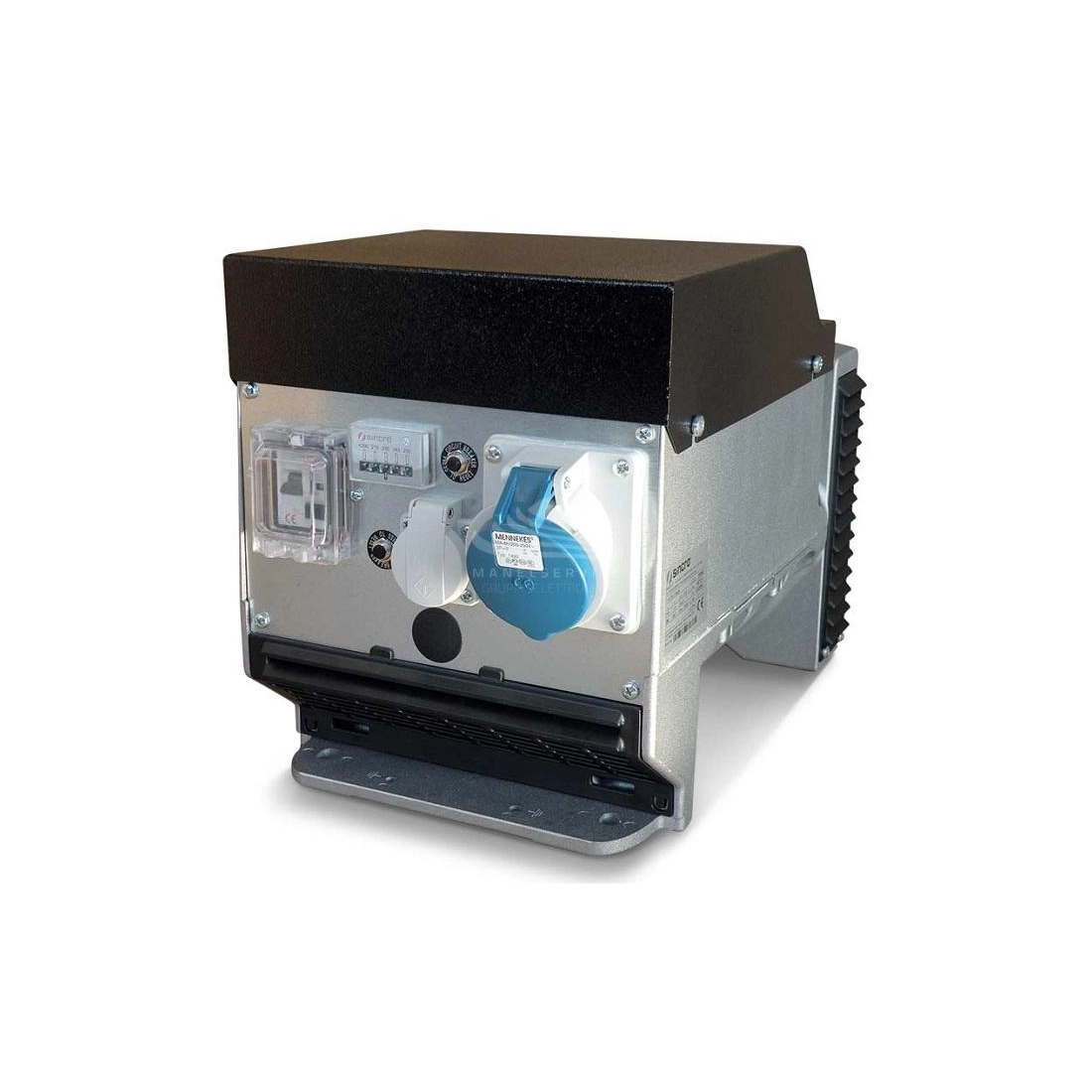

SINCRO FK4 MBS Single Phase Synchronous AC Alternator 5.5 kVA Capacitor

FK4 MBS J609b c25.4
      SINCRO FK4 MBS Single Phase Synchronous AC Alternator 5.5 kVA Capacitor
      SINCRO FK4 MBS Single Phase Synchronous AC Alternator 5.5 kVA Capacitor
      SINCRO FK4 MBS Single Phase Synchronous AC Alternator 5.5 kVA Capacitor
      SINCRO SINGLE PHASE ALTERNATOR FK4
      SINCRO SINGLE PHASE ALTERNATOR FK4 SINCRO SINGLE PHASE ALTERNATOR FK4

      Phase: Single Phase
      Poles: 4
      Voltage (V): 230
      Frequency (Hz): 50
      Rpm Speed: 1500
      Single Phase Output (kVA): 5.5
      Constant Speed Alternator
      Capacitor
      Brushless
      Weight (Kg): 36
      Protection: IP23

      List price
      1,266.36 € tax incl.
      1,038.00 € tax excl.
      Discounted Price
      767.73 € tax incl.
      629.29 € tax excl.
      Ask a question
      Offer on letterhead
      Choose the type of coupling :
      Ask for availability
      Download PDF
      Ask a question

      I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

      Offer on letterhead
      SINCRO
      FK4 MBS J609b c25.4

      Data sheet

      Phase
      Single phase
      Frequency (Hz)
      50
      Voltage (V)
      230
      Engine rpm (rpm)
      1500
      Poles
      4
      Single-phase power (KW)
      5.5
      Single-phase power (KVA)
      5.5
      Efficiency (%)
      77
      Protection degree
      IP23
      Dry weight (Kg)
      36
      Brushes
      No
      Type of alternator
      Constant Speed
      Voltage regulator
      Capacitor

      Specific References

      New

      Single phase brushless alternator - Capacitor.

      - Self-regulated
      - IP23
      - Standard voltage 230 V - 50 Hz
      - Short circuit current greater than 3 In

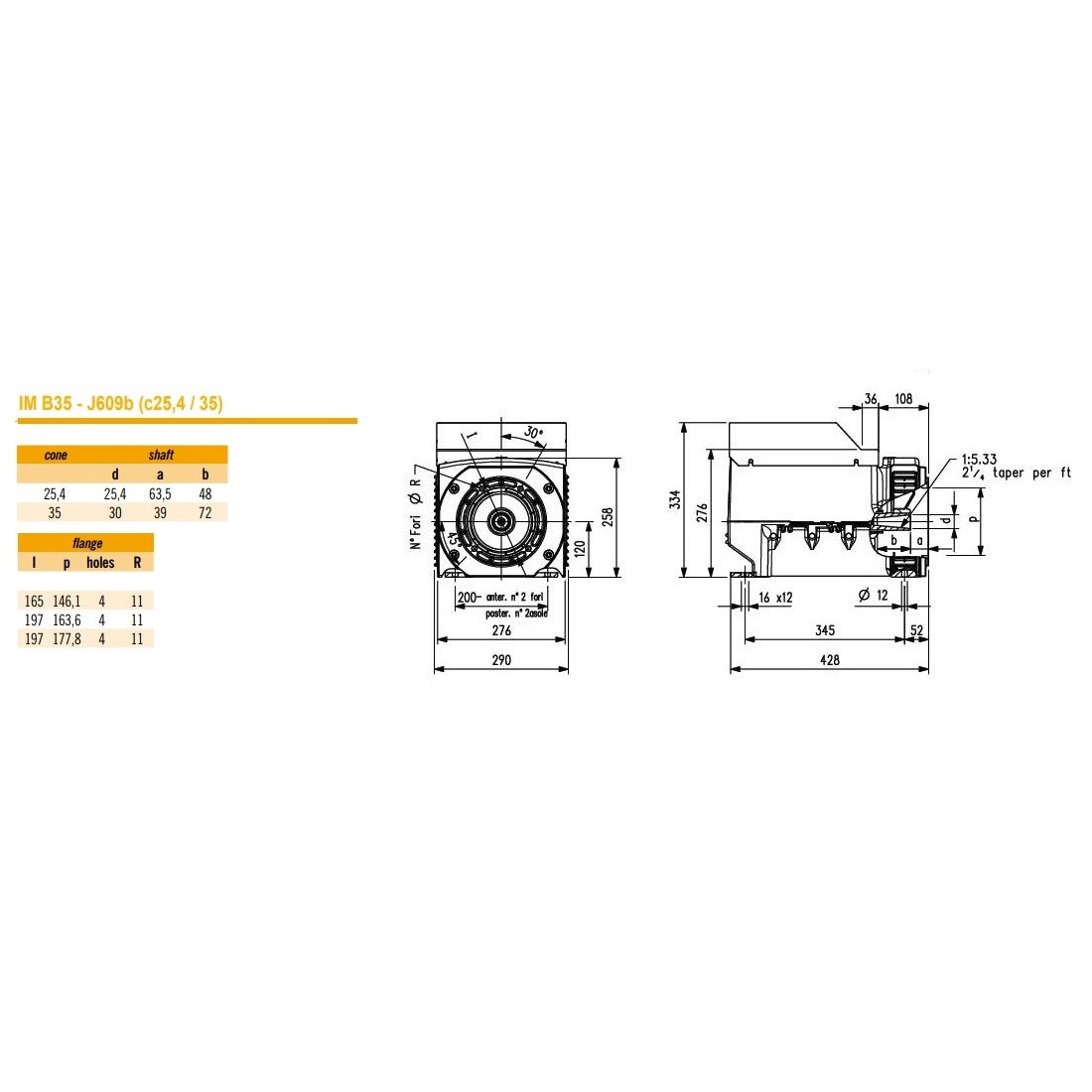

      - Standard coupling IM B35 cone 25.4 / cone 35
      - Couplings IM B34, IM B35, SAE

      The image is purely indicative.
