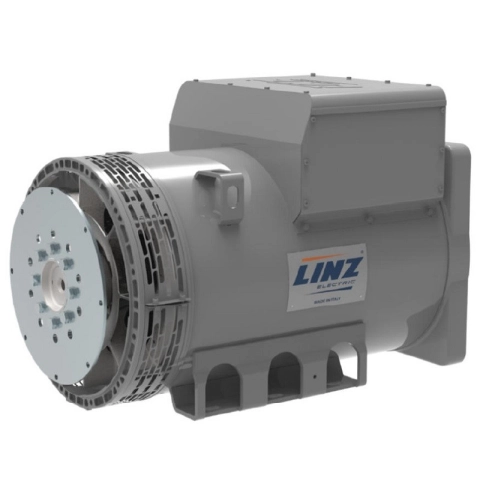

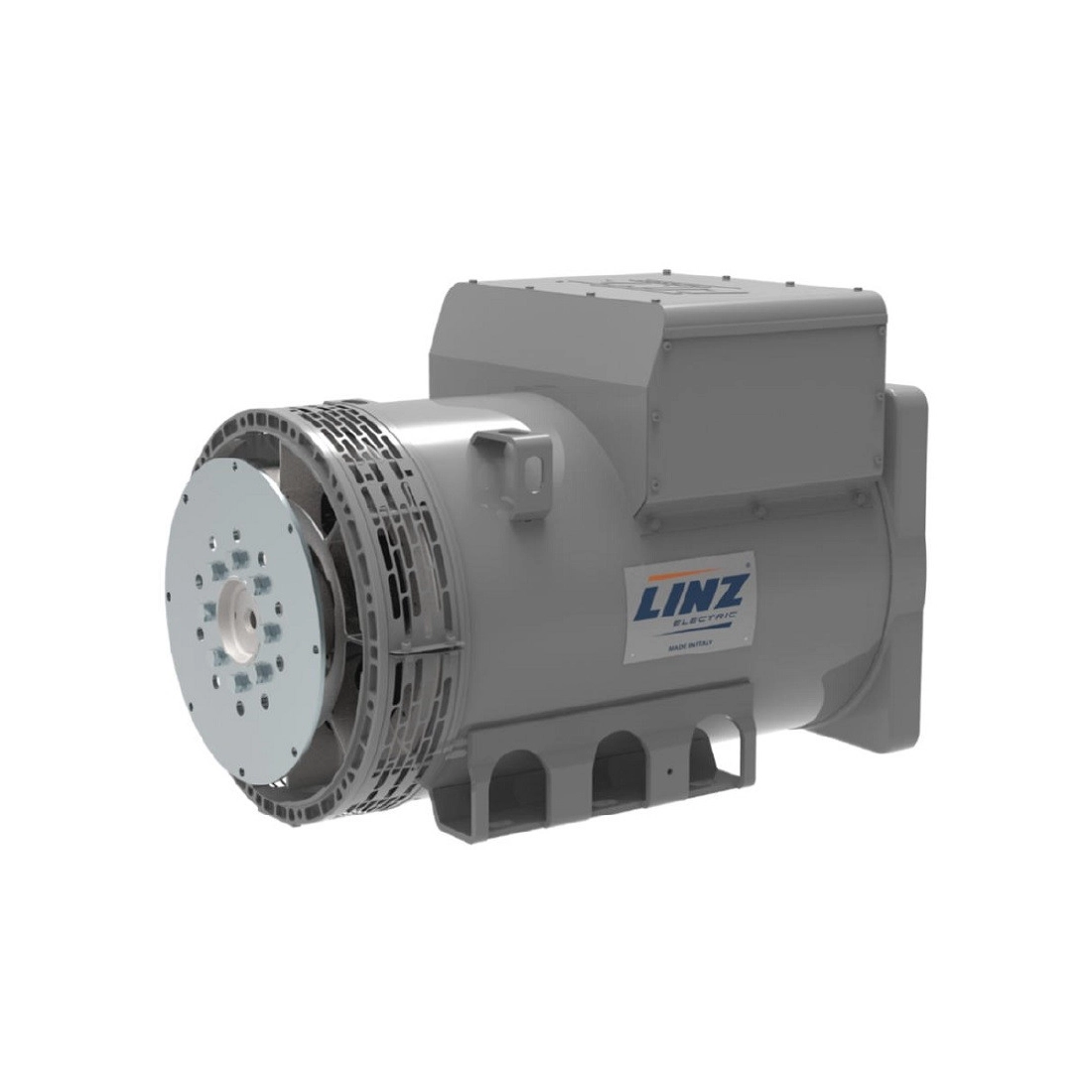

LINZ PRO22M E/4 Three-phase alternator 4 poles 130 kVA 50 Hz AVR

LINZ PRO22M E/4 Three-phase alternator 4 poles 130 kVA 50 Hz AVR
search
  • LINZ PRO22M E/4 Three-phase alternator 4 poles 130 kVA 50 Hz AVR
  • LINZ PRO22M E/4 Three-phase alternator 4 poles 130 kVA 50 Hz AVR
LINZ ELECTRIC

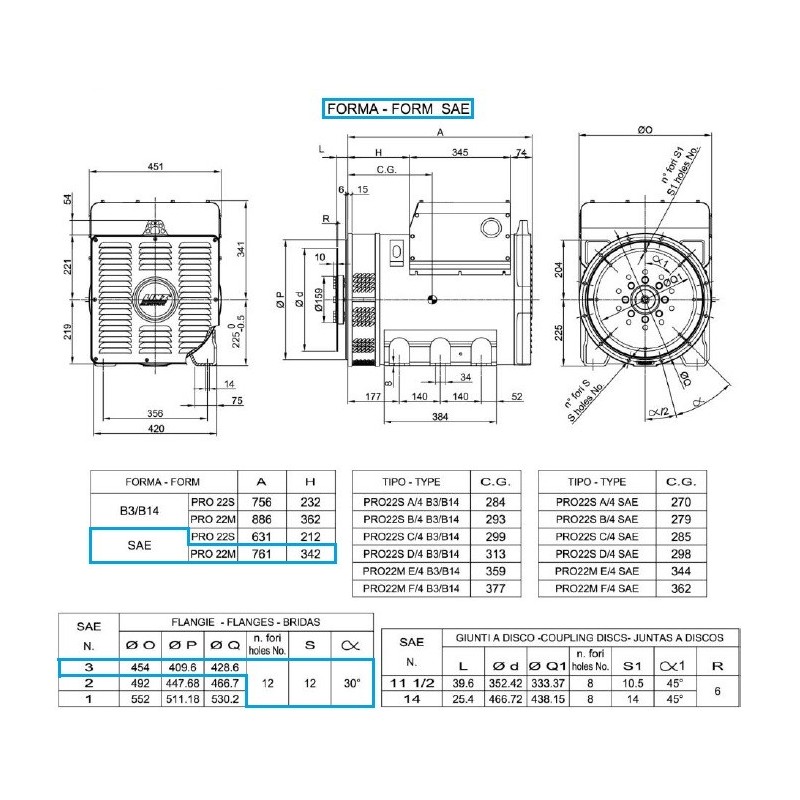

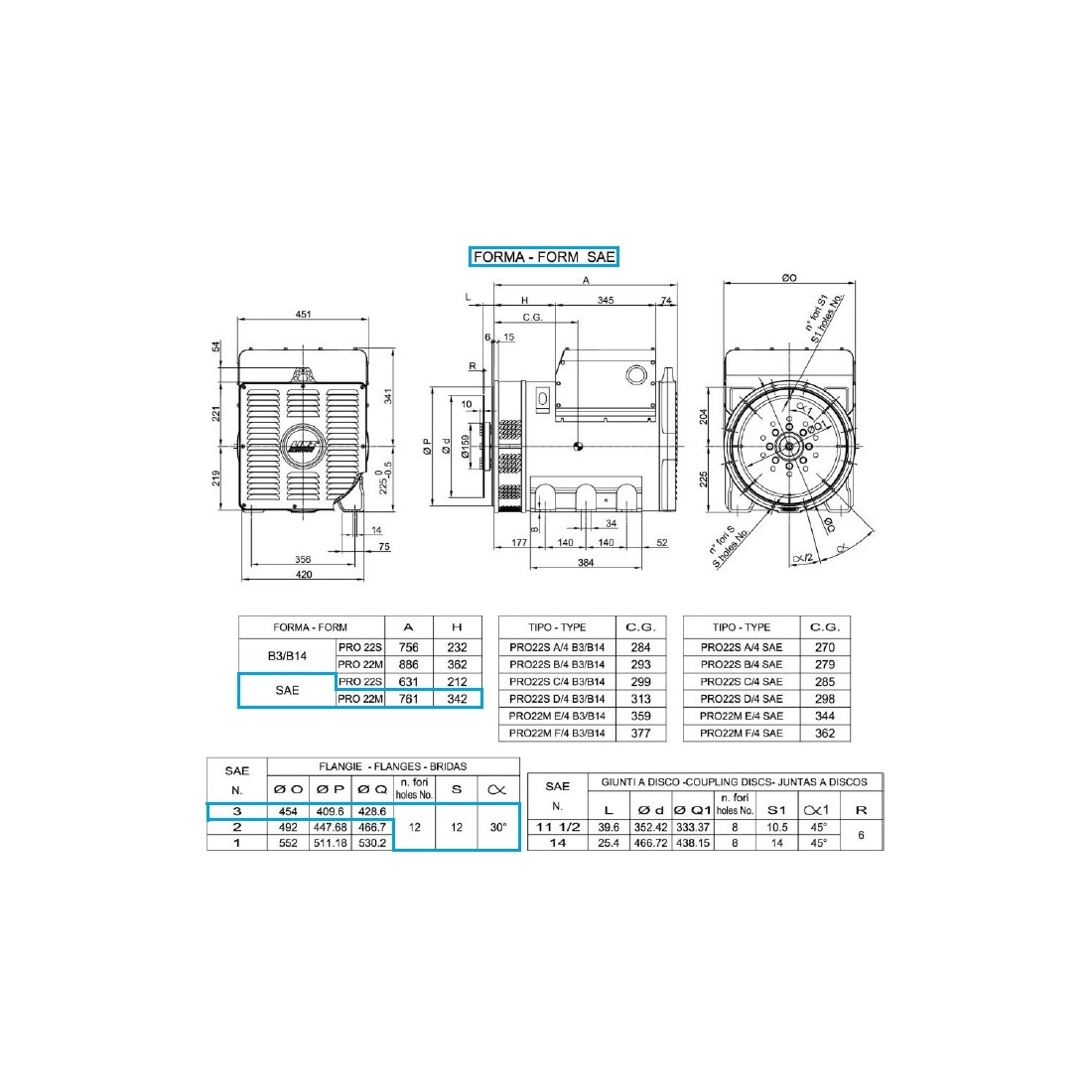

PRO22M E/4 50 Hz SAE3 d11.5
New product

Rated power at 50 Hz (kVA): 130
Rated power factor: 0.8
Rated temperature (°C): 40
Control system: self-excited
Design: brushless
Type of regulation: AVR
Insulation class: H
Protection: IP23
Maximum excess travel speed (rpm): 2250
110% overload of rated power for one hour in a 6-hour cycle
Airflow requirement (m3/min): 18.2 at 50 Hz
Suppression standard R.F.F.I. EN55011

Technical features
Phase
Three phase
Continuous power three phase (KW)
104
Continuous power three phase (KVA)
130
Frequency (Hz)
50
Voltage (V)
230 / 400
Engine rpm (rpm)
1500
Alternator
Synchronous
Poles
4
Three-phase power (KVA)
130
Protection degree
IP23
Motor insulation class
H
Length (mm)
760
Width (mm)
450
Height (mm)
566
Brushes
No
PMG
No
Type of alternator
Constant Speed
Voltage regulator
AVR
Weight (Kg)
454
Details

The alternators of PRO series are three-phase brushless 4 poles with electronic regulation (AVR) with single-phase sensing (PRO18-PRO22) and three-phase sensing (PRO28-PRO35-PRO40).

CHARACTERISTICS

  • Compact and mechanically resistant
  • Excellent wave form
  • Minimum maintenance
  • High efficiency
  • Type: Three-phase alternators
  • Poles: 4
  • Phases: Three-phase
  • Regulation: AVR
  • Application: INDUSTRIAL, COGENERATION

Technical Sheet / Manuals
Related Accessories
List price
7.265,10 € tax incl.
5.955,00 € tax excl.
Discounted Price
4.346,23 € tax incl.
3.562,48 € tax excl.
Choose the type of coupling
Ask for availability
Add to wishlist
Download PDF
Ask a question
