SINCRO GTR4 LB Three Phase Synchronous AC Alternator 30 kVA D-AVR

SINCRO THREE PHASE ALTERNATOR GTR4
SINCRO THREE PHASE ALTERNATOR GTR4
SINCRO THREE PHASE ALTERNATOR GTR4
SINCRO THREE PHASE ALTERNATOR GTR4
GTR4 LB J609b c25.4

Phase: Three Phase
Poles: 4
Voltage (V): 230 / 400
Frequency (Hz): 50
Rpm Speed: 1500
Single Phase Output (kVA): ----
Three Phase Output (kVA): 30
Constant Speed Alternator
D-AVR
Brushes
Weight (Kg): 106
Protection: IP23

Download Technical data GTR

Phase
Three phase
Frequency (Hz)
50
Voltage (V)
230 / 400
Engine rpm (rpm)
1500
Poles
4
Three-phase power (KW)
24
Three-phase power (KVA)
30
Efficiency (%)
89
Protection degree
IP23
Dry weight (Kg)
106
Brushes
Yes
Type of alternator
Constant Speed
Voltage regulator
Digital AVR
Brand

Three phase brushes alternator - DIGITAL AVR.

- Self-regulated
- IP23
- Standard voltage 230/400 V - 50 Hz
- Short circuit current greater than 3 In

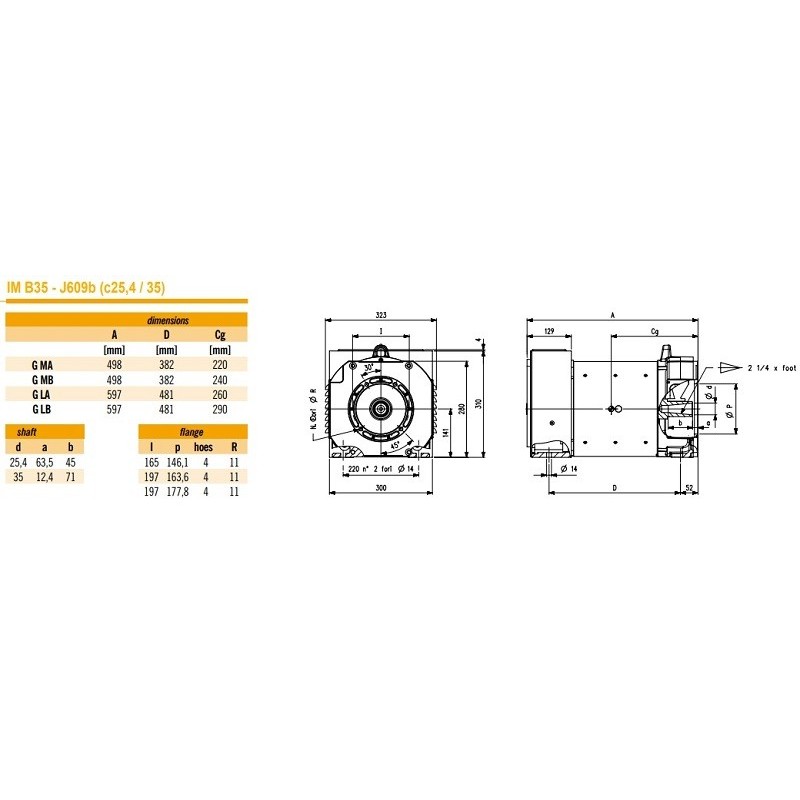

- Standard coupling IM B35 cone 25.4 / cone 35
- Couplings IM B34, IM B35, SAE
- DIGITAL AVR

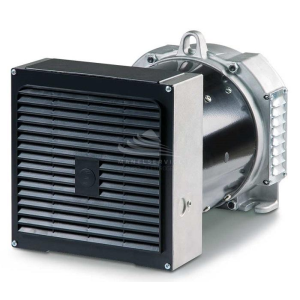

The image is purely indicative.

* Images and technical data are not binding. Please always consult the technical data sheet released by the manufacturer. Manel Service does not assume responsibility for any changes made by the manufacturer.

Complete your order with:

Unavailable
€1,559.28 €1,559.28
Choose the type of coupling
  • IMB35 J609b cone 25.4
  • IM B35 - J609b cone 35
  • IM B34 - B3/B14
  • IM B35 - B3/B9 cone 30
  • IM B35 - B3/B9 cone 38
  • SAE3 disk joint 8
  • SAE3 disk joint 10
  • SAE3 disk joint 11.5
  • SAE4 disk joint 6.5
  • SAE4 disk joint 7.5
  • SAE4 disk joint 8
  • SAE4 disk joint 10
  • SAE5 disk joint 6.5
  • SAE5 disk joint 7.5
  • SAE5 disk joint 8

This product is not available for order, please contact us and we will provide you a quotation for similar product based on your needs.

Download PDF
