Discounted price
tax incl.
tax incl.
1,453.33 €
1,191.25 € tax excl.
1,191.25 € tax excl.
Contacts: +39 011 25 35 33 - info@manelservice.com

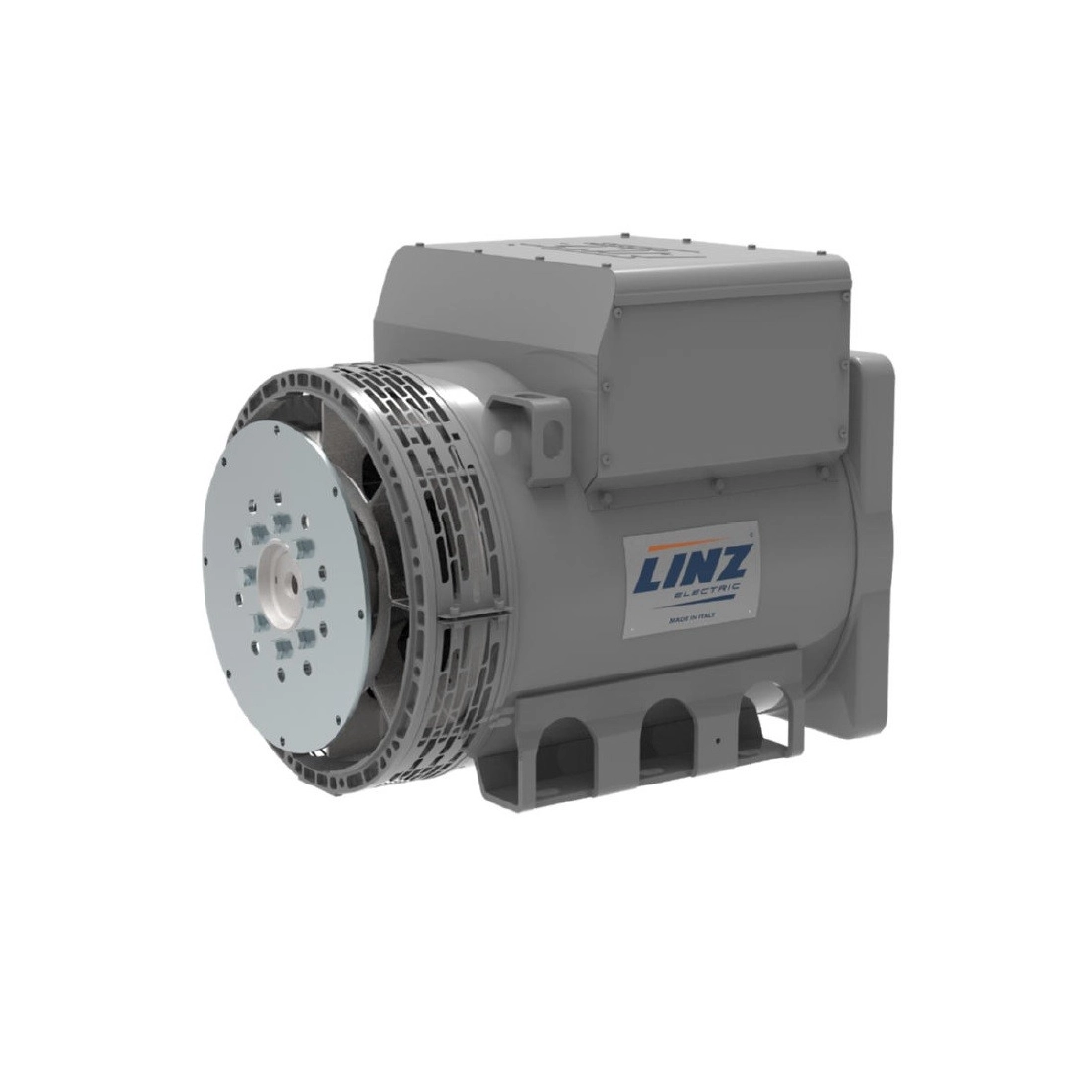

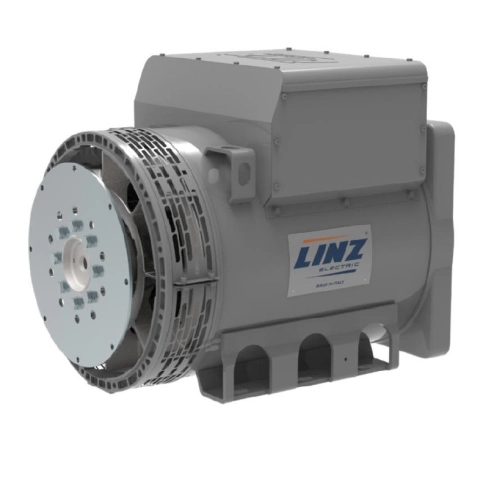

LINZ PRO22S D/4 Three-phase alternator 4 poles 120 kVA 60 Hz AVR
PRO22S D/4 60 Hz SAE3 d11.5
Rated power at 60 Hz (kVA): 120
Rated power factor: 0.8
Rated temperature (°C): 40
Control system: self-excited
Design: brushless
Type of regulation: AVR
Insulation class: H
Protection: IP23
Maximum excess travel speed (rpm): 2250
110% overload of rated power for one hour in a 6-hour cycle
Suppression standard R.F.F.I. EN55011
List price
tax incl.
tax excl.
Discounted Price
4,046.26 € tax incl.
3,316.61 € tax excl.
PRO22S D/4 60 Hz SAE3 d11.5
Data sheet
- Phase
- Three phase
- Continuous power three phase (KVA)
- 120
- Frequency (Hz)
- 60
- Voltage (V)
- 230 / 400
- Engine rpm (rpm)
- 1800
- Alternator
- Synchronous
- Poles
- 4
- Three-phase power (KVA)
- 100
- Protection degree
- IP23
- Motor insulation class
- H

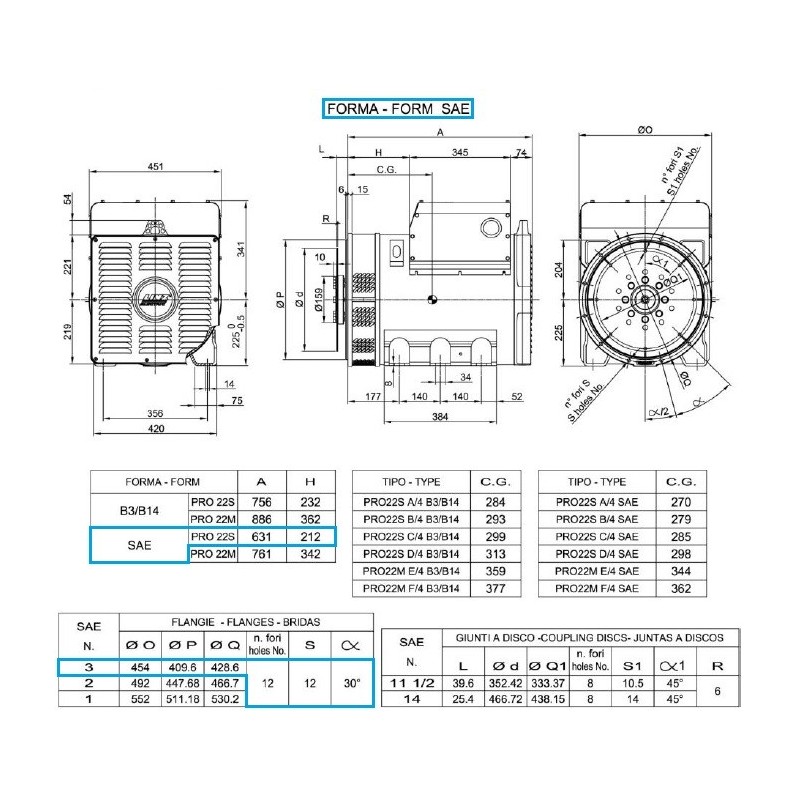

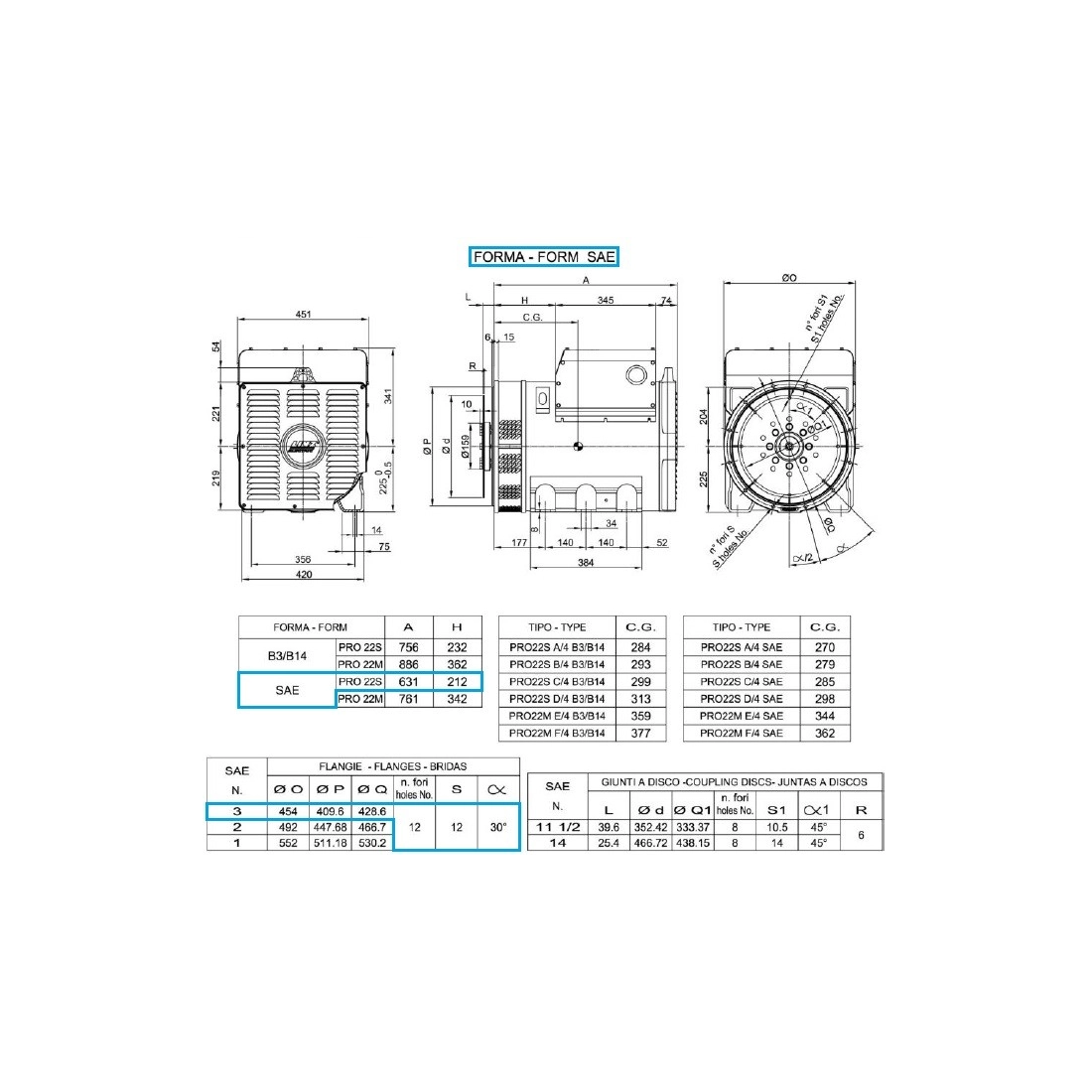

- Length (mm)
- 630
- Width (mm)
- 450
- Height (mm)
- 566
- Brushes
- No
- PMG
- No
- Type of alternator
- Constant Speed
- Voltage regulator
- AVR
- Weight (Kg)
- 379
Specific References
New

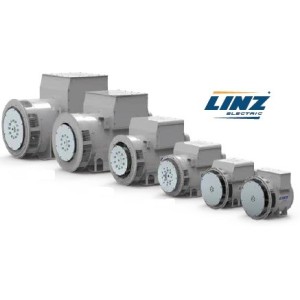

The alternators of PRO series are three-phase brushless 4 poles with electronic regulation (AVR) with single-phase sensing (PRO18-PRO22) and three-phase sensing (PRO28-PRO35-PRO40).
CHARACTERISTICS
- Compact and mechanically resistant
- Excellent wave form
- Minimum maintenance
- High efficiency
- Type: Three-phase alternators
- Poles: 4
- Phases: Three-phase
- Regulation: AVR
- Application: INDUSTRIAL, COGENERATION
FOR ALTERNATORS
LINZ Gear box up to 85 kVA for PRO22...
Moltiplicatore 85 kVA
Discounted price
tax incl.
tax incl.
854.49 €
700.40 € tax excl.
700.40 € tax excl.
FOR ALTERNATORS
LINZ Gear box up to 130 kVA for PRO22...
Moltiplicatore 130 kVA
Discounted price
tax incl.
tax incl.
2,569.75 €
2,106.35 € tax excl.
2,106.35 € tax excl.
FOR ALTERNATORS
Discounted price
tax incl.
tax incl.
135.71 €
111.24 € tax excl.
111.24 € tax excl.
FOR ALTERNATORS
Discounted price
tax incl.
tax incl.
150.79 €
123.60 € tax excl.
123.60 € tax excl.
VOLTAGE REGULATORS
Discounted price
tax incl.
tax incl.
330.62 €
271.00 € tax excl.
271.00 € tax excl.
FOR ALTERNATORS
Discounted price
tax incl.
tax incl.
191.00 €
156.56 € tax excl.
156.56 € tax excl.
FOR ALTERNATORS
LINZ Anticondensation heaters.
LINZ SCA
Discounted price
tax incl.
tax incl.
150.79 €
123.60 € tax excl.
123.60 € tax excl.
FOR ALTERNATORS
Discounted price
tax incl.
tax incl.
60.32 €
49.44 € tax excl.
49.44 € tax excl.
FOR ALTERNATORS
Discounted price
tax incl.
tax incl.
142.00 €
116.39 € tax excl.
116.39 € tax excl.
FOR ALTERNATORS
Discounted price
tax incl.
tax incl.
202.31 €
165.83 € tax excl.
165.83 € tax excl.
VOLTAGE REGULATORS
Discounted price
tax incl.
tax incl.
381.86 €
313.00 € tax excl.
313.00 € tax excl.
VOLTAGE REGULATORS
Discounted price
tax incl.
tax incl.
397.72 €
326.00 € tax excl.
326.00 € tax excl.
4 other products in the same category:
Discounted price
tax incl.
tax incl.
21,138.98 €
17,327.03 € tax excl.
17,327.03 € tax excl.
Discounted price
tax incl.
tax incl.
847.22 €
694.44 € tax excl.
694.44 € tax excl.
Rated power at 60 Hz (kVA): 120
Rated power factor: 0.8
Rated temperature (°C): 40
Control system: self-excited
Design: brushless
Type of regulation: AVR
Insulation class: H
Protection: IP23
Maximum excess travel speed (rpm): 2250
110% overload of rated power for one hour in a 6-hour cycle
Suppression standard R.F.F.I. EN55011
LINZ PRO22S D/4 Three-phase alternator 4 poles 120 kVA 60 Hz AVR
List price
tax incl.
tax excl.
Discounted Price
4,046.26 € tax incl.
3,316.61 € tax excl.
