SINCRO SK160 WB SINGLE-THREE-PHASE ALTERNATOR 40KVA AVR

SINCRO THREE PHASE ALTERNATOR SK160
search
  • SINCRO THREE PHASE ALTERNATOR SK160
  • SINCRO THREE PHASE ALTERNATOR SK160
SINCRO
SK160 WB SAE3 d8
New product

Phase: Single / Three Phase
Poles: 4
Voltage (V): 230 / 400
Frequency (Hz): 50
Rpm Speed: 1500
Single Phase Output (kVA): 24
Three Phase Output (kVA): 40
Constant Speed Alternator
AVR
Brushless
Weight (Kg): 136
Protection: IP23

Technical features
Phase
Single phase / Three phase
Frequency (Hz)
50
Voltage (V)
230 / 400
Engine rpm (rpm)
1500
Poles
4
Single-phase power (KW)
19.2
Single-phase power (KVA)
24
Three-phase power (KW)
32
Three-phase power (KVA)
40
Efficiency (%)
87.9
Protection degree
IP23
Dry weight (Kg)
136
Brushes
No
Type of alternator
Constant Speed
Voltage regulator
AVR
Details

Three phase brushless alternator - AVR.

- Insulation class H
- IP23
- Standard voltage 230/400 V - 50 Hz
- Three phase leads 12 / single phase leads 4
- Bearings: Bearings are dimensioned for heavy duty
- Transient features: Transient voltage drop for rated step load at 0.8 power factor is less than 18%
- Single-phase operation: IB4 alternators can be connected for single-phase use
- Tropicalizzation: standard

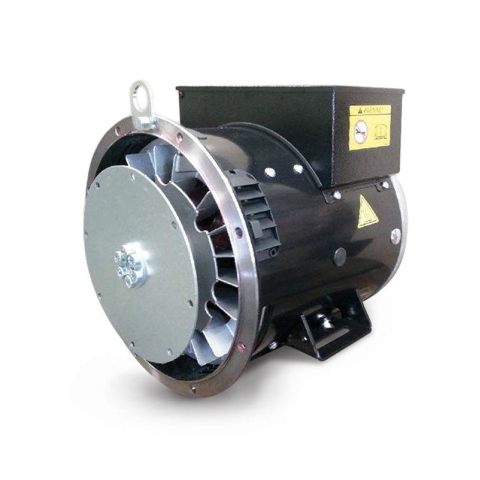

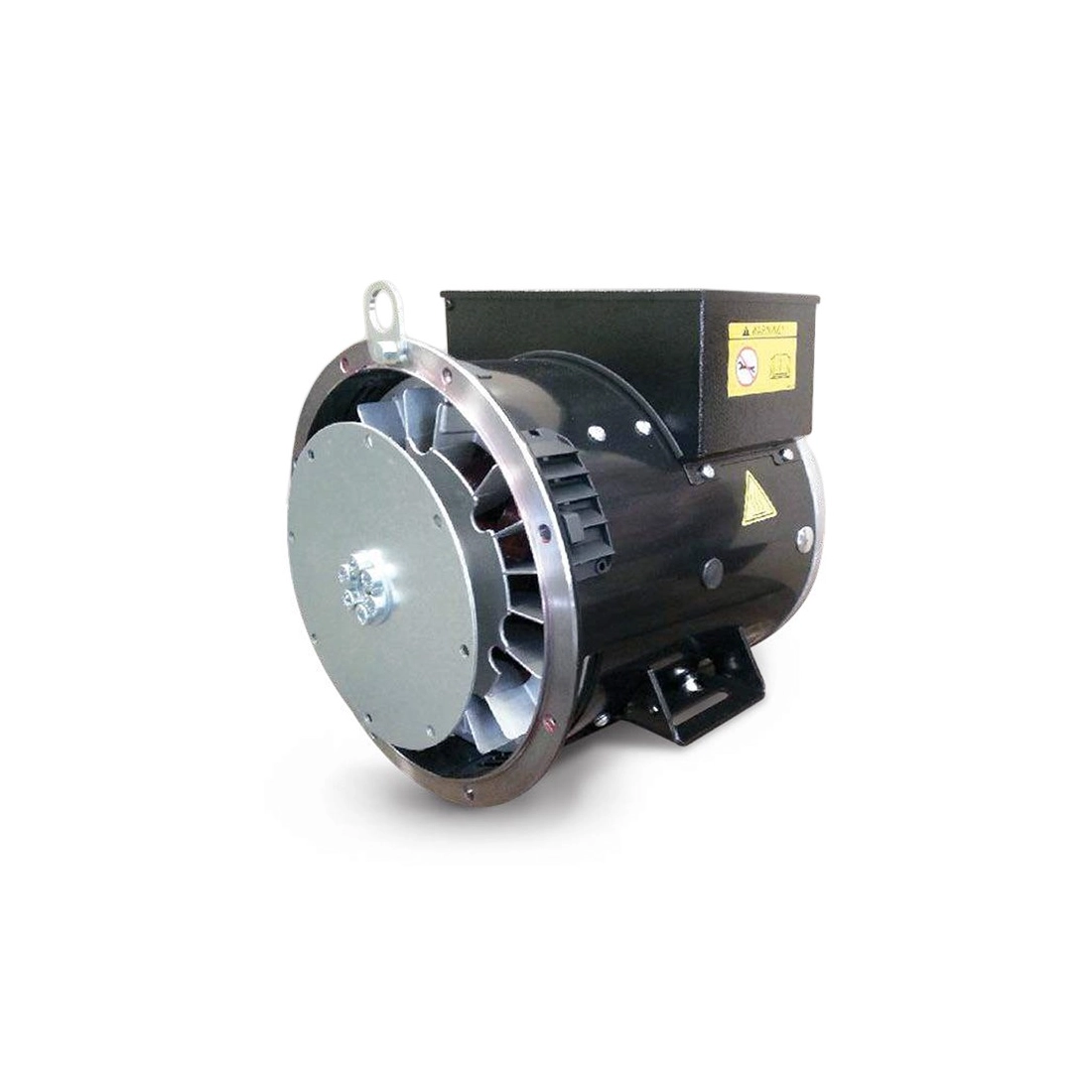

The image is purely indicative.

Technical Sheet / Manuals
List price
3.950,36 € tax incl.
3.238,00 € tax excl.
Discounted Price
2.394,86 € tax incl.
1.963,00 € tax excl.
