SINCRO SK355 MS SINGLE-THREE PHASE ALTERNATOR 500KVA D-AVR

SINCRO THREE PHASE ALTERNATOR SK355
SINCRO THREE PHASE ALTERNATOR SK355
SINCRO THREE PHASE ALTERNATOR SK355
SINCRO THREE PHASE ALTERNATOR SK355
SK355 MS SAE1 d14

Phase: Three Phase
Poles: 4
Voltage (V): 400
Frequency (Hz): 50
Rpm Speed: 1500
Single Phase Output (kVA): ----
Three Phase Output (kVA): 500
Constant Speed Alternator
D-AVR
Brushless
Weight (Kg): 1090
Protection: IP23

Download Technical data SK355

Phase
Three phase
Frequency (Hz)
50
Voltage (V)
400
Engine rpm (rpm)
1500
Poles
4
Three-phase power (KW)
400
Three-phase power (KVA)
500
Efficiency (%)
94.2
Protection degree
IP23
Dry weight (Kg)
1090
Brushes
No
PMG
Optional
Type of alternator
Constant Speed
Voltage regulator
Digital AVR
Brand

Three phase brushless alternator - AVR.

- Insulation class H
- IP23
- Standard voltage 400 V - 50 Hz
- Leads 6
- Bearings: Bearings are dimensioned for heavy duty
- Transient features: Transient voltage drop for rated step load at 0.8 power factor is less than 18%
- Tropicalizzation: standard

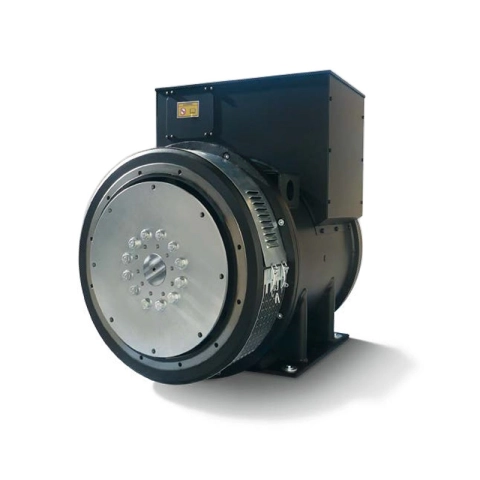

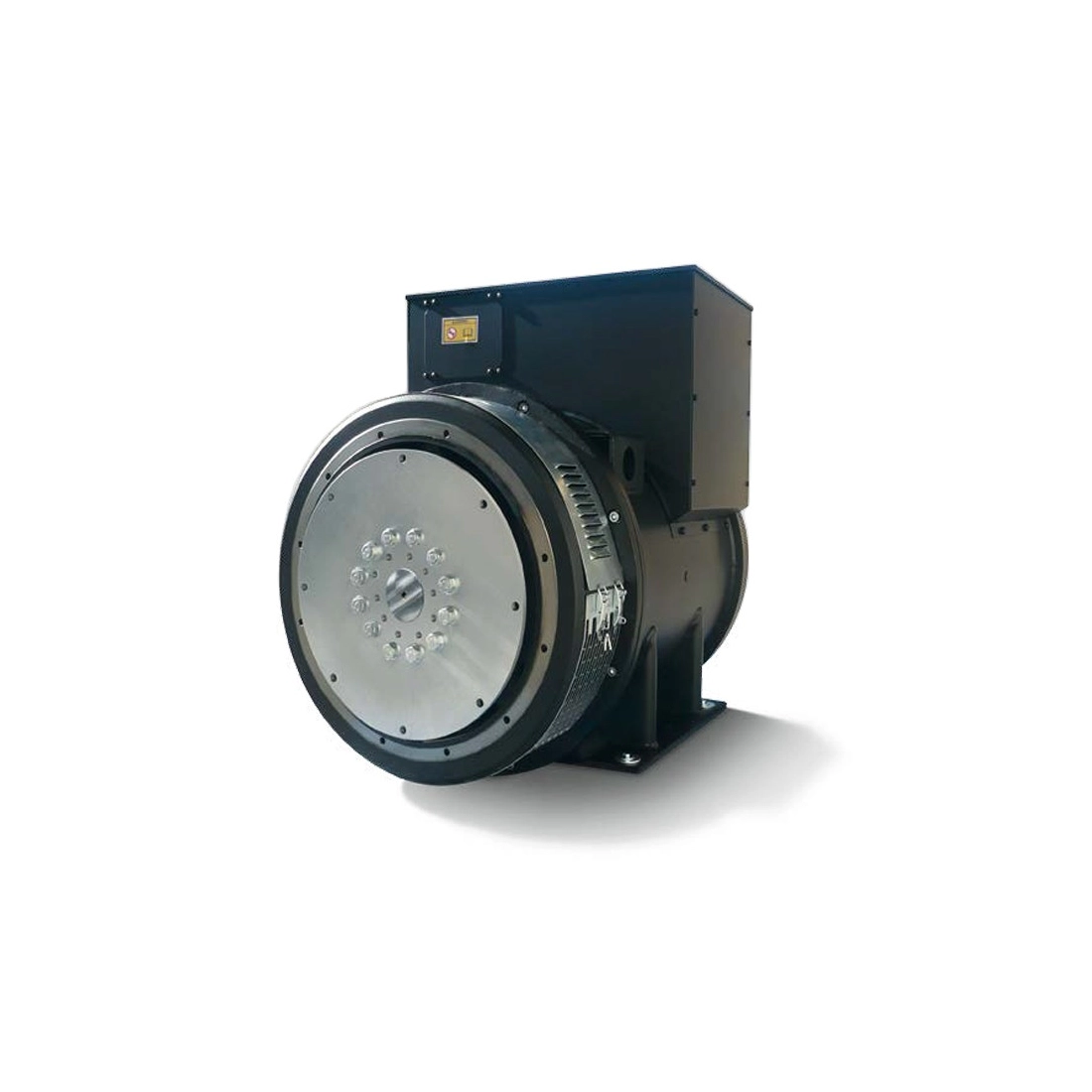

The image is purely indicative.

* Images and technical data are not binding. Please always consult the technical data sheet released by the manufacturer. Manel Service does not assume responsibility for any changes made by the manufacturer.
