SINCRO SK450 ME SINGLE-THREE PHASE ALTERNATOR 1300KVA D-AVR

SINCRO THREE PHASE ALTERNATOR SK450
search
  • SINCRO THREE PHASE ALTERNATOR SK450
  • SINCRO THREE PHASE ALTERNATOR SK450
SINCRO
SK450 ME SAE1/2 d18
New product

Phase: Three Phase
Poles: 4
Voltage (V): 400
Frequency (Hz): 50
Rpm Speed: 1500
Single Phase Output (kVA): ----
Three Phase Output (kVA): 1300
Constant Speed Alternator
D-AVR
Brushless
PMG
Weight (Kg): 2230
Protection: IP23

Technical features
Phase
Three phase
Frequency (Hz)
50
Voltage (V)
400
Engine rpm (rpm)
1500
Poles
4
Three-phase power (KW)
1040
Three-phase power (KVA)
1300
Efficiency (%)
95.6
Protection degree
IP23
Dry weight (Kg)
2230
Brushes
No
PMG
Yes
Type of alternator
Constant Speed
Voltage regulator
Digital AVR
Details

Three phase brushless alternator - AVR.

- Insulation class H
- IP23
- Standard voltage 400 V - 50 Hz
- Leads 6
- Winding pitch: 2/3
- Excitation PMG: standard
- Bearings: Bearings are dimensioned for heavy duty
- Transient features: Transient voltage drop for rated step load at 0.8 power factor is less than 18%
- Tropicalizzation: standard

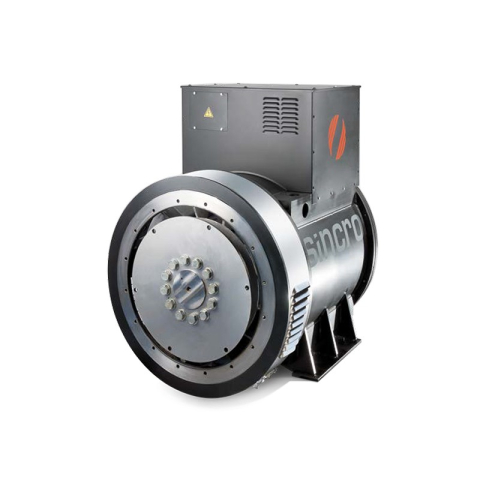

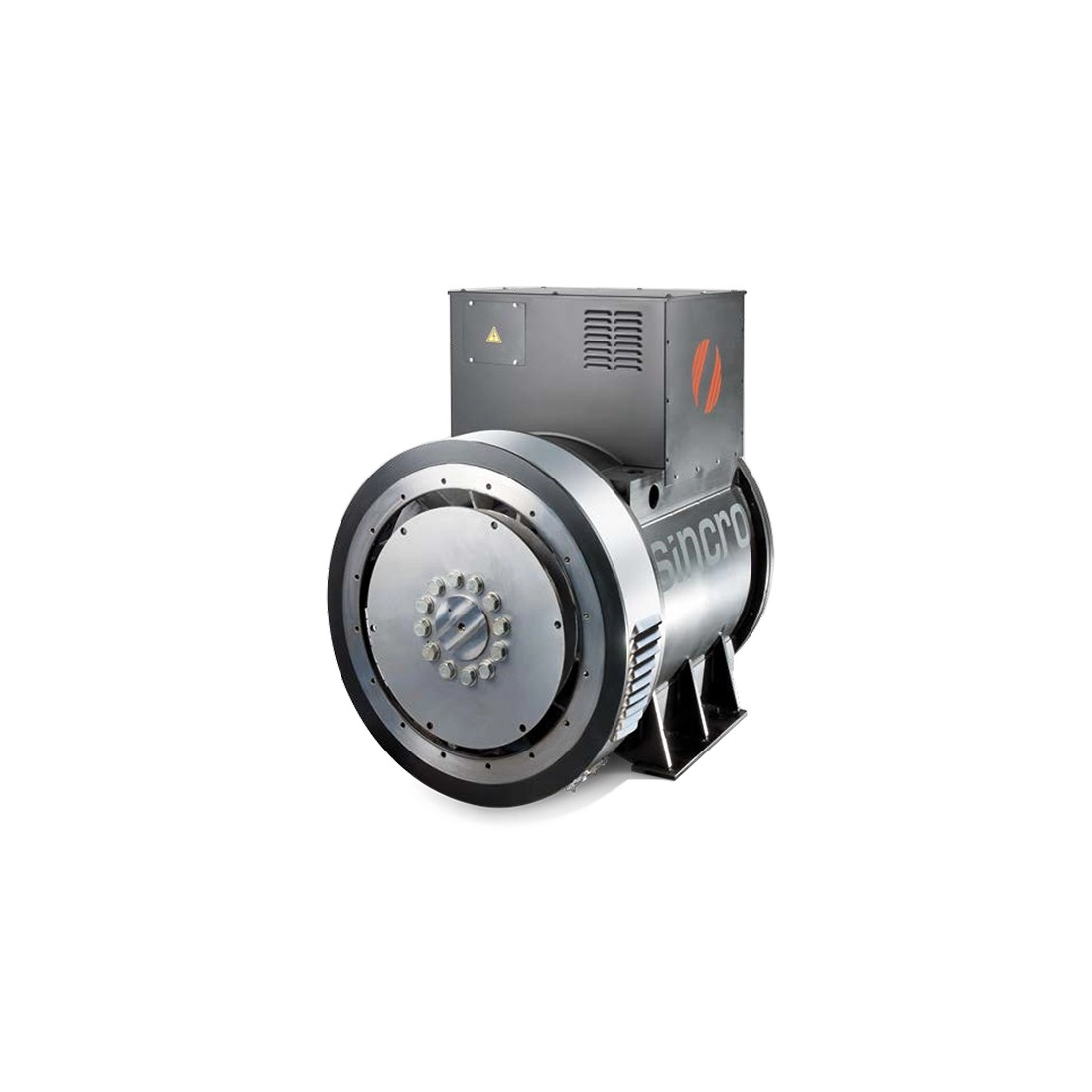

The images are purely indicative.

* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
Technical Sheet / Manuals

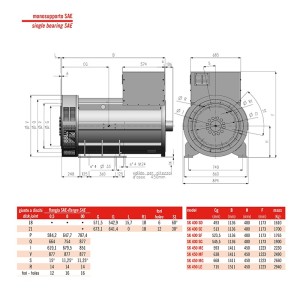

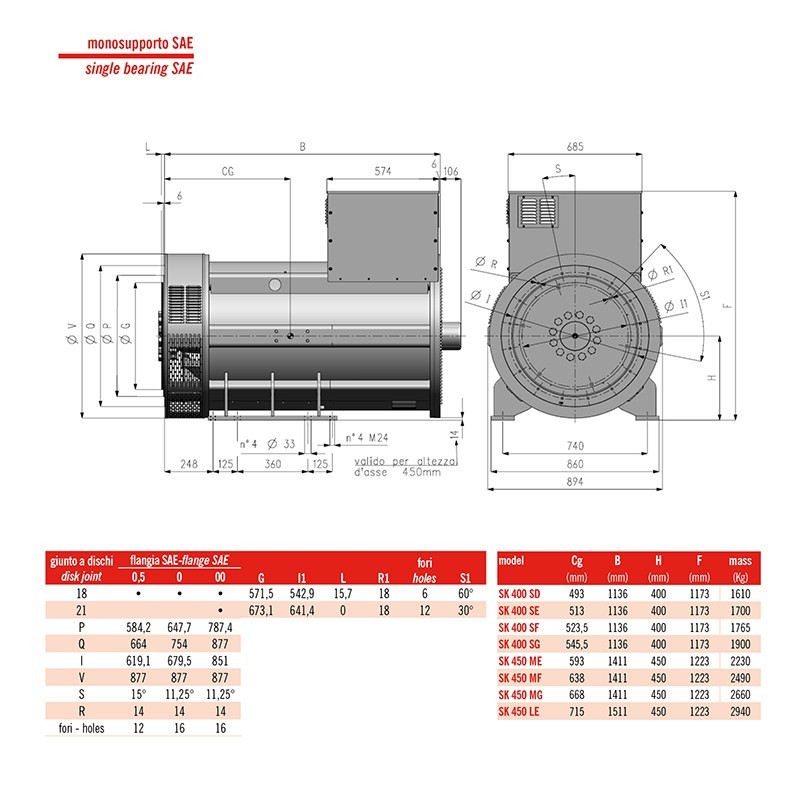

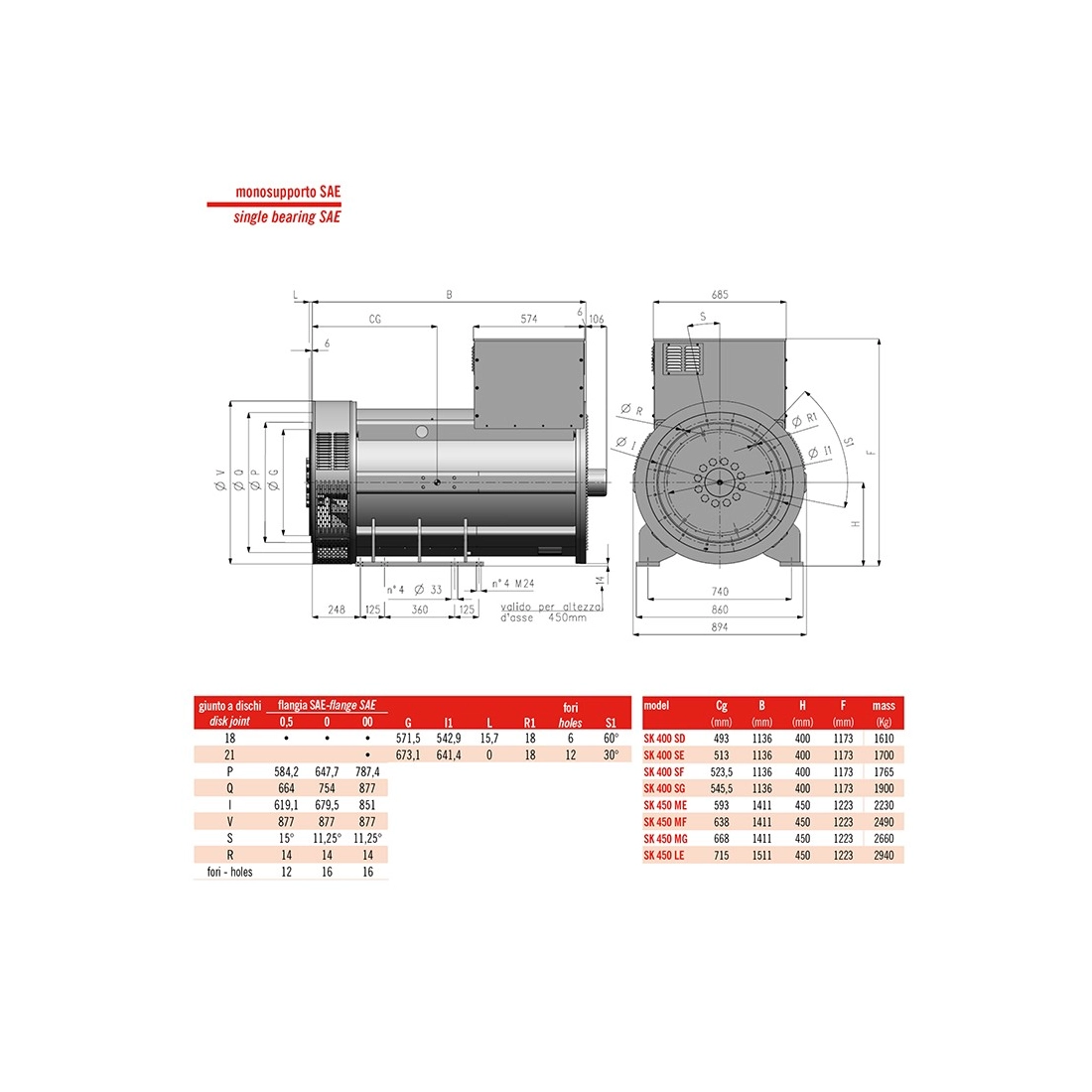

Technical data SK450

(3.9M)
Related Accessories
List price
51.414,46 € tax incl.
42.143,00 € tax excl.
Discounted Price
31.171,00 € tax incl.
25.550,00 € tax excl.
Choose the type of coupling
Ask for availability
Add to wishlist
Download PDF
Ask a question
Product: SINCRO SK450 ME SINGLE-THREE PHASE ALTERNATOR 1300KVA D-AVR
Offer on letterhead
Product: SINCRO SK450 ME SINGLE-THREE PHASE ALTERNATOR 1300KVA D-AVR
Technical features
Phase
Three phase
Frequency (Hz)
50
Voltage (V)
400
Engine rpm (rpm)
1500
Poles
4
Three-phase power (KW)
1040
Three-phase power (KVA)
1300
Efficiency (%)
95.6
Protection degree
IP23
Dry weight (Kg)
2230
Brushes
No
PMG
Yes
Type of alternator
Constant Speed
Voltage regulator
Digital AVR
Details

Three phase brushless alternator - AVR.

- Insulation class H
- IP23
- Standard voltage 400 V - 50 Hz
- Leads 6
- Winding pitch: 2/3
- Excitation PMG: standard
- Bearings: Bearings are dimensioned for heavy duty
- Transient features: Transient voltage drop for rated step load at 0.8 power factor is less than 18%
- Tropicalizzation: standard

The images are purely indicative.

* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
Technical Sheet / Manuals

Technical data SK450

(3.9M)
