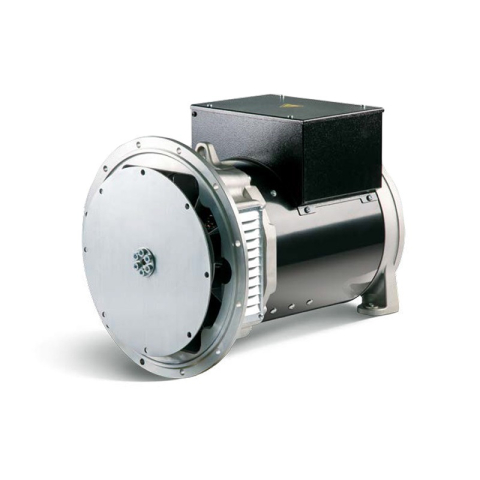

SINCRO IB4 MB SINGLE-THREE PHASE ALTERNATOR 45KVA AVR
      SINCRO IB4 MB SINGLE-THREE PHASE ALTERNATOR 45KVA AVR
      SINCRO IB4 MB SINGLE-THREE PHASE ALTERNATOR 45KVA AVR

      SINCRO IB4 MB SINGLE-THREE PHASE ALTERNATOR 45KVA AVR

      IB4 MB SAE4 d6.5

      Phase Type: Three-phase
      Maximum Threephase Output: 39.2 KW
      Continuous Threephase Output: 36.0 KW
      Maximum Threephase Output: 49.5 KVA
      Continuous Threephase Output: 45.0 KVA
      Frequency: 50 Hz
      Voltage: 400 V
      Protection Degree: IP23
      Isolation class: H
      Alternator speed: 1500 rpm
      Efficiency: 87,5%
      Number of poles: 4
      Weight: 154 kg
      Brushless
      Voltage regulator: AVR
      Type of alternator: constant speed

      List price
      4,099.20 € tax incl.
      3,360.00 € tax excl.
      Discounted Price
      2,485.14 € tax incl.
      2,037.00 € tax excl.
      Choose the type of coupling :
      Download PDF
      Custom Quote

      PERSONAL DATA


      Ask a question

      I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

      Offer on letterhead
      SINCRO
      IB4 MB SAE4 d6.5

      Data sheet

      Phase
      Single phase / Three phase
      Frequency (Hz)
      50
      Voltage (V)
      230 / 400
      Engine rpm (rpm)
      1500
      Poles
      4
      Single-phase power (KW)
      21.6
      Single-phase power (KVA)
      27
      Three-phase power (KW)
      36
      Three-phase power (KVA)
      45
      Efficiency (%)
      87.5
      Protection degree
      IP23
      Dry weight (Kg)
      154
      Brushes
      No
      Type of alternator
      Constant Speed
      Voltage regulator
      AVR

      Specific References

      New

      SINCRO IB4 MB ALTERNATOR 45KVA THREE-PHASE

      Alternator SINCRO IB4 MB three-phase with a power of 45KVA, this unit has a Brushless operation equipped with AVR voltage regulator.

      The alternator is designed for operation at frequency 50 or 60 HZ, the possibility of working on these two frequencies makes it possible the application for any voltage of service increasing its versatility, for the correct operation.

      All the components that make up the SINCRO IB4 MB alternator are subjected to a specific coating and/or impregnation process aimed at safeguarding the functionality of the generator and protecting the critical peers in the various conditions of use.

      SINCRO IB4 MB is a brushless alternator, this feature together with the high efficiency of the regulator ensure a low level of interference with radio waves.

      SINCRO alternators are all equipped with a voltage regulator, in the case of the IB4 MB AVR model.

      The voltage regulator is an electronic device that regulates the alternating current coming from the alternator and transforms it into direct current.

      In our field voltage regulators are widely used in the latest generation of synchronous generators.

      All synchronous machines need an electronic control system to work, and this device, known as "voltage regulator" or "AVR" (acronym of Automatic Voltage Regulator), guarantees the good working of the machine and above all of the electric network underneath it.

      Select the alternator that reflects thetechnical specifications you require, visit our dedicated section to understand how.

      TECHNICAL FEATURES SINCRO IB4 MB

      Phase Type: Three-phase
      Maximum Threephase Output: 39.2 KW
      Continuous Threephase Output: 36.0 KW
      Maximum Threephase Output: 49.5 KVA
      Continuous Threephase Output: 45.0 KVA
      Frequency: 50 Hz
      Voltage: 400 V
      Protection Degree: IP23
      Isolation class: H
      Alternator speed: 1500 rpm
      Efficiency: 87,5%
      Number of poles: 4
      Weight: 154 kg
      Brushless
      Voltage regulator: AVR
      Type of alternator: constant speed

      Looking for a product with different features? Here you can find the full range SINCRO and other specialized brands.

      Images and technical data are not binding and subject to change by the manufacturer
