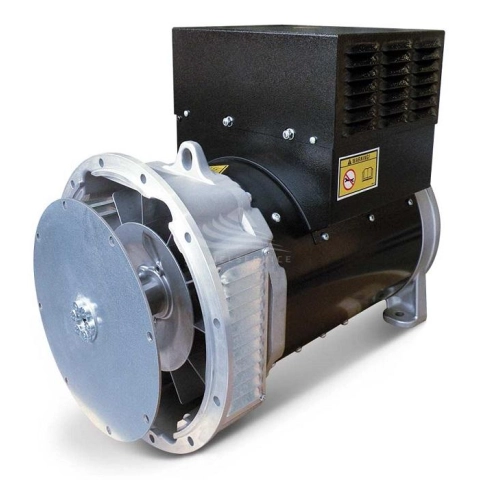

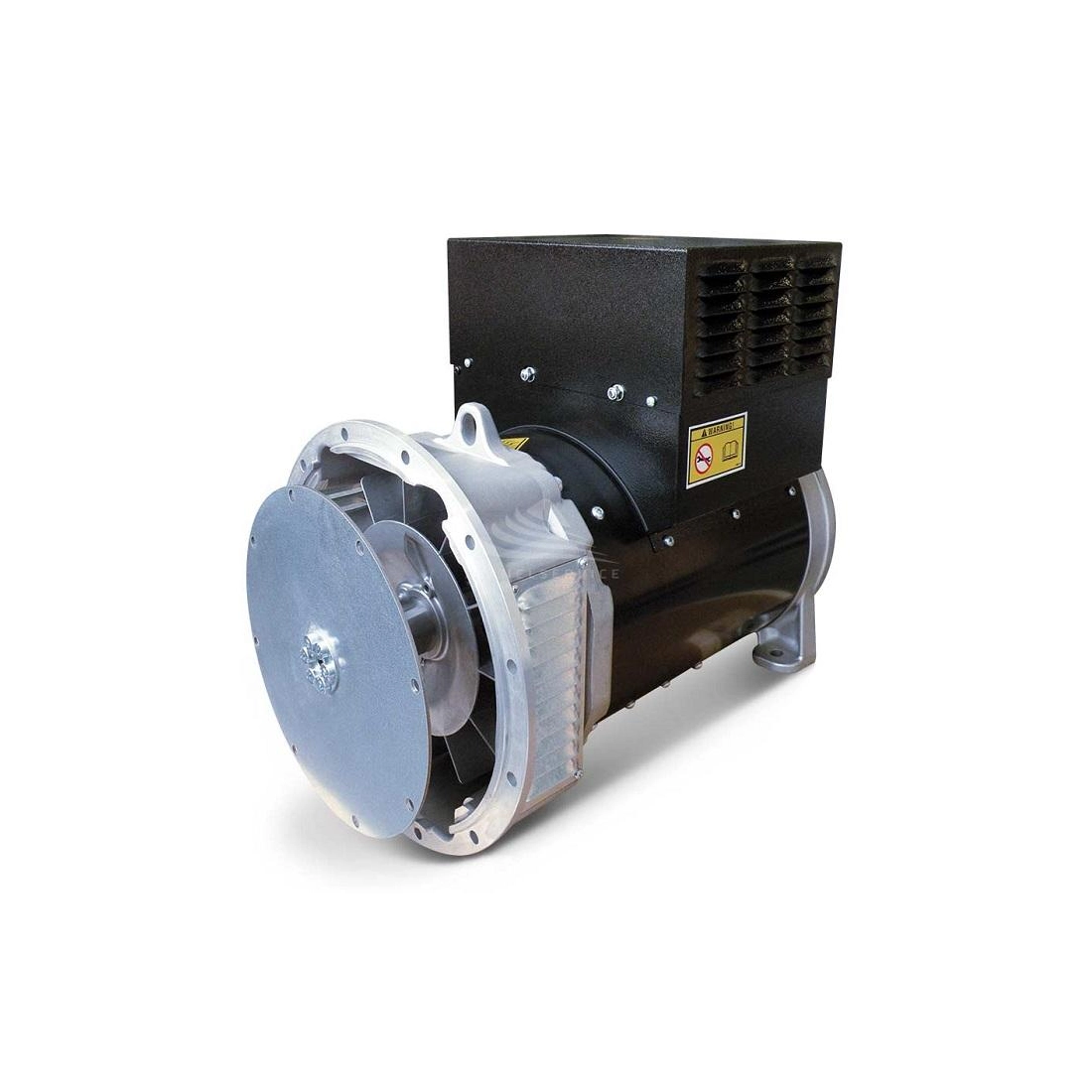

SINCRO IB 4-48/500 Synchronous DC Alternator 24 KW AVR

SINCRO DC ALTERNATOR IB
SINCRO DC ALTERNATOR IB
IB 4-48/500

Poles: 4
Voltage (V): 48
Frequency (Hz): 50
Rpm Speed: 1500
Power (KW): 24
Current (A): 500
Constant Speed Alternator
AVR
Brushless
Weight (Kg): 160
Protection: IP23

Download Technical data 24 & 48 VDC

Frequency (Hz)
50
Voltage (V)
48
Engine rpm (rpm)
1500
Poles
4
Power (KW)
24
Protection degree
IP23
Current (A)
500
Brushes
No
Type of alternator
Constant Speed
Voltage regulator
AVR
Weight (Kg)
160
Brand

Designed for applications requiring 24 & 48 VDC low voltage supply, Sincro DC power solutions are suitable both as battery chargers and emergency power supplies of auxiliary circuits, in the telecommunication, transports and industrial field.

Applications
- Battery chargers
- Low voltage LED light towers
- Power supply of auxiliary circuits, high/medium voltage disconnectors coils, signalling devices
- Power supply of monitoring and alarm systems

General features
- AVR electronic voltage regulation
- Based on three-phase synchronous alternators
- 1500 rpm or 3000 rpm with large speed tollerance
- Constant DC output voltage
- Adjustable output voltage
- Current overload protection
- Fan cooled
- Complying with EN 60034-1, IEC 60034-1, ISO 8528-3

Sectors of use
- Telecommunications
- Industry
- Transports
- Military

Advantages
- High voltage stability in a large speed range
- High efficiency
- Low voltage ripple
- High reliability
- Available with the most common couplings
- Fast recovery time during transient by step load variation

Not binding images and technical data.

* Images and technical data are not binding. Please always consult the technical data sheet released by the manufacturer. Manel Service does not assume responsibility for any changes made by the manufacturer.

Unavailable
€2,451.00 €2,451.00

This product is not available for order, please contact us and we will provide you a quotation for similar product based on your needs.
