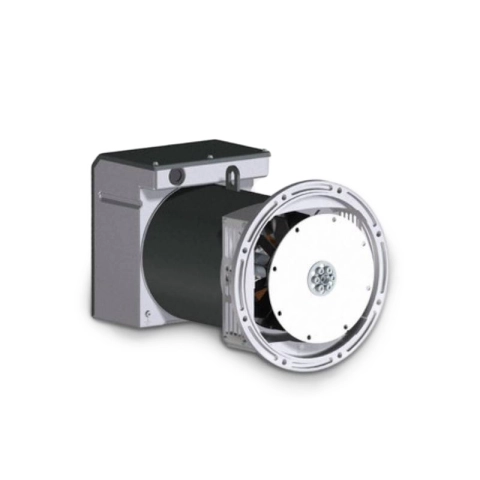

MECC ALTE ECP3-1L/2 ALTERNATOR 16KVA THREEPHASE

Alternator MECC ALTE ECP3-1L/2 with a power of 16KVA, this unit has a self-exciting and self-regulating Brushless operation equipped with voltage regulator DSR.

The rugged design makes the ECP3-1L/2 alternator suitable to meet industry requirements and the most demanding technological specifications needed in various applications. They are available as a bearing in single or dual bearing configuration. To couple them to a main motor, you can choose from a wide range of flanges and fittings.

MECC ALTE ECP3-1L/2 consists of a fixed stator with inclined slots and a rotating inductor. In addition, models above 15 KVA are equipped with a damping cage as standard. All alternator windings have a 2/3 pitch in order to reduce harmonic content.

ECP3-1L/2 can be used as singlephase as required. MECC ALTE ECP3-1L/2 is equipped with DSR digital current regulator. The regulator is suitable for operation on both threephase and singlephase generators, allowing fast, accurate and reliable set-up.

The alternators manufactured by Mecc Alte ECP3-1L/2 comply with the Italian regulation CEI 2-3 file 11111. This standard corresponds to the European standard EN 60034-1 and the international standard IEC 60034-1, is linked to the British standard BS 4999 Part 101, is equivalent to the German standard VDE 0530 Part 1 and is included in the French standard NF 51.111.

The alternators manufactured by Mecc Alte ECP3-1L/2 are in conformity with the Italian standard CEI 2-3 file 11111.

Select the alternator that reflects thetechnical specifications you require, visit our dedicated section to find out how.

TECHNICAL FEATURES OF 16KVA MECC ALTE ALTERNATOR ECP3-1L/2

Phase Type: Threephase
Maximum threephase output: 15.4 KW
Continuous threephase output: 12.8KW
Maximum threephase output: 19. 2 KVA
Threephase continuous output: 16 KVA
Frequency: 50 Hz
Voltage: 115 V /230 V / 400 V
Protection class: IP23
Alternator speed: 3000 rpm
Number of poles: 2
Efficiency: 84. 5%
Weight: 80 Kg
Constant speed alternator
Brushless
Voltage regulator: AVR
