SINCRO IB2 SB SINGLE-THREE PHASE ALTERNATOR 33KVA AVR

SINCRO THREE PHASE ALTERNATOR IB2
SINCRO THREE PHASE ALTERNATOR IB2
SINCRO THREE PHASE ALTERNATOR IB2
SINCRO THREE PHASE ALTERNATOR IB2
IB2 SB SAE3 d8

Phase: Single / Three Phase
Poles: 2
Voltage (V): 230 / 400
Frequency (Hz): 50
Rpm Speed: 3000
Single Phase Output (kVA): 19.8
Three Phase Output (kVA): 33
Constant Speed Alternator
AVR
Brushless
Weight (Kg): 117
Protection: IP23

Download Technical data IB2

Phase
Single phase / Three phase
Frequency (Hz)
50
Voltage (V)
230 / 400
Engine rpm (rpm)
3000
Poles
2
Single-phase power (KW)
15.84
Single-phase power (KVA)
19.8
Three-phase power (KW)
26.4
Three-phase power (KVA)
33
Efficiency (%)
85.3
Protection degree
IP23
Dry weight (Kg)
117
Brushes
No
Type of alternator
Constant Speed
Voltage regulator
AVR
Brand

Three phase brushless alternator - AVR.

- Insulation class H
- IP23
- Standard voltage 230/400 V - 50 Hz
- Leads 6
- Bearings: Bearings are dimensioned for heavy duty
- Transient features: Transient voltage drop for rated step load at 0.8 power factor is less than 18%
- Single-phase operation: IB2 alternators can be connected for single-phase use

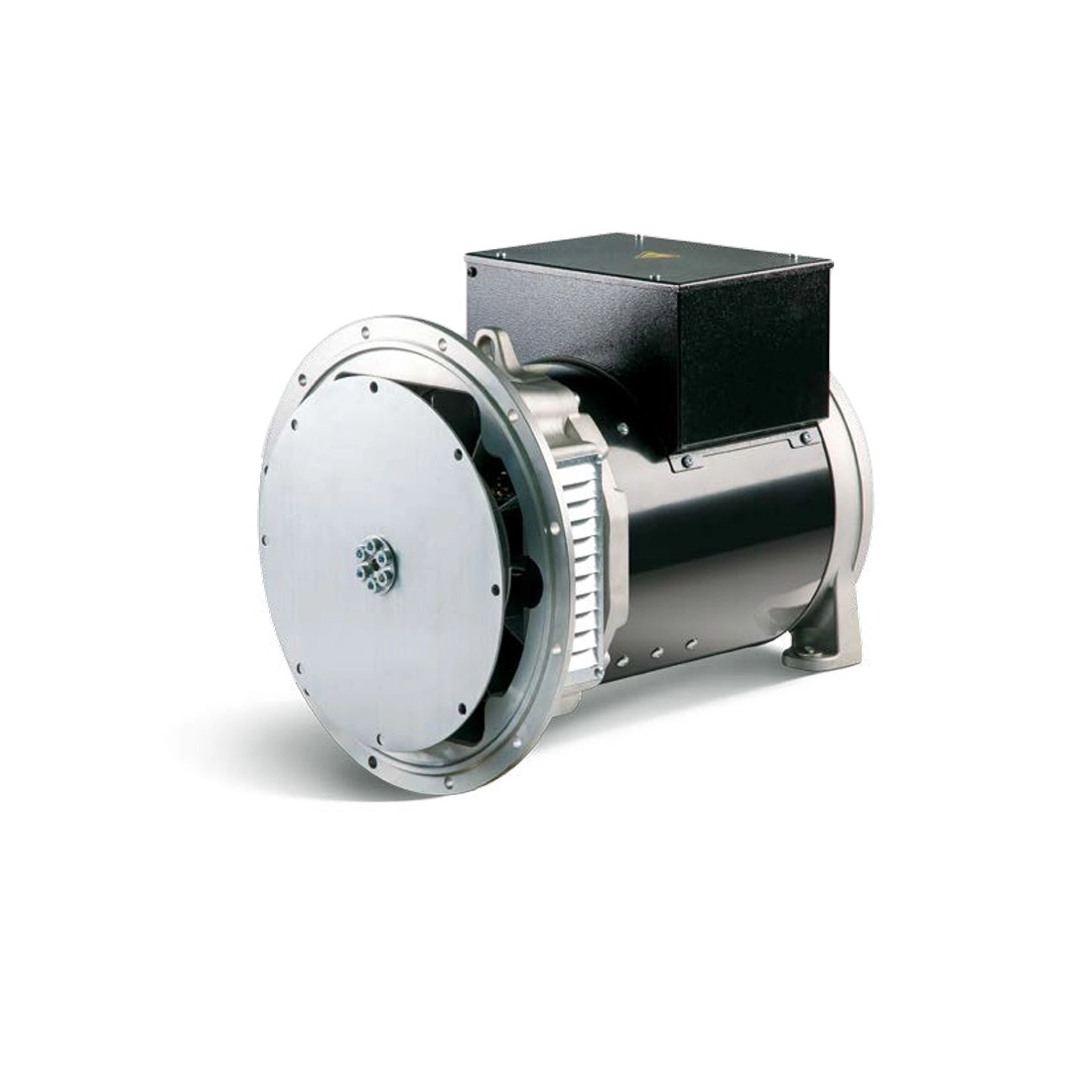

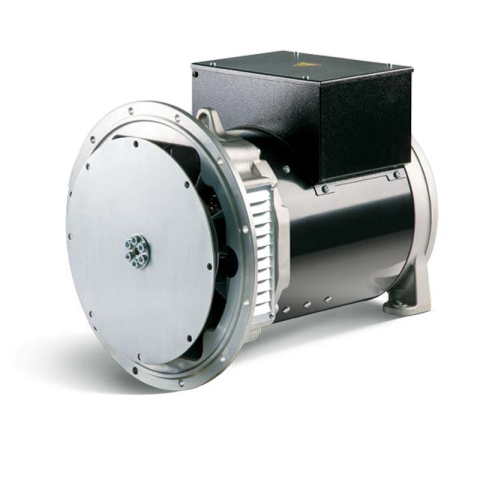

The image is purely indicative.

* Images and technical data are not binding. Please always consult the technical data sheet released by the manufacturer. Manel Service does not assume responsibility for any changes made by the manufacturer.

Complete your order with:

Unavailable
€1,585.00 €1,585.00
Choose the type of coupling
  • IM B34 - B3/B14
  • SAE3 disk joint 8
  • SAE3 disk joint 10
  • SAE3 disk joint 11.5
  • SAE4 disk joint 6.5
  • SAE4 disk joint 7.5
  • SAE4 disk joint 8
  • SAE4 disk joint 10

This product is not available for order, please contact us and we will provide you a quotation for similar product based on your needs.
