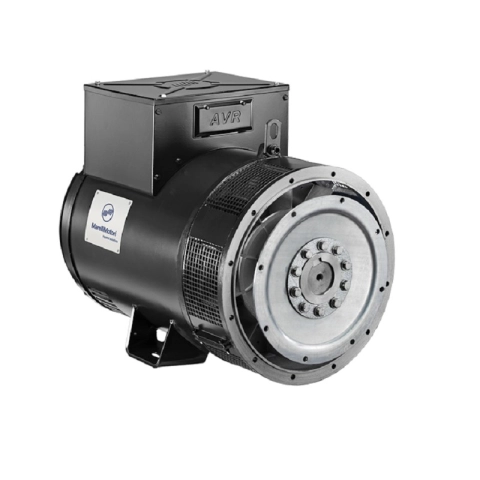

MARELLIMOTORI ALTERNATOR 12,5KVA MXB-E 160 SA4
      MARELLIMOTORI ALTERNATOR 12,5KVA MXB-E 160 SA4
      MARELLIMOTORI ALTERNATOR 12,5KVA MXB-E 160 SA4

      MARELLIMOTORI ALTERNATOR 12,5KVA MXB-E 160 SA4

      MXB-E 160 SA4 SAE4 d7.5

      ALTERNATOR 10KVA MXB-E 160 SA4

      Phase type: Three phase
      Maximum power 50Hz: 12,5 KVA
      Maximum power 50Hz: 10,0 KW
      Maximum power 60Hz: 15,6 KVA
      Maximum power 60Hz: 12, 5 KW
      Frequency: 50 - 60Hz
      Voltage: 400V / 480V
      Protection degree: IP23
      A alternator revolutions: 1500 / 1800 rpm
      Number of poles: 4
      Yield: 78.9%
      Weight: 88.0 Kg
      Constant speed alternator
      Voltage regulator: AVR

      Choose the type of coupling :
      Download PDF
      Custom Quote

      PERSONAL DATA


      Ask a question

      I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

      Offer on letterhead
      MARELLI MOTORI
      MXB-E 160 SA4 SAE4 d7.5

      Data sheet

      Phase
      Single phase / Three phase
      Maximum power three phase (KW)
      10
      Maximum power three phase (KVA)
      12.5
      Frequency (Hz)
      50 / 60
      Voltage (V)
      400
      Engine rpm (rpm)
      1500
      Poles
      4
      Efficiency (%)
      78.9
      Protection degree
      IP23
      Brushes
      No
      Type of alternator
      Constant Speed
      Voltage regulator
      AVR
      Weight (Kg)
      88

      Specific References

      New

      MARELLIMOTORi MXB-E 160SA4 ALTERNATOR 12.5KVA THREE-PHASE AVR

      MARELLIMOTORI MXB-E 160SA4 is a Alternator with a power of 12.5KVA 8KW, this unit has a self-exciting and self-regulating Brushless operation.

      MXB-E 160SA4 is designed for 50 or 60 HZ frequency operation, so it is possible to apply it for any service voltage increasing its versatility, for correct operation for one or the other frequency it is however necessary to verify that the voltage regulator settings are correct for the intended use, to avoid malfunctioning.

      MXB-E 160SA4 can be equipped with a wide assortment of accessories to meet the needs and any customer's requirements.

      The MarelliMotori Alternator is supplied with 12 terminals (7 terminals), unless specific requests from the customer.
      Normally it is possible to connect both series and parallel star alternator, in case you want to change the connections it is necessary to verify the connection of the AVR.

      MXB-E 160SA4 three-phase can be used as single-phase following the technical manual.

      MarelliMotori MXB-E 160SA4 is equipped with AVR type M00FA122A - MARK VX, suitable for synchronous generators of MARELLIMOTORI construction. The regulator is suitable for operation on both three-phase generators and single-phase generators, allowing a fast, precise and reliable setup.

      The M00FA122A is an electronic board designed by MarelliMotori, it is protected by a polyurethane resin that preserves the device from humidity, dust, aggressive environments; the voltage regulator serves to make the current stable, thus avoiding damaging the equipment connected to it, especially electronic equipment such as computers or smartphones. This AVR can be inserted in such a way as to automatically adjust the voltage and possibly also the frequency and / or electrical current according to the set values.

      The AVR designed by MarelliMotori is internally equipped with a radio noise filter, which allows to contain radio noise emitted by MarelliMotori generators within the limits set by the European regulations for industrial environments

      The AVR is equipped with an internal protection fuse (5 A, 500 V), which intervenes in case of regulator failures or very high overloads in the excitation circuit.

      Select the alternator that matches the technical specifications you require, visit our dedicated section to understand how.

      TECHNICAL FEATURES OF THE ALTERNATOR 12.5KVA THREEPHASE MXB-E 160SA4

      Phase type: Threephase
      Maximum power 50Hz: 12.5 KVA
      Maximum power 50Hz: 10.0 KW
      Maximum power 60Hz: 15.6 KVA
      Maximum power 60Hz: 12. 5 KW
      Frequency: 50 - 60Hz
      Voltage: 400V / 480V
      Protection degree: IP23
      A alternator revolutions: 1500 / 1800 rpm
      Number of poles: 4
      Yield: 78.9%
      Weight: 88.0 Kg
      Constant speed
      Voltage regulator: AVR

      Are you looking for a product with different characteristics? HERE you can find the whole range MARELLIMOTORI and other specialized brands.

      Images and technical data not binding and subject to change by the manufacturer

      ""* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.

      Download

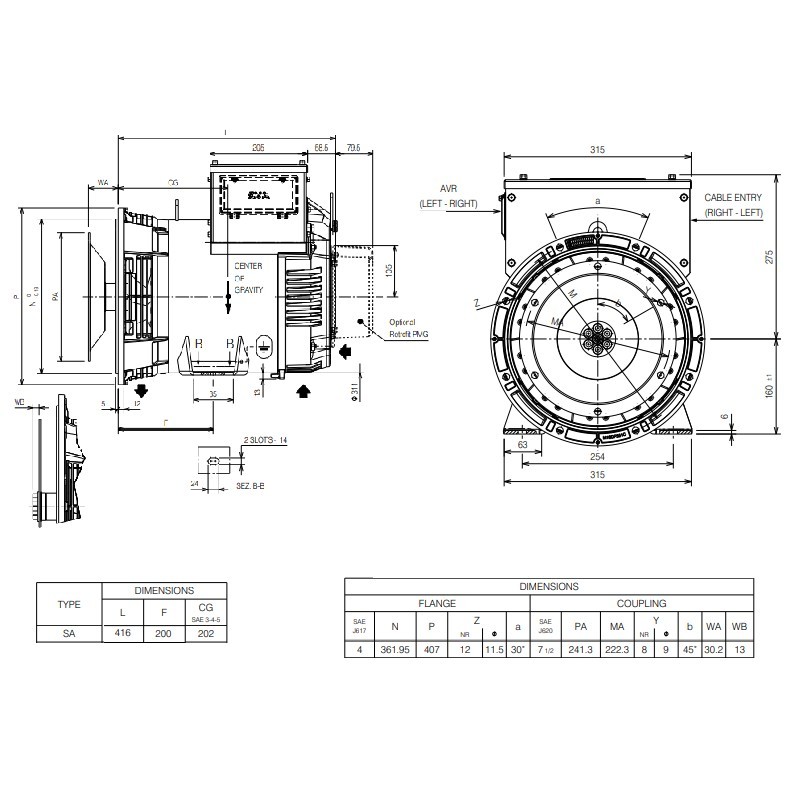

      Drawing 1 MXB-E 160

      single bearing assembly MXB-E 160

      Download (328.44KB)

      Drawing 2 MXB-E 160

      single bearing torsional MXB-E 160

      Download (148.16KB)

      MXB-E 160 SA4

      Data sheet MXB-E 160 SA4

      Download (321.09KB)
      AUXILIARY WINDING MXB-E 160
          AUXILIARY WINDING SERIES MXB-E 160
          54.91 €Price
          AUXILIARY WINDING MXB-E 160
              ANTI-CONDENSATION HEATERS 220V MXB-E 160 THIS ITEM CAN BE PURCHASED ONLY AND EXCLUSIVELY IN COMBINATION WITH THE MARELLI GENERATOR MXB-E 160.
              514.87 €Price
              ANTI-CONDENSATION HEATERS 220V MXB-E 250
                  N. 3 PTC THERMISTOR MXB-E 160 THIS ITEM CAN BE PURCHASED ONLY AND EXCLUSIVELY IN COMBINATION WITH THE MARELLI GENERATORI MXB-E 160.
                  600.67 €Price
                  ANTI-CONDENSATION HEATERS 220V MXB-E 250
                      SPECIAL VOLTAGE INCLUDING 380V, R3, R6 (LV only) MXB-E 160 THIS ITEM CAN BE PURCHASED ONLY AND EXCLUSIVELY IN COMBINATION WITH THE MARELLI GENERATORI MXB-E 160
                      257.42 €Price
                      SEPARATE AUXILIARY TERMINAL BOX MXB-E 180
                          PT100 ON N-END BEARING MXB-E 160 THIS ITEM CAN BE PURCHASED ONLY AND EXCLUSIVELY IN COMBINATION WITH THE MARELLI GENERATORI MXB-E 160
                          429.05 €Price
                          PT100 ON N-END BEARING MXB-E 160
                              PMG WITH SINGLE-PHASE SENSING AVR MARK XX SIDE MOUNTED MXB-E 160 THIS ITEM CAN BE PURCHASED ONLY AND EXCLUSIVELY IN COMBINATION WITH THE MARELLI GENERATORI MXB-E 160
                              1,458.78 €Price
                              INLET AND OUTLET FILTER MXB-E 180
                                  IP55 TERMINAL BOX MXB-E 160 THIS ITEM CAN BE PURCHASED ONLY AND EXCLUSIVELY IN COMBINATION WITH THE MARELLI GENERATORI MXB-E 160
                                  188.80 €Price
                                  INLET AND OUTLET FILTER MXB-E 180
                                      TROPICALISATION (CW1081) MXB-E 160 THIS ITEM CAN BE PURCHASED ONLY AND EXCLUSIVELY IN COMBINATION WITH THE MARELLI GENERATORI MXB-E 160
                                      54.91 €Price
                                      INLET AND OUTLET FILTER MXB-E 180
                                          PAINTING COLOUR DIFFERENT FROM RAL 9005 AND RAL 5010 FOR THE MXB-E 160 THIS ITEM CAN BE PURCHASED ONLY AND EXCLUSIVELY IN COMBINATION WITH THE MARELLI GENERATORI MXB-E 160 The price shown is valid for a minimum quantity of 10pcs with same delivery.
                                          110.00 €Price
                                          INLET AND OUTLET FILTER MXB-E 180
                                              PAINTING COLOR RAL 9005 BLACK AND RAL 5010 BLUE OF THE  MXB-E 160 THIS ITEM CAN BE PURCHASED ONLY AND EXCLUSIVELY IN COMBINATION WITH THE MARELLI GENERATORI MXB-E 160
                                              70.28 €Price
                                              INLET AND OUTLET FILTER MXB-E 180
                                                  SPECIAL PAINTING CYCLE (MM ref. F96831) FOR THE MXB-E 160 THIS ITEM CAN BE PURCHASED ONLY AND EXCLUSIVELY IN COMBINATION WITH THE MARELLI GENERATORI MXB-E 160
                                                  231.68 €Price
                                                  INLET AND OUTLET FILTER MXB-E 180
                                                      SPECIAL PAINTING CYCLE (MM ref. F96819) FOR THE MXB-E 160 THIS ITEM CAN BE PURCHASED ONLY AND EXCLUSIVELY IN COMBINATION WITH THE MARELLI GENERATORI MXB-E 160
                                                      308.91 €Price
                                                      INLET AND OUTLET FILTER MXB-E 180
                                                          SPECIAL PAINTING CYCLE (MM ref. F96826) FOR THE MXB-E 160 THIS ITEM CAN BE PURCHASED ONLY AND EXCLUSIVELY IN COMBINATION WITH THE MARELLI GENERATORI MXB-E 160
                                                          394.72 €Price
