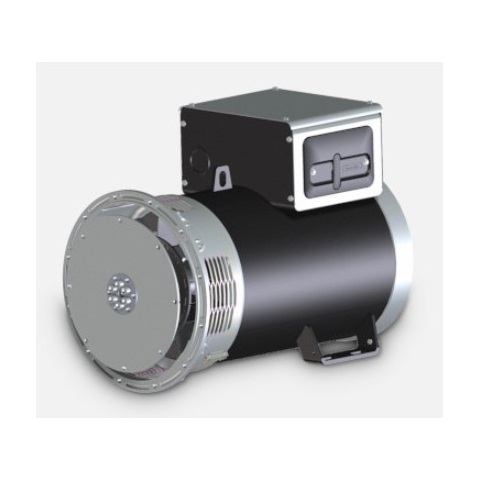

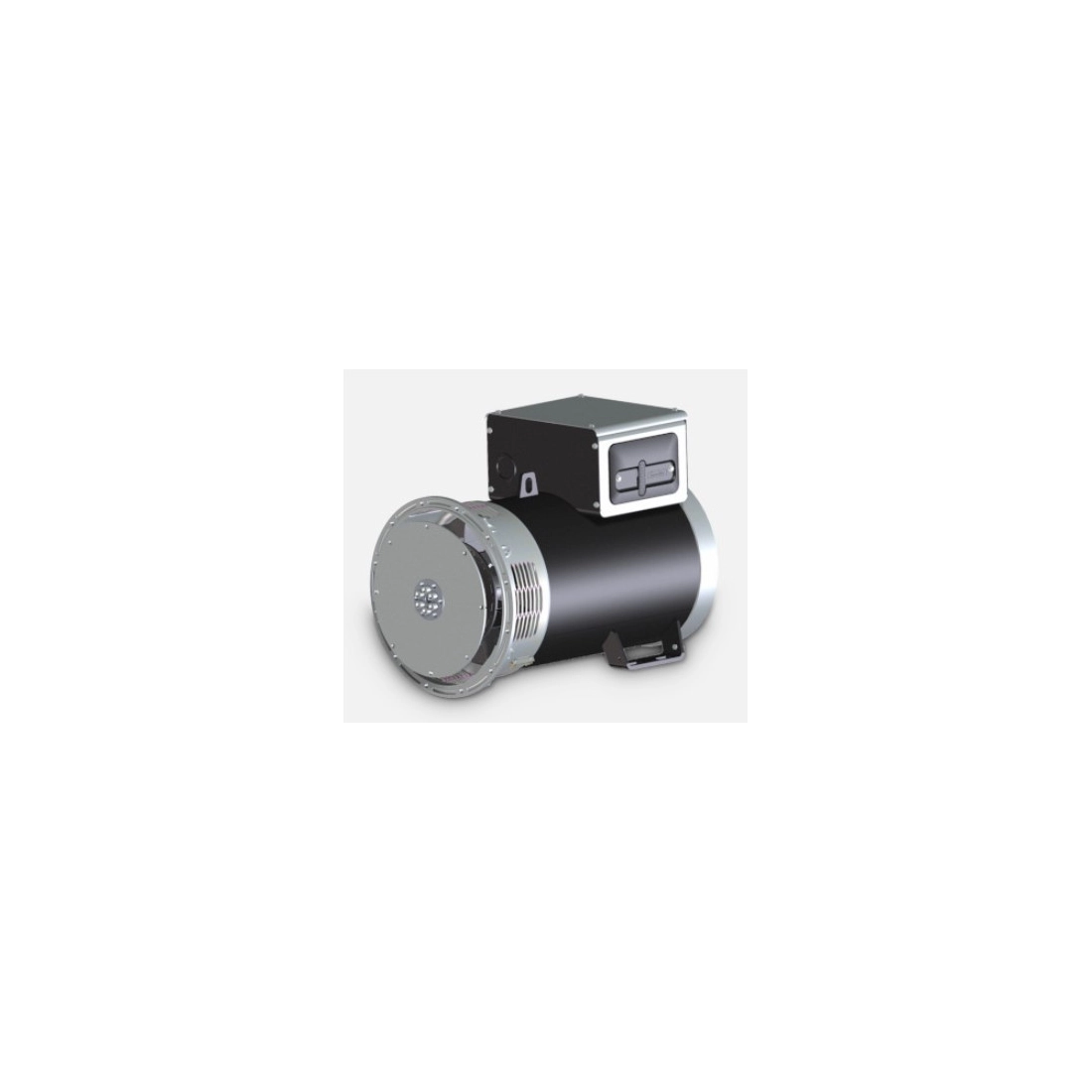

MECC ALTE ECP32-2L/4 C-TYPE THREE PHASE ALTERNATOR 82.5 KVA AVR
      MECC ALTE ECP32-2L/4 C-TYPE THREE PHASE ALTERNATOR 82.5 KVA AVR
      MECC ALTE ECP32-2L/4 C-TYPE THREE PHASE ALTERNATOR 82.5 KVA AVR

      MECC ALTE ECP32-2L/4 C-TYPE THREE PHASE ALTERNATOR 82.5 KVA AVR

      ECP32-2L/4 C-TYPE SAE3 d6.5

      Phase Type: Single Phase / Three Phase
      Maximum Three Phase Power: 91 KVA / 72.8 KW
      Three Phase Continuous Use Power: 82. 5 KVA / 66 KW
      Maximum single-phase power: 52 KVA / 52 KW
      Single-phase continuous use power: 47 KVA / 47 KW
      Frequency: 50 / 60 Hz
      Voltage: 230 V / 400 V
      Protection class: IP23
      Alternator speeds: 1500 / 1800 rpm
      Number of poles: 4
      Efficiency: 90. 5%
      Weight: 252 Kg
      Constant speed alternator
      Brushless
      Voltage controller: DSR AVR

      List price
      4,853.16 € tax incl.
      3,978.00 € tax excl.
      Discounted Price
      3,154.55 € tax incl.
      2,585.70 € tax excl.
      Choose the type of coupling :
      Download PDF
      Custom Quote

      PERSONAL DATA


      Ask a question

      I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

      Offer on letterhead
      MECC ALTE
      ECP32-2L/4 C-TYPE SAE3 d6.5

      Data sheet

      Phase
      Single phase / Three phase
      Maximum power single phase (KW)
      52
      Continuous power single phase (KW)
      47
      Maximum power single phase (KVA)
      52
      Continuous power single phase (KVA)
      47
      Maximum power three phase (KW)
      72.8
      Continuous power three phase (KW)
      66
      Maximum power three phase (KVA)
      91
      Continuous power three phase (KVA)
      82.5
      Frequency (Hz)
      50 / 60
      Voltage (V)
      230 / 400
      Engine rpm (rpm)
      1500 / 1800
      Poles
      4
      Single-phase power (KVA)
      52
      Three-phase power (KVA)
      91
      Efficiency (%)
      91
      Protection degree
      IP23
      Acoustic pressure
      58 dB(A) at 7 m
      Brushes
      No
      PMG
      No
      Type of alternator
      Constant Speed
      Voltage regulator
      AVR
      Weight (Kg)
      252
      Precision of voltage regulation
      ± 1%

      Specific References

      New

      MECC ALTE ECP32-2L/4 C-TYPE THREE PHASE ALTERNATOR 82.5 KVA AVR

      The ECP32 C-Type range has many product features designed into the alternator.

      C-Type alternators make the most of energy conversion to produce the maximum power to size ratio.
      C-Type is now one of the simplest alternators to assemble, integrate, configure and maintain with OEM equipment.
      Our aim was to deliver maximum power from the smallest, lightest and strongest alternators and our designers have lavished the C-Type with much more flexibility.
      The entire series is manufactured according to, and complies with, the most common specifications such as CEI 2-3, IEC 34-1, EN 60034-1, VDE 0530, BS 4999-5000, CAN/ CSA-C22.2 No14-95- No100-95.

      The ECP32 range has many product features designed into the alternator.
      Self-regulation is obtained through a digital electronic regulator that is fed by an auxiliary winding.
      We guarantee an almost constant supply from the generator - under any possible operating condition.
      A rotating inductor is fitted with a damper cage.

      The versatility of Mecc Alte products and their robust design means that ECO and ECP series are formed to meet the requirements of industry and the high technological specifications of applications. They are available either as single bearing or as twin bearing with a double support. In order to couple them to a prime mover, it is possible to choose among a wide range of flanges and couplings.

      All alternators consist of a fixed stator with skewed slots and a rotating inductor fitted. In addition, models above 15 KVA are fitted with a damper cage as standard. All alternator windings have a 2/3rd pitch in order to reduce harmonic content.

      The generators manufactured by Mecc Alte are in compliance with the CEI 2-3 file 11111 national standard. This Italian standard corresponds to the European standard EN 60034-1 and to the international standard IEC 60034-1; it is related also to the British standard BS 4999 Part 101; it is equivalent to the German standard VDE 0530 Part 1, and it is included in the French standard NF 51.111. Mecc Alte generators meet also the requirements of international ISO 8528-3 standard (Reciprocating internal combustion engine driven alternating current generating sets – Part 3: Alternating current generators for generating sets) and the requirements of NEMA MG 1-2011 (Motors and Generators).

      Not binding images and technical data.

      * Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
      Mecc Alte - Radio-VDE 0875 CLASS K interference suppressor kit for ECP
          Radio-VDE 0875 CLASS K interference suppressor kit for ECP32 alternators.
          155.00 €Price
          Mecc Alte - Parallel TA for ECP32 alternators.
              Parallel current transformer TA (including saddle when required) for ECP32 alternators.
              185.00 €Price
              Mecc Alte - Voltage control potentiometer for ECP32 alternators.
                  Voltage control potentiometer for ECP32 alternators.
                  48.31 €Price
                  Mecc Alte - Diode RBD-1 failure sensor for ECP32 alternators.
                      Diode RBD-1 failure sensor for ECP32 alternators.
                      356.15 €Price
                      Mecc Alte - Coupling bell for type B3-B14 for ECP32 alternators.
                          Coupling bell for type B3-B14 for ECP32 alternators.
                          601.07 €Price
                          Mecc Alte - PTCK150 temperature sensor for ECP32 alternators.
                              PTCK150 temperature sensor (1 set of 3) for ECP32 alternators.
                              235.30 €Price
                              Mecc Alte - PT100 RTD sensor on windings for ECP32 alternators.
                                  PT100 RTD sensor on windings (1 of 3) for ECP32 alternators.
                                  252.20 €Price
                                  Mecc Alte - PT100 RTD sensor on windings for ECP32 alternators.
                                      PT100 RTD sensor on windings (2 of 3) for ECP32 alternators.
                                      478.40 €Price
                                      Mecc Alte - PT100 RTD (for bearing) for ECP32 alternators.
                                          PT100 RTD (for bearing) for ECP32 alternators.
                                          404.46 €Price
                                          Mecc Alte - Bimetallic probe (thermal protection) for ECO alternators.
                                              Bimetallic probe (thermal protection) for ECP32 alternators.
                                              209.95 €Price
                                              Mecc Alte - DER1 AVR (three phase sensing) for ECP32 alternators.
                                                  DER1 AVR (three phase sensing) (+/- 0.5%) (factory fitted only) for ECP32 alternators.
                                                  200.20 €Price
                                                  Mecc Alte - USB 2 DxR digital interface for ECP32 alternators.
                                                      USB 2 DxR digital interface for ECP32 alternators.
                                                      200.20 €Price
                                                      Mecc Alte - DER2 AVR (three phase sensing) for ECP32 alternators.
                                                          DER2 AVR (three phase sensing integrated USB) (+/- 0.5%) (factory fitted only) for ECP32 alternators.
                                                          280.15 €Price
                                                          Mecc Alte - High terminal box for ECP32 alternators.
                                                              High terminal box for ECP32 alternators.
                                                              53.93 €Price
                                                              Mecc Alte - IP23 protection (Recommended for marine use) for ECP32.
                                                                  IP23 protection (Recommended for marine use) for ECP32 alternators.
                                                                  180.88 €Price
                                                                  Mecc Alte - Air filter for rear inlet (loss 7%) for ECP32 alternators.
                                                                      Air filter for rear inlet (loss 7%) for ECP32 alternators.
                                                                      281.45 €Price
                                                                      Mecc Alte - IP45 protection screen for ECP32 alternators.
                                                                          IP45 protection screen (Derating applies) for ECP32 alternators.
                                                                          923.65 €Price
                                                                          Mecc Alte - Anti-condensation heater - rear part for ECP32 alternators.
                                                                              Anti-condensation heater - rear part (factory fitted) for ECP32 alternators.
                                                                              204.48 €Price
                                                                              Mecc Alte - Anti-condensation heater - front part for ECP32 alternators
                                                                                  Anti-condensation heater - front part (factory fitted) for ECP32 alternators.
                                                                                  204.48 €Price
                                                                                  Mecc Alte - Anti-condensation heater on the rear shield for ECP32.
                                                                                      Anti-condensation heater on the rear shield (can be integrated) for ECP32 alternators.
                                                                                      204.48 €Price
                                                                                      Mecc Alte - Grey impregnation (exciter and main stator Grey) for ECP32
                                                                                          Grey impregnation (exciter and main stator Grey) for ECP32 alternators.
                                                                                          241.00 €Price
                                                                                          Mecc Alte - Grey impregnation + for ECP32 alternators.
                                                                                              Grey impregnation + (Grey main stator and Black exciter stator) for ECP32 alternators.
                                                                                              297.05 €Price
                                                                                              Mecc Alte - Total Impregnation + for ECP32 alternators.
                                                                                                  Total Impregnation + (Black main stator & exciter stator, Grey rotor) for ECP32 alternators.
                                                                                                  390.00 €Price
