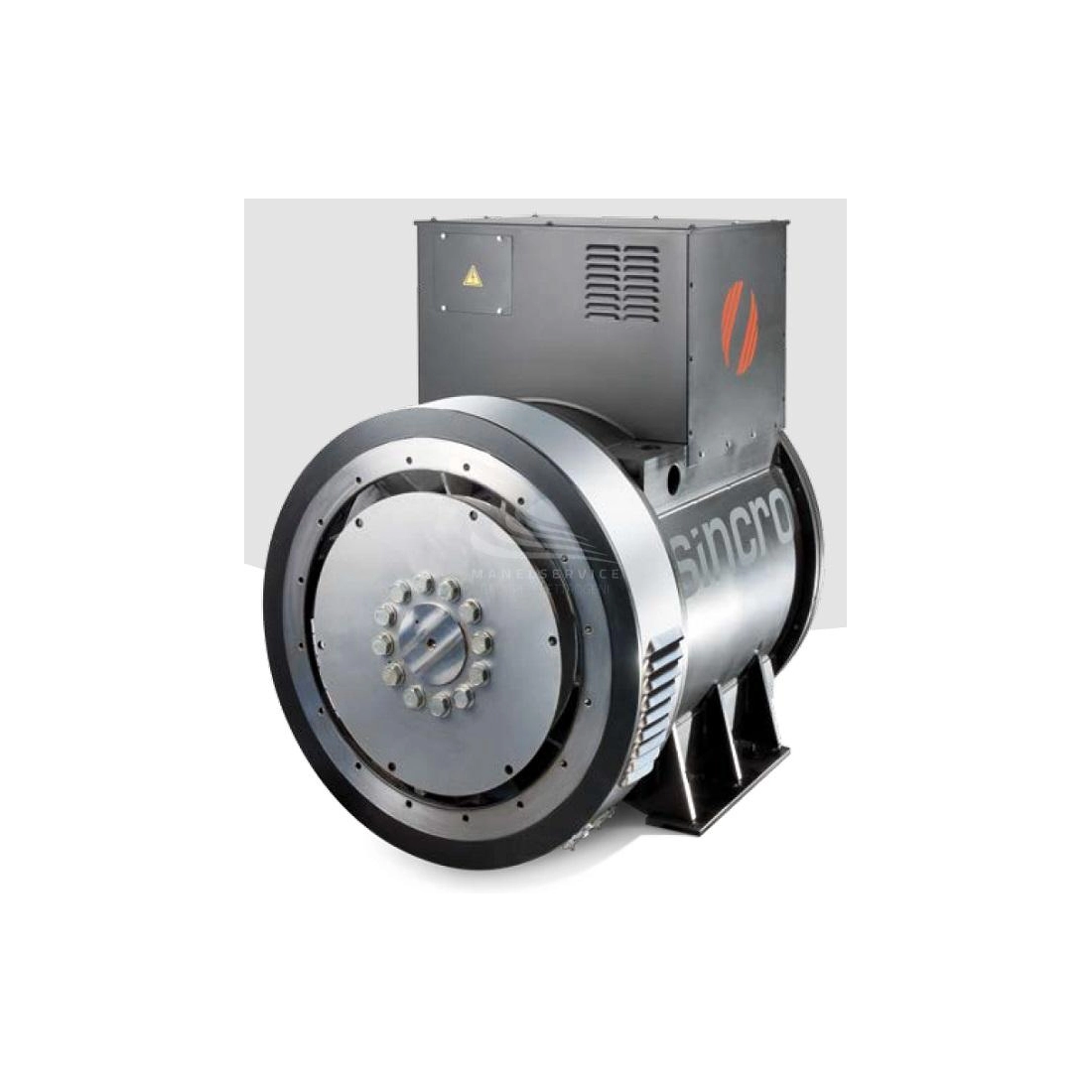

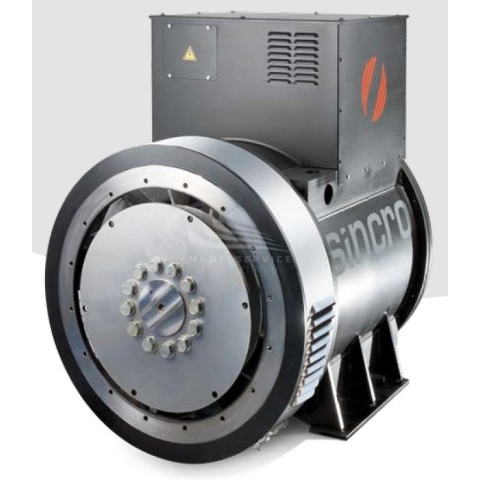

SINCRO SK500 MB Three Phase Synchronous AC Alternator 2000 kVA PMG D-AVR

SINCRO THREE PHASE ALTERNATOR SK500
search
  • SINCRO THREE PHASE ALTERNATOR SK500
  • SINCRO THREE PHASE ALTERNATOR SK500
SINCRO
SK500 MB SAE0 d18
New product

Phase: Three Phase
Poles: 4
Voltage (V): 400
Frequency (Hz): 50
Rpm Speed: 1500
Single Phase Output (kVA): ----
Three Phase Output (kVA): 2000
Constant Speed Alternator
D-AVR
Brushless
PMG
Weight (Kg): 3605
Protection: IP23

Technical features
Phase
Three phase
Frequency (Hz)
50
Voltage (V)
400
Engine rpm (rpm)
1500
Poles
4
Three-phase power (KW)
1600
Three-phase power (KVA)
2000
Efficiency (%)
96.1
Protection degree
IP23
Details

Three phase brushless alternator - AVR.

- Insulation class H
- IP23
- Standard voltage 400 V - 50 Hz
- Leads 4
- Excitation PMG: standard
- Bearings: Bearings are dimensioned for heavy duty
- Transient features: Transient voltage drop for rated step load at 0.8 power factor is less than 18%
- Tropicalizzation: standard

The images are purely indicative.

Technical Sheet / Manuals
