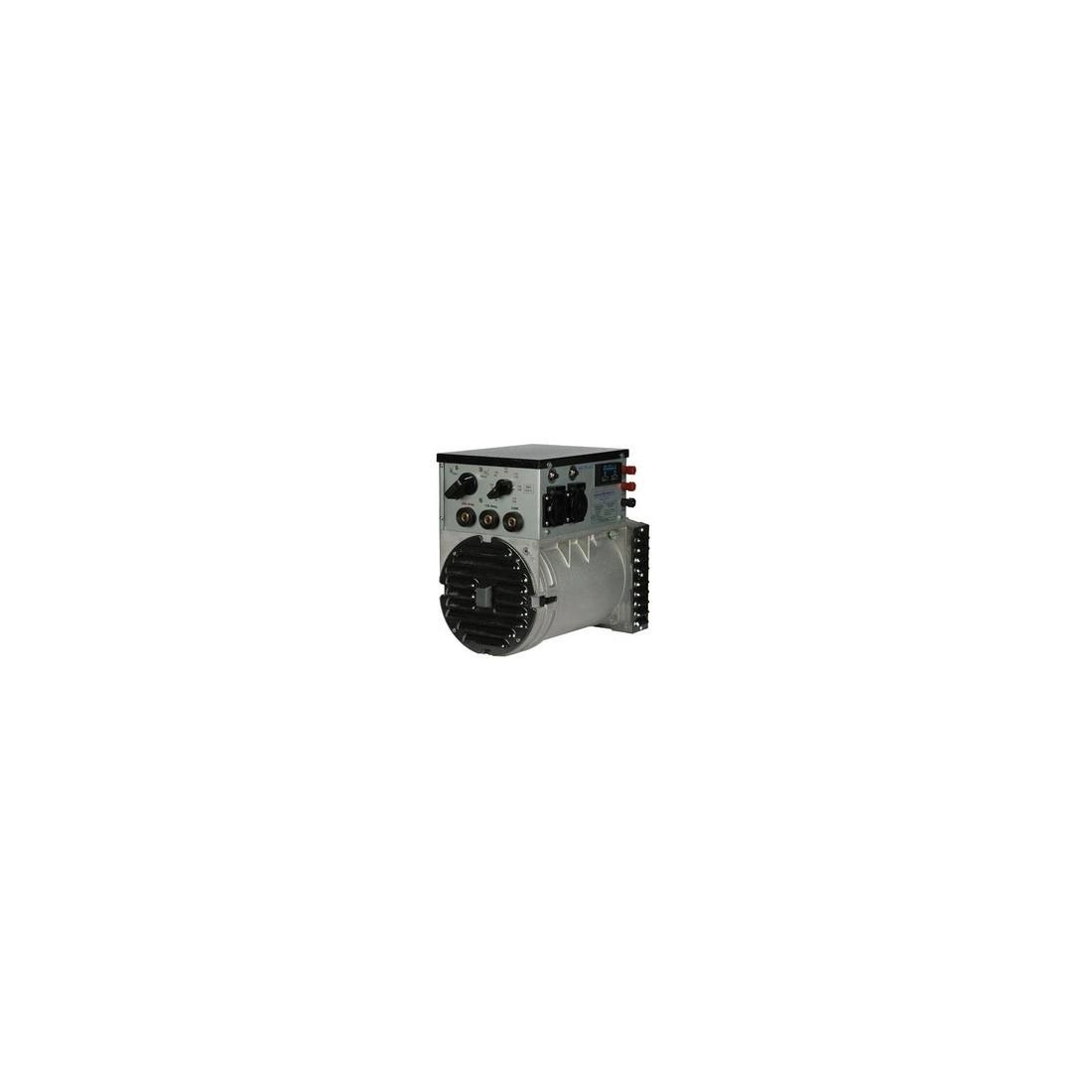

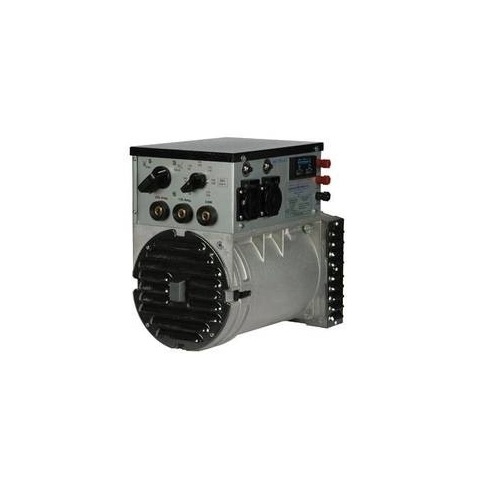

ZANARDI HM1 180 A.C. Brushless Alternator-Welder

Reference HM1 180 A.C. J609b OPTN1

Rpm: 3000 rpm
Frequency: 50 Hz
Single-phase power: 6 KVA
Voltage: 115/230 V
T.H.D.: Less than 6%.
Cos Phi: 1
Degree of protection: IP23
Voltage Regulator: Capacitor
Welding machine function:
Welding type: electrode (MMA)
Welding current: 55-180 Ampere
Welding voltage: 39-58 V
AC welding voltage: 21.5-27 V
Usage factor: 180 A at 35% - 140 A at 60%
Electrode diameter: 1.5-4 mm
Drive power: 11 Hp
Noise level: 60 dB(A) at 7 meters
Air volume: 3.28 m³/min
Weight: 39 Kg

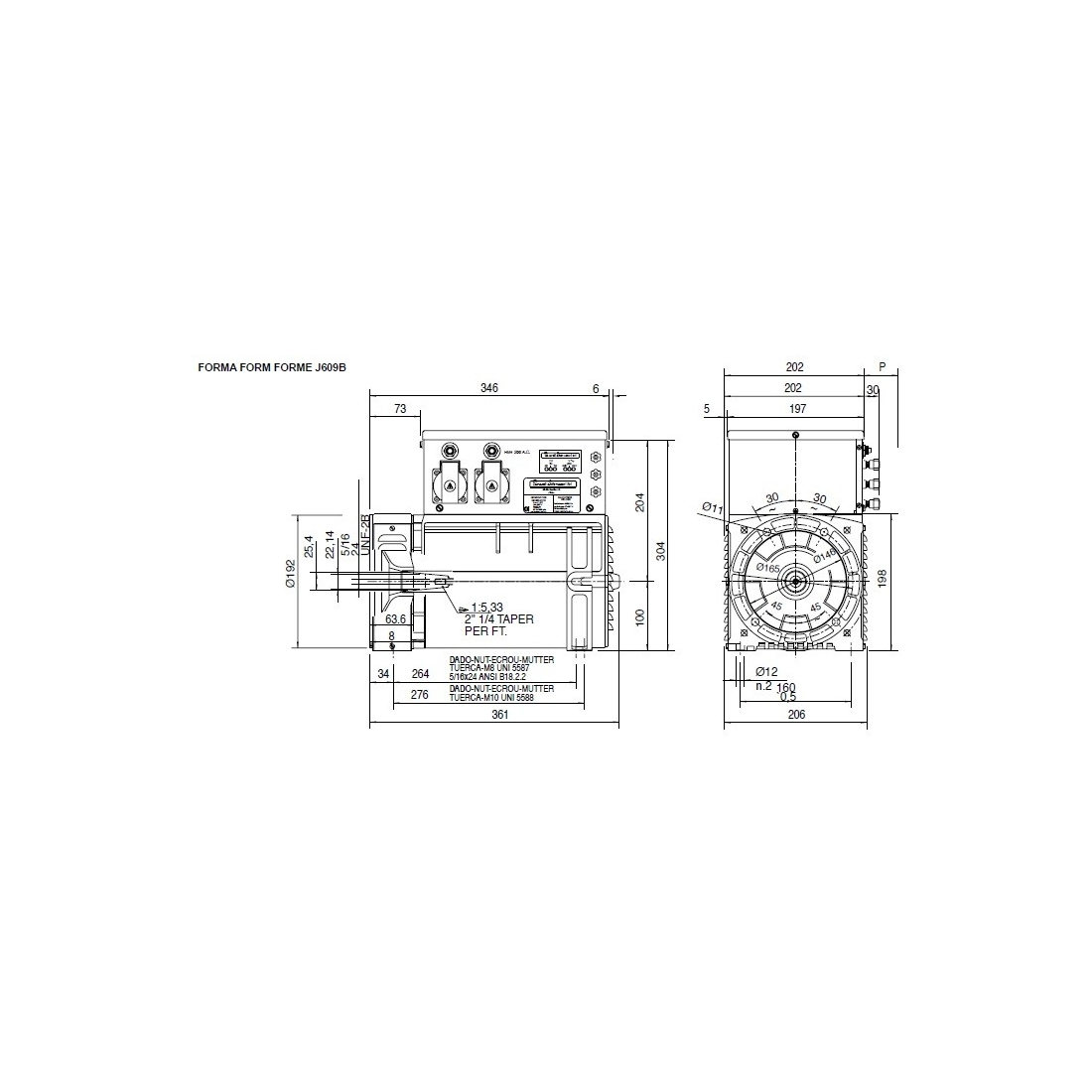

Length: 346 mm - 396 mm in form B3B14
Width: 236 mm
Height: 304 mm - 318 mm in shape B3B14

Download Technical Data HM1 180 Download Manual HM1 180

Product Details
Description

Phase: Single phase
Continuous power single phase (KW): 6
Continuous power single phase (KVA): 6
Frequency (Hz): 50
Voltage (V): 115 / 230
Engine rpm (rpm): 3000
Poles: 2
Single-phase power (KVA): 6
Protection degree: IP23
Motor insulation class: H
Mechanical power (hp): 11
Current (A): 180
Current range (A): 55-180
Welding current (A): 180 A @ 35% - 140 A @ 60%
Welding voltage min/max (V): 21.5-27
Open circuit voltage (V): 58
Diameter electrodes (mm): 1.5-4
Maximum diameter electrodes (mm): 4
Type of welding current: AC
Type of welding: MMA
Acoustic pressure: 60 dB(A) at 7 m
Length (mm): 346
Width (mm): 236
Height (mm): 304
Brushes: No
PMG: No
Type of alternator: Constant Speed
Voltage regulator: Capacitor
Weight (Kg): 39

The AC brushless generators-welders series denominated HM1 guarantees unlimited operation with minimum maintenance. In fact, its particular system enables the user to have full maximum power – either as a single phase generator or as a welder. With a distribution along the sides of the unit for output sockets, the product is really easy to use and delivers great accessibility and a comprehensive number of different panel options.

The AC welder is governed by a selector switch which controls the two functions (generator or welder) and by a commutator which regulates the welding current with seven positions on two scales (one scale for 130 amp version). All of this is packed inside a solid and rugged aluminium structure with a compact and light design and IP23 protection level.
All units have insulation systems to Class H requirements through advanced impregnation processes and material selection.

The HM1 series has been engineered to satisfy the most common end-user needs and the use of a single phase generator with good performances is complemented by an excellent AC welder. This permits the use of the most common diameters of rutile-type electrodes.

Not-binding images and data.
