SINCRO SK225 LS SINGLE-THREE PHASE ALTERNATOR 125KVA AVR

SINCRO THREE PHASE ALTERNATOR SK225
SINCRO THREE PHASE ALTERNATOR SK225
SINCRO THREE PHASE ALTERNATOR SK225
SINCRO THREE PHASE ALTERNATOR SK225
SK225 LS SAE3 d8

Phase: Three Phase
Poles: 4
Voltage (V): 400
Frequency (Hz): 50
Rpm Speed: 1500
Single Phase Output (kVA): ----
Three Phase Output (kVA): 125
Constant Speed Alternator
AVR
Brushless
Weight (Kg): 350
Protection: IP23

Download Technical data SK225

Phase
Three phase
Frequency (Hz)
50
Voltage (V)
400
Engine rpm (rpm)
1500
Poles
4
Three-phase power (KW)
100
Three-phase power (KVA)
125
Efficiency (%)
92.3
Protection degree
IP23
Dry weight (Kg)
350
Brushes
No
Type of alternator
Constant Speed
Voltage regulator
AVR
Brand

Three phase brushless alternator - AVR.

- Insulation class H
- IP23
- Standard voltage 400 V - 50 Hz
- Leads 6
- Bearings: Bearings are dimensioned for heavy duty
- Transient features: Transient voltage drop for rated step load at 0.8 power factor is less than 18%
- Tropicalizzation: standard

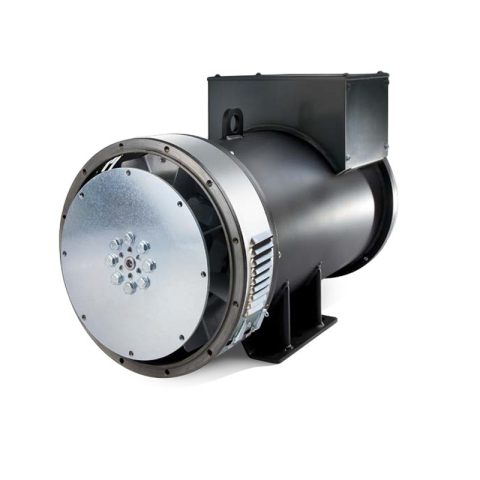

The image is purely indicative.

* Images and technical data are not binding. Please always consult the technical data sheet released by the manufacturer. Manel Service does not assume responsibility for any changes made by the manufacturer.

Complete your order with:

Unavailable
€3,637.00 €3,637.00
Choose the type of coupling
  • IM B34 - B3/B14
  • SAE3 disk joint 8
  • SAE3 disk joint 10
  • SAE3 disk joint 11.5
  • SAE2 disk joint 8
  • SAE2 disk joint 10
  • SAE2 disk joint 11.5

This product is not available for order, please contact us and we will provide you a quotation for similar product based on your needs.
