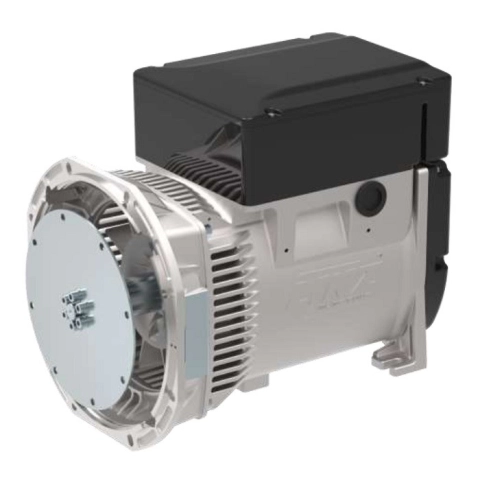

LINZ E1C13S A/4 Single-phase alternator 115/230V 5.5 kVA 50 Hz 60 Hz Brushless

LINZ E1C13S A/4 Single-phase alternator 115/230V 5.5 kVA 50 Hz Brushless
LINZ E1C13S A/4 Single-phase alternator 115/230V 5.5 kVA 50 Hz Brushless
LINZ E1C13S A/4 Single-phase alternator 115/230V 5.5 kVA 50 Hz Brushless
LINZ E1C13S A/4 Single-phase alternator 115/230V 5.5 kVA 50 Hz Brushless
E1C13S A/4 J609b 50 Hz

Rated power at 50Hz (kVA): 5.5
Rated power factor: 1
Rated temperature (°C): 40
Control system: self-excited
Design: brushless
Type of regulation: capacitor
Insulation class: H
Frequency: 50 Hz and 60 Hz
Protection: IP21
1500 rpm
Maximum excess travel speed (rpm): 2250
110% overload of rated power for one hour in a 6-hour cycle
Airflow requirement (m3/min): 9.2 at 50Hz
Suppression standard R.F.F.I. EN55011

Download Technical Data E1C13S A/4

Phase
Single phase
Continuous power single phase (KW)
5.5
Continuous power single phase (KVA)
5.5
Frequency (Hz)
50 / 60
Voltage (V)
115 / 230
Engine rpm (rpm)
1500
Alternator
Synchronous, brushless
Poles
4
Single-phase power (KVA)
5.5
Protection degree
IP21
Motor insulation class
H
Length (mm)
405
Width (mm)
270
Height (mm)
379
Brushes
No
Type of alternator
Constant Speed
Voltage regulator
Capacitor
Weight (Kg)
44
Brand

LINZ E1C13/4 series are single-phase 4 poles brushless alternators with an auxiliary winding loaded on a capacitor regulating the voltage.
This series has been designed for application in light towers with metal halide, halogen lamps or LED.

CHARACTERISTICS

  • Innovative rotating diode system
  • Low harmonic content
  • High efficiency
  • Type: Single-phase alternators
  • Poles: 4
  • Phases: Single-phase
  • Regulation: CAPACITOR
  • Application: PORTABLE, LIGHTING TOWERS
  • product available in 50 Hz and 60 Hz versions

* Images and technical data are not binding. Please always consult the technical data sheet released by the manufacturer. Manel Service does not assume responsibility for any changes made by the manufacturer.

Complete your order with:

Unavailable
€738.61 €738.61
Choose the type of coupling
  • IMB35 J609b cone 25.4
  • IM B34 - B3/B14
  • IM B35 - B3/B9 cone 30
  • IM B35 - B3/B9 cone 38
  • SAE3 disk joint 6.5
  • SAE3 disk joint 7.5
  • SAE3 disk joint 8
  • SAE3 disk joint 10
  • SAE3 disk joint 11.5
  • SAE4 disk joint 6.5
  • SAE4 disk joint 7.5
  • SAE4 disk joint 8
  • SAE4 disk joint 10
  • SAE4 disk joint 11.5
  • SAE5 disk joint 6.5
  • SAE5 disk joint 7.5
  • SAE5 disk joint 8
  • SAE5 disk joint 10
  • SAE5 disk joint 11.5
  • STD Lombardini
  • Gear box coupling flange

This product is not available for order, please contact us and we will provide you a quotation for similar product based on your needs.
