TRAILER MASTER13 TRA122
Total mass: 3500-3000-2500-2000 Kg
Tare Weight: 950 Kg
Useful Dimension: 6100 X 2300 X 400 mm
MAX Dimension: 7600 X 2160 mm
Type of Bodywork: BASS/FIXED
N° Axles/Wheels: II/195 R13 "C
Brakes: Yes
TRA122
Data sheet
- Length (mm)
- 6100
- Width (mm)
- 2300
- Product type
- Towing trolleys
- Trailer type
- Multifunction
- Struttura rimorchio
- BASS/FIXED
- Tare mass (Kg)
- 950
- Fiscal load (Kg)
- 3500-3000-2500-2000
- Brake
- Sì
- Wheels
- II/195 R13”C
- Dimensione utile (mm)
- 6100 X 2300 X 400
- Dimensione max (mm)
- 7600 X 2160
Specific References
TRAILER MASTER13 TRA122

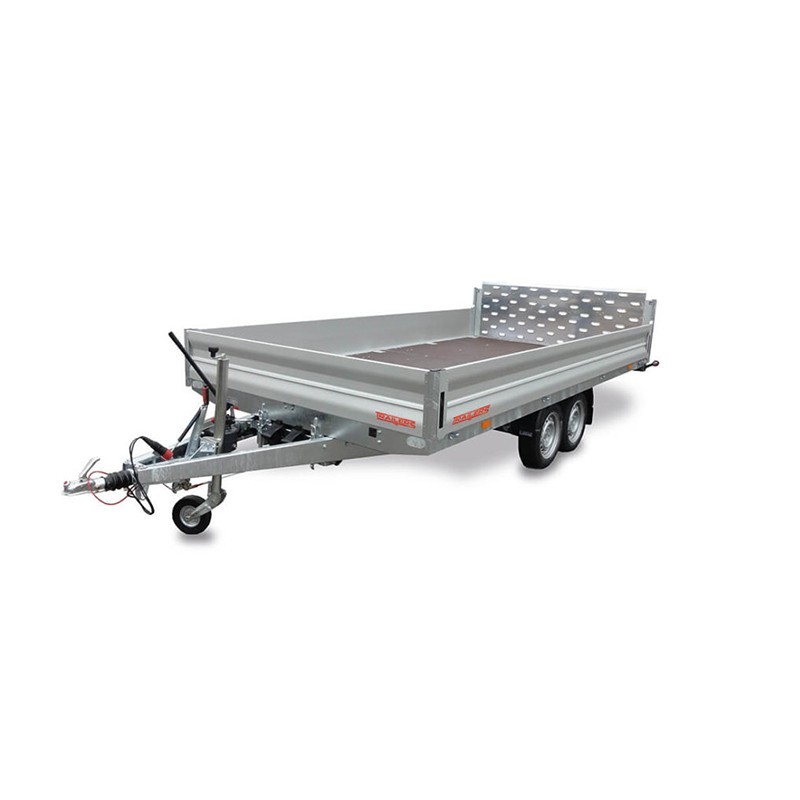

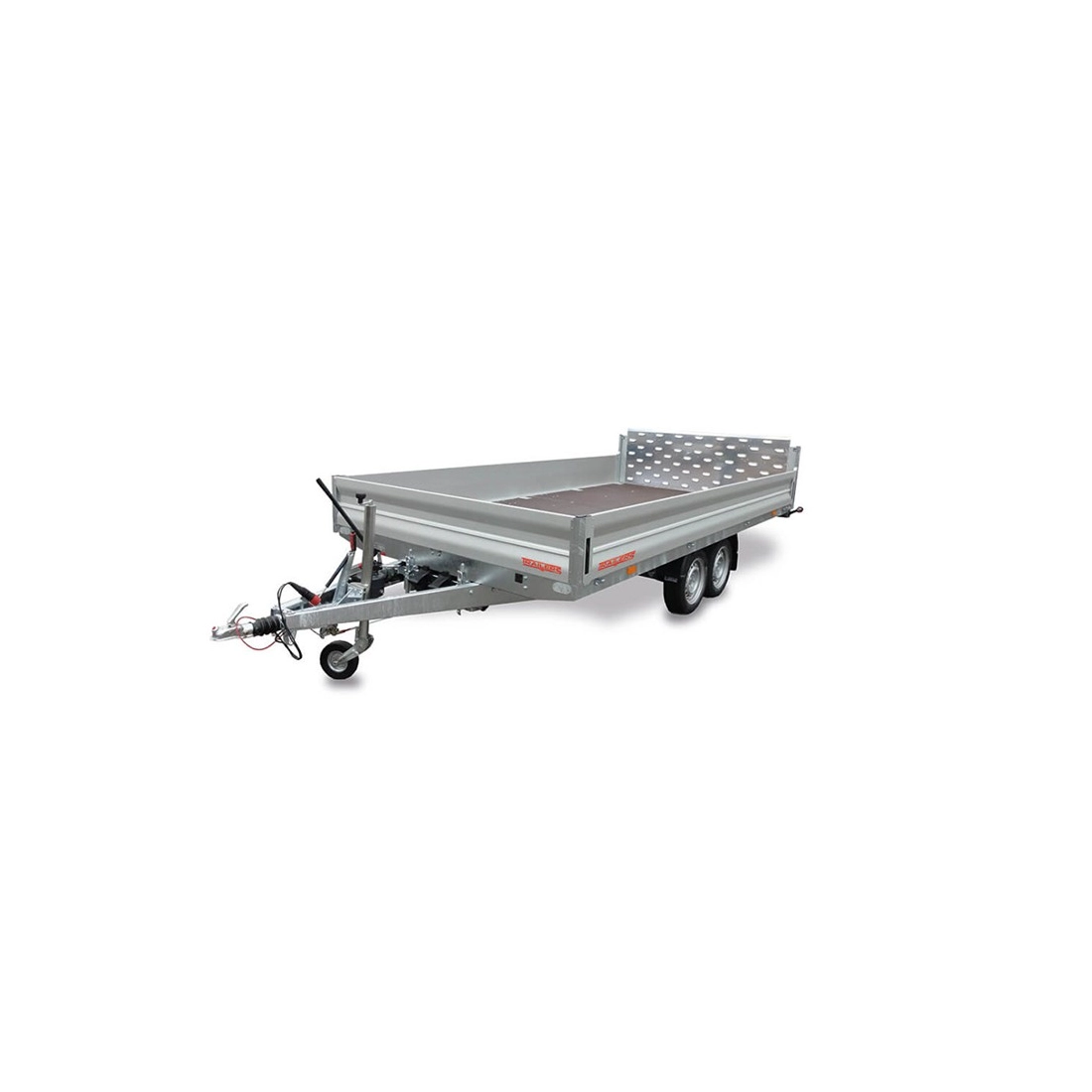

Trailer MASTER13 TRA122 is equipped with a capacity of 6100 X 2300 X 400 mm with galvanized frame allows the loading of goods and materials.
The trailer Master13 comes in the version with a containment edge on the sides and front, with rear loading ramp in steel.
The trailer Master13 is equipped with a telescopic wheel included in the supply, to allow the trailer to be loaded easily without the need to connect it to a means of locomotion to keep it level.
The Flatbed is lined with Phenolic Marine Plywood with non-slip to safely load your vehicles and equipment. The sturdy frame is hot-dip galvanized with a V-shaped drawbar. The Axle with torsion bar suspension, with independent wheels, with the very good 195/50R13'C. wheels outside the platform.
The trailer Master13 is complete with autonomous braking system, complete with rear lights with integrated reverse light and all the features for a proper urban and extra-urban transport.
TECHNICAL FEATURES TRAILER MASTER13
Total mass: 3500-3000-2500-2000 Kg
Tare: 950 Kg
Useful size: 6100 X 2300 X 400 mm
Maximum size: 7600 X 2160 mm
Body type: DOME/FIXED
N° Axles/Wheels: II/195 R13 "C
Brakes: Yes
Do you need a towing dolly with different characteristics? Here you can find our dedicated section with the full range of towing dollies, find the one that suits your needs.
Pictures and technical data of the master13 trailer are not binding and may be subject to revision by the supplier.
