TRAILER MASTER10 TRA119
PRODOTTO FUORI PRODUZIONE
Total mass: 3500 - 3000 - 2500 - 2000 - 1500 Kg
Tare Weight: 600 Kg
Useful dimension: 4500 X 2200 X 400 mm
MAX Dimension: 5800 X 2160 mm
Type of Bodywork: LADDER/BASCULATOR
N° Axles/Wheels: II/195 R13 "C
Brakes: Yes
TRA119
Data sheet
- Product type
- Towing trolleys
- Trailer type
- Multifunction
- Tare mass (Kg)
- 600
- Brake
- Sì
- Dimensione utile (mm)
- 4500 X 2200 X 400
Specific References
TRAILER MASTER10 TRA119

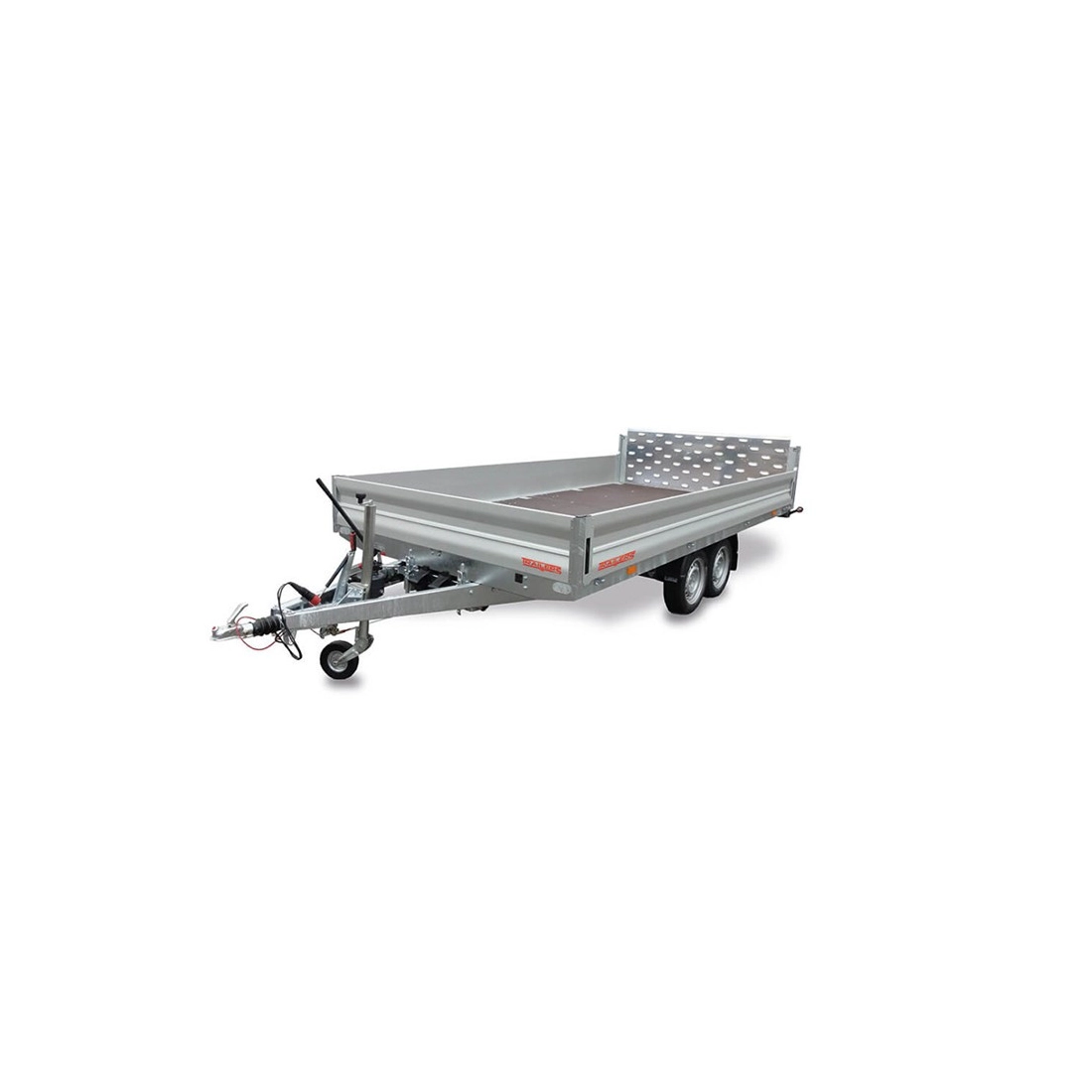

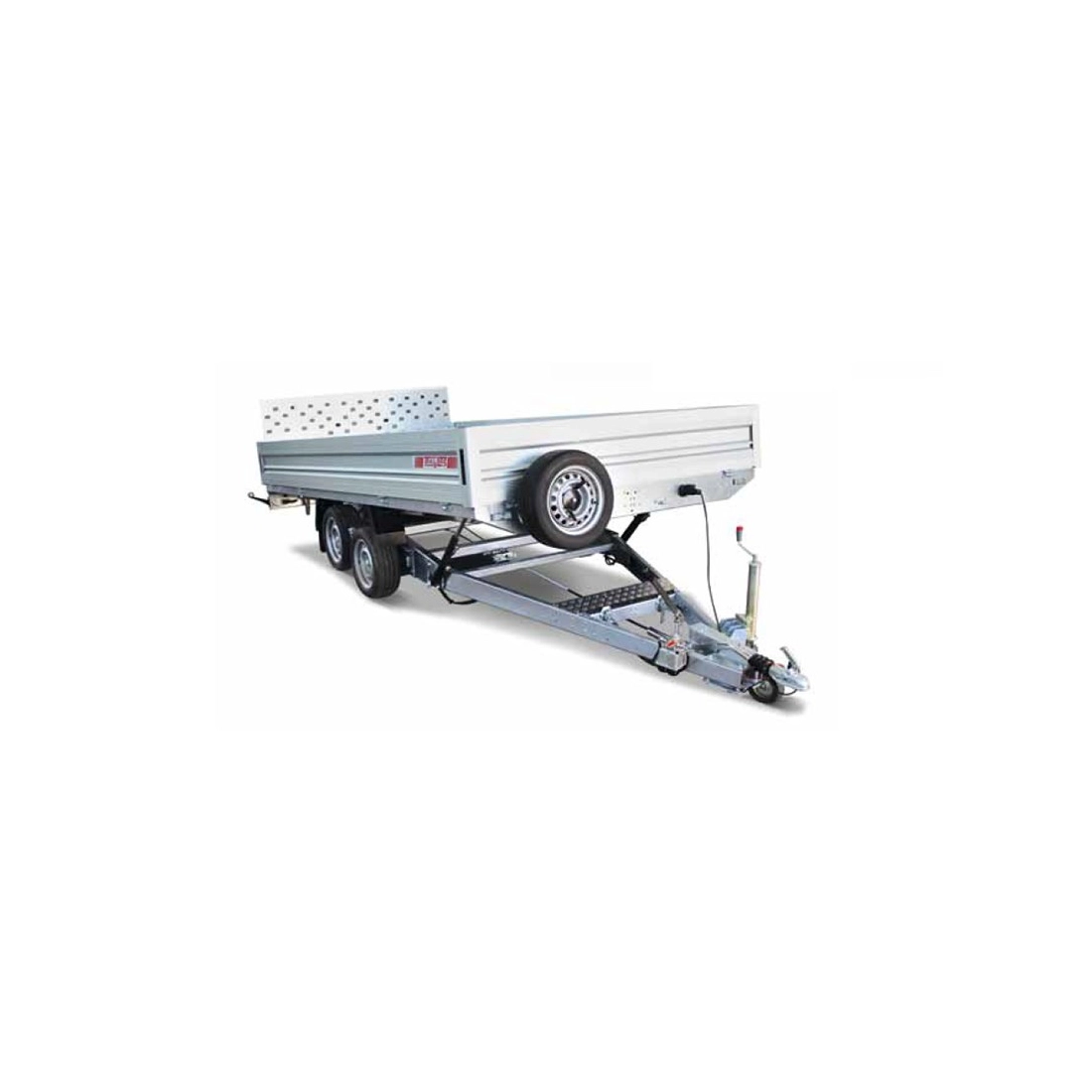

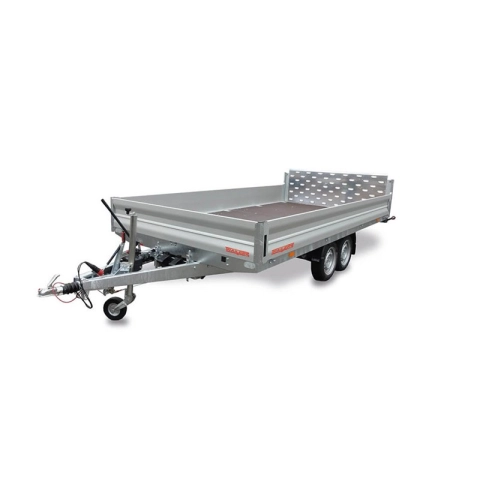

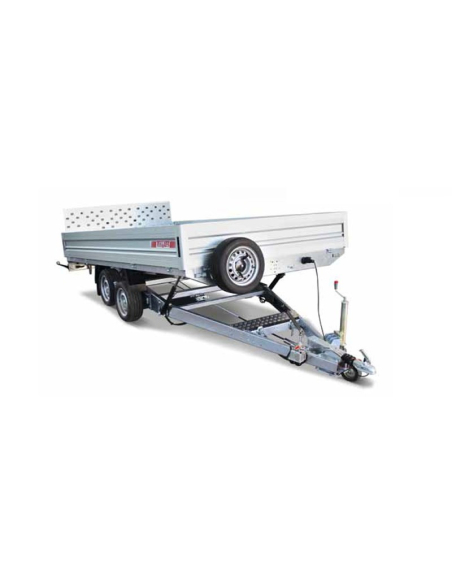

Trailer MASTER10 TRA119 has a capacity of 4500 X 2200 X 400 mm with galvanized frame allows the loading of goods and materials.
The trailer Master10 comes in the version with a containment edge on the sides and front, with rear loading ramp in steel.
The trailer Master10 is equipped with a telescopic wheel included in the supply, to allow the loading of the trailer in an easy way without the need to connect it to a means of locomotion to keep it level.
The Flatbed is lined with Phenolic Marine Plywood with non-slip to safely load your vehicles and equipment. The sturdy frame is hot-dip galvanized with a V-shaped drawbar. The Axle with torsion bar suspension, with independent wheels, with the very good 195/50R13'C. wheels outside the platform.
The trailer Master10 is complete with autonomous braking system, complete with rear lights with integrated reverse light and all the features for a proper urban and extra-urban transport.
TECHNICAL FEATURES TRAILER MASTER10
Total mass: 3500 - 3000 - 2500 - 2000 - 1500 Kg
Tare: 600 Kg
Useful size: 4500 X 2200 X 400 mm
Maximum size: 5800 X 2160 mm
Body type: LANDSCAPE/BASCULATOR
N° Axles/Wheels: II/195 R13 "C
Brakes: Yes
Do you need a trailer with different characteristics? Here you can find our dedicated section with the full range of towing dollies, find the one that suits your needs.
Pictures and technical data of the master10 trailer are not binding and may be subject to revision by the supplier.
