TOWING TROLLEY GRILLO4
PRODUCT DISCONTINUED
Total mass: 750 Kg
Tare Weight: 290 Kg
Useful dimension: 3320 X 1850 X 100 mm
MAX Dimension: 4850 X 2440 mm
Type of Bodywork: DASSONE h 100 mm
N° Axles/Wheels: I / 13" C
Brakes: No
TRA093
Data sheet
- Length (mm)
- 3320
- Product type
- Towing trolleys
- Trailer type
- CASSONE h 100 mm
- Tare mass (Kg)
- 290
- Brake
- No
- Dimensione utile (mm)
- 3320 X 1850 X 100
- Dimensione max (mm)
- 4850 X 2440
Specific References

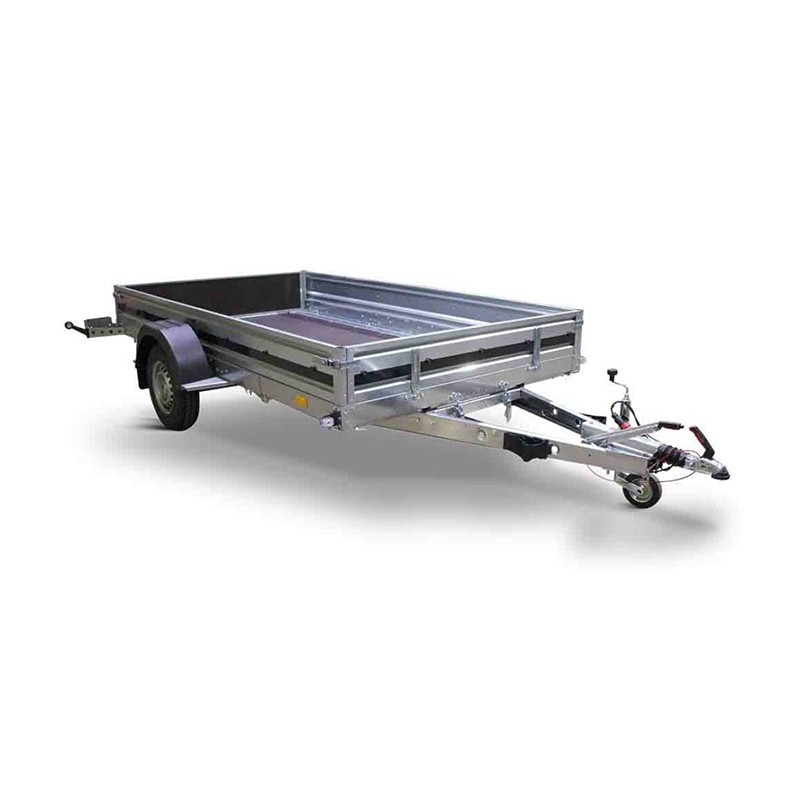

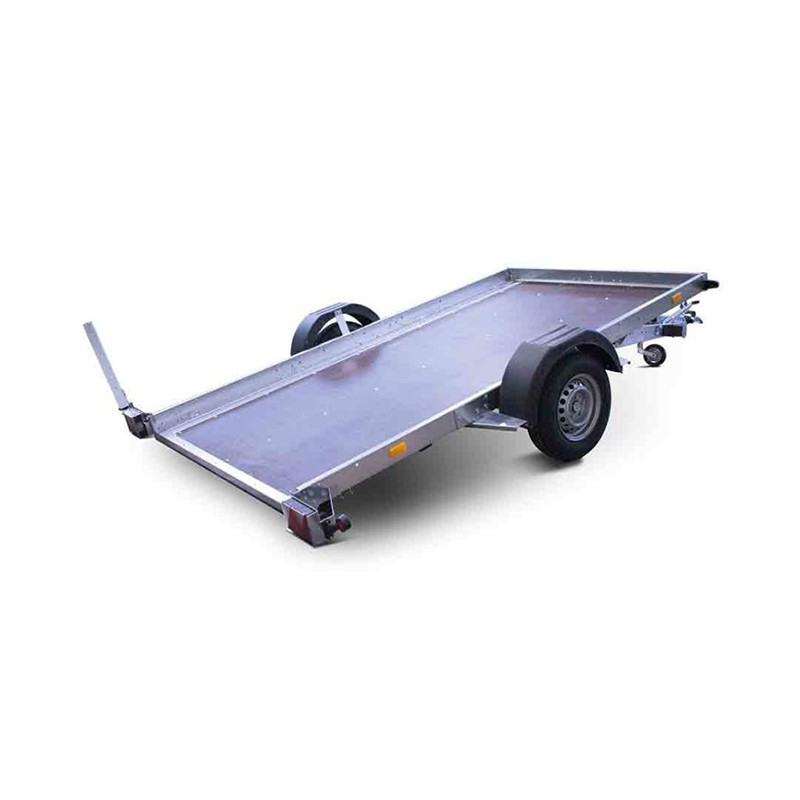

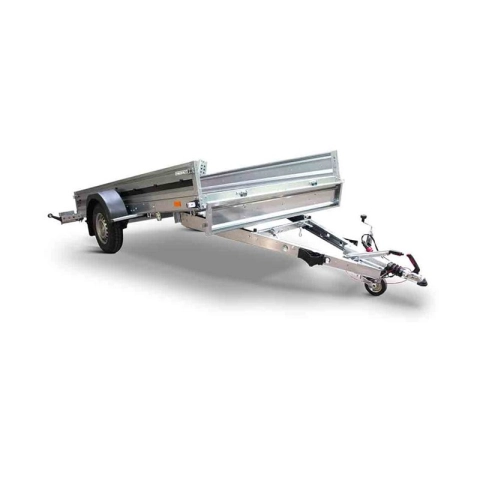

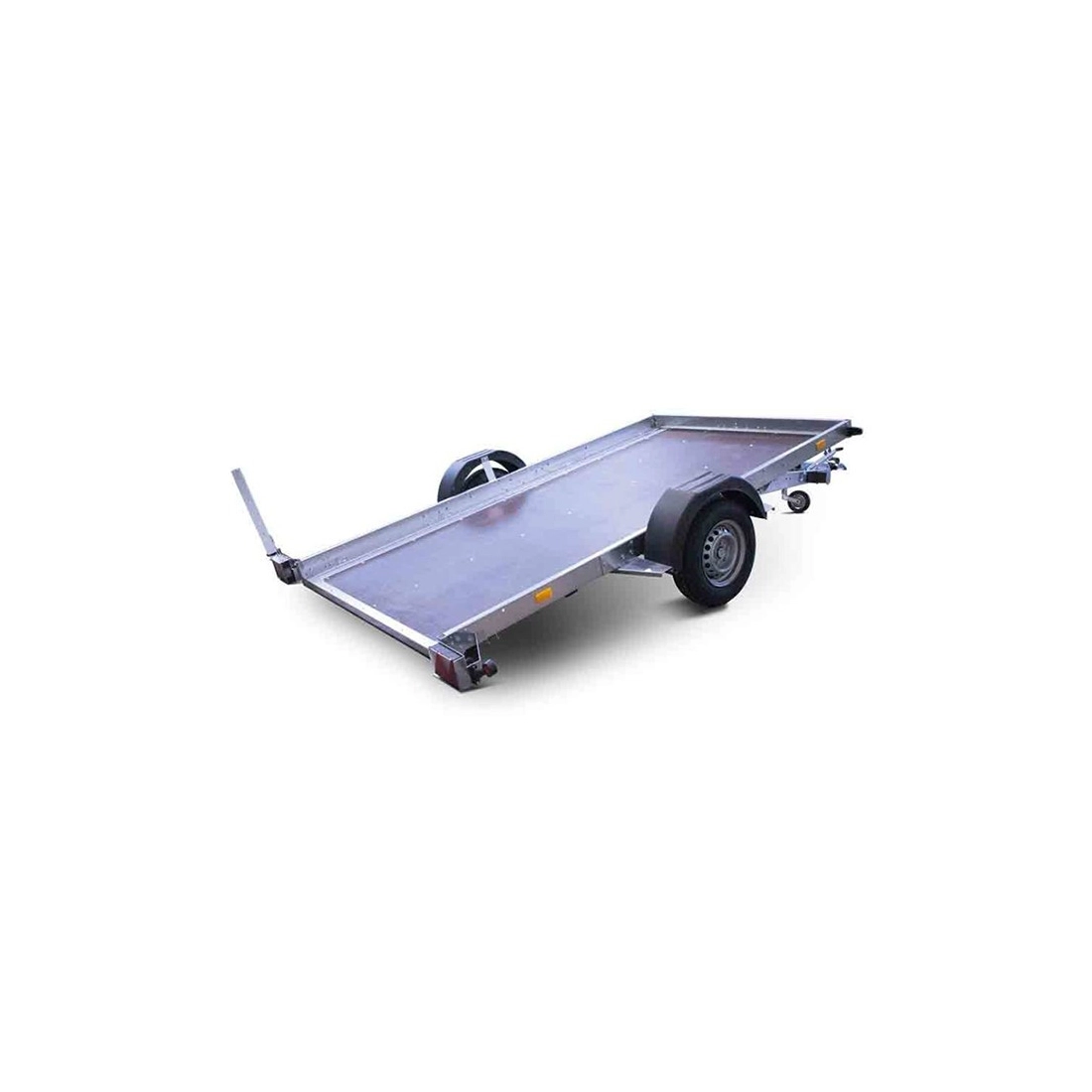

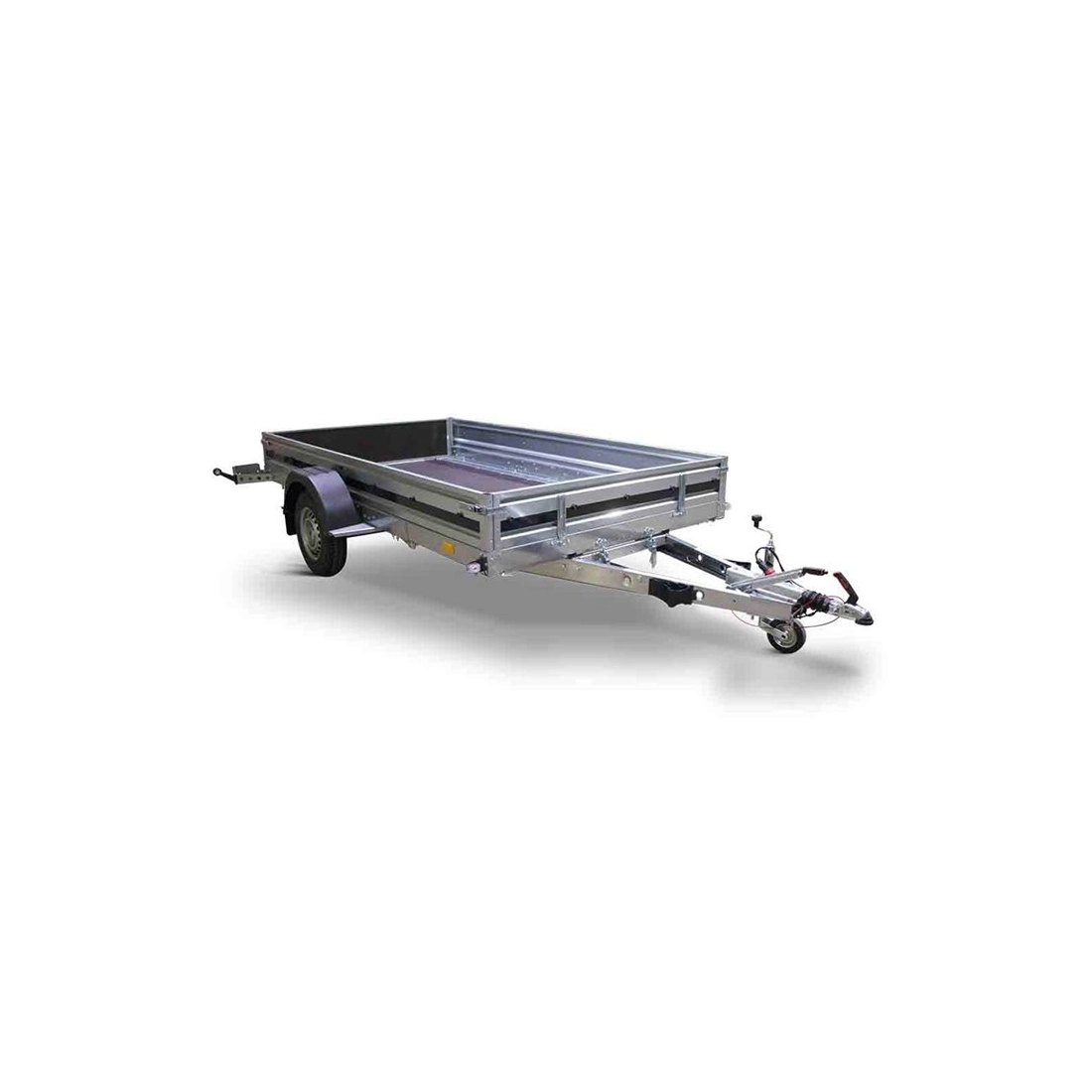

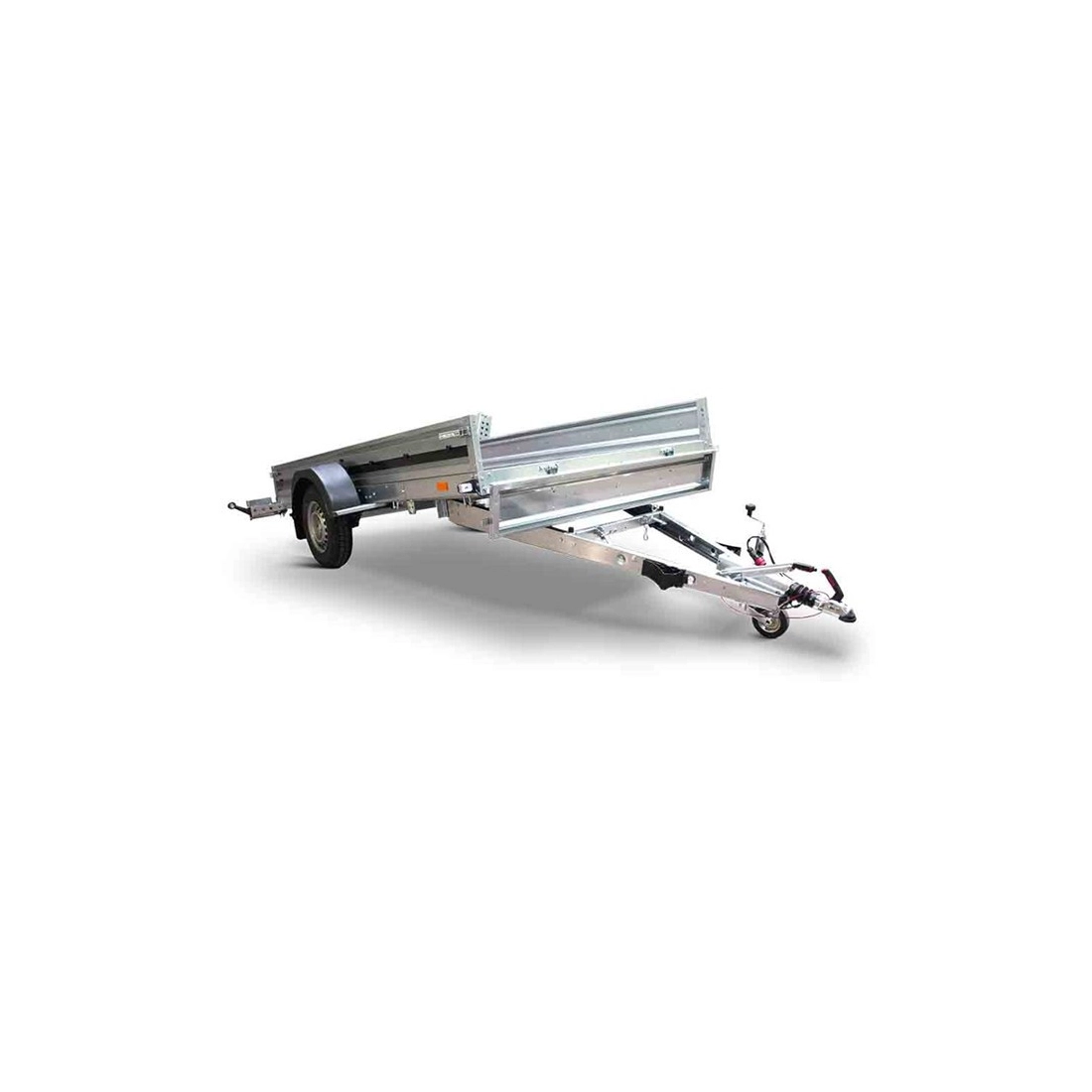

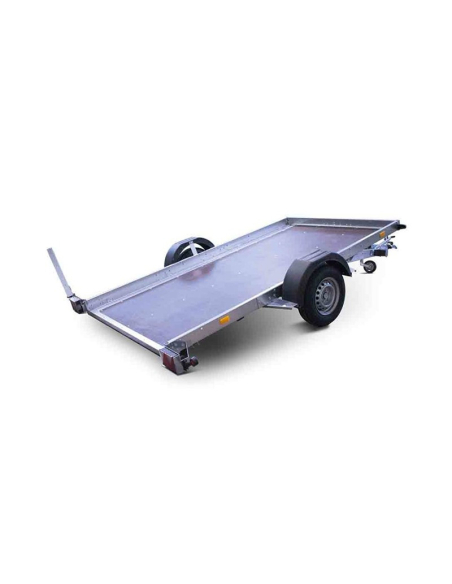

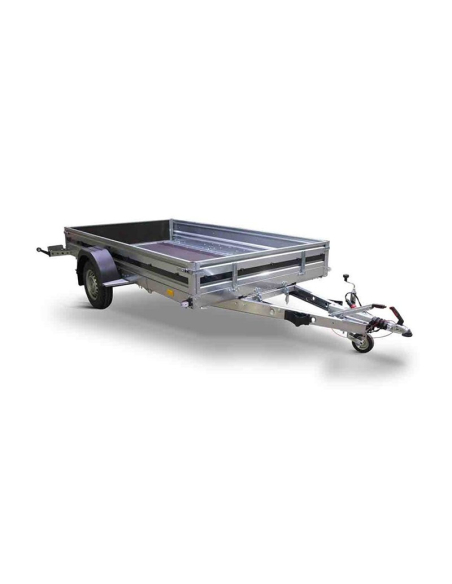

TROLLEY GRILLO4 TOWING TROLLEY V GALVANIZED FRAME
Trolley towing Grillo4 has a capacity of 3320 X 1850 X 100 mm with galvanized frame allows the loading of goods and materials.
The towing trolley comes in the FLAT version with a containment edge on the sides and front, 10 cm high. In order to further increase the load capacity, it is possible to supply optional side rails which are easy to apply and use, in order to allow the maximum safety.
The Grillo4 towing trolley does not require a loading ramp as it has a low edge that allows easy loading of small vehicles. If the vehicle to be loaded is very low, such as a lawn mower, in this case to facilitate the loading is possible the optional provision of the Ramp / Rear Rail easy to use and operate.
The Grillo4 Towing Trolley does not require ramp. The platform is covered with phenolic marine plywood with non-slip for safe loading of your vehicles and equipment. The sturdy frame is hot-dip galvanized with a V-shaped drawbar. The Axle with torsion bar suspension, with independent wheels, with the very good 13" wheels outside the platform.
The towing trolley GRILLO4 is complete with autonomous braking system, complete with rear lights with integrated reverse light and all the features for a proper urban and extra-urban transport.
TECHNICAL FEATURES TROLLEY GRILLO4
Total mass: 750 Kg
Tare: 290 Kg
Useful size: 3320 X 1850 X 100 mm
Maximum size: 4850 X 2440 mm
Body type: DOME h 100 mm
N° Axles/Wheels: I / 13" C
Brakes: No
Do you need a trailer with different characteristics? Here you can find our dedicated section with the full range of tow dollies, find the one that suits your needs.
Images and technical data are not binding and may be subject to revision by the supplier.
