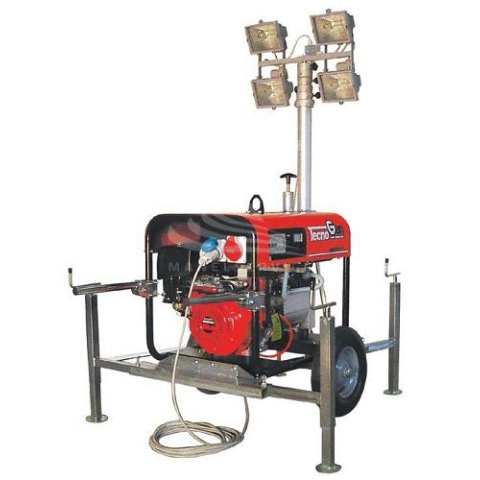

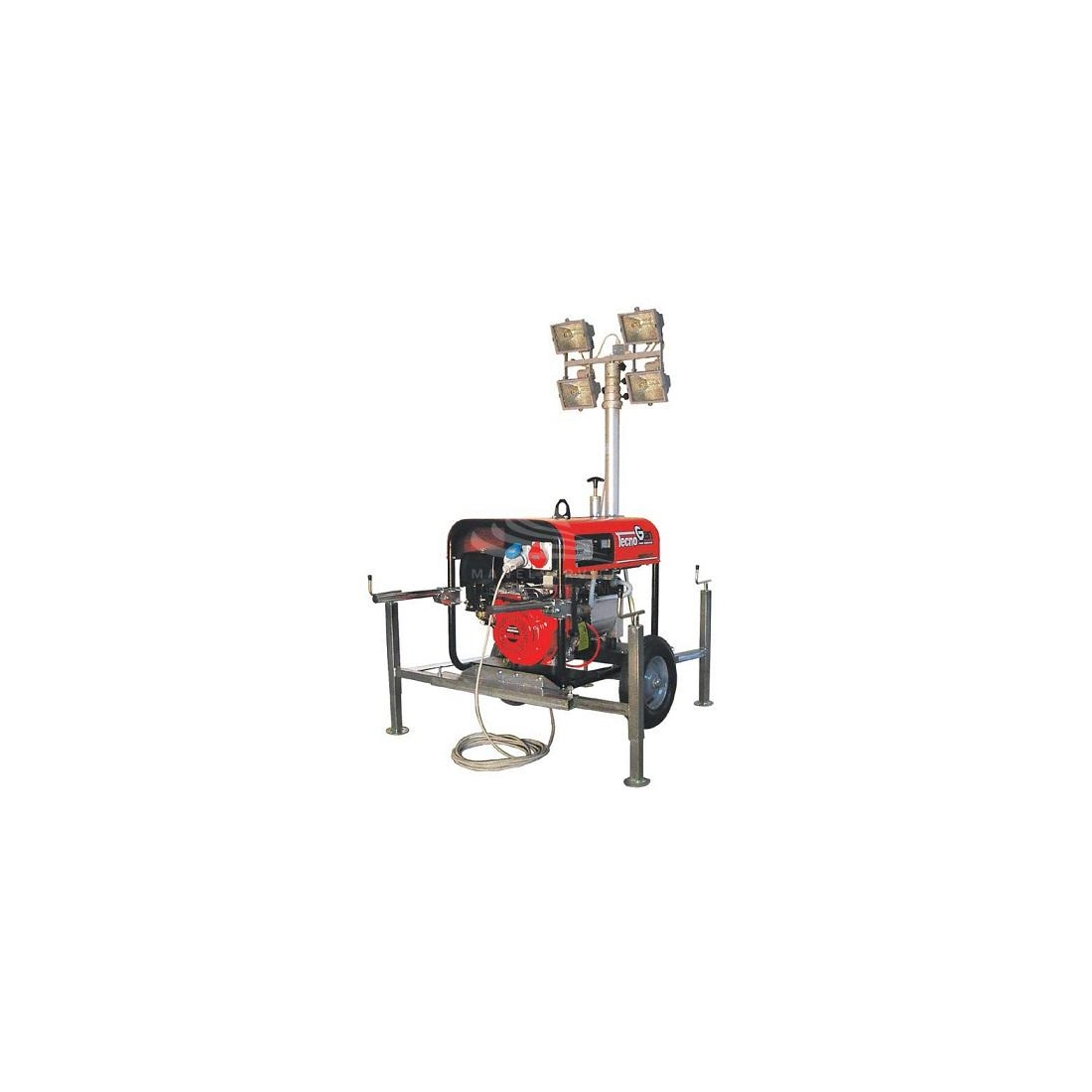

TECNOGEN H5000LX-TF Lighting Tower with 4.5 kVA Genset
      TECNOGEN H5000LX-TF Lighting Tower with 4.5 kVA Genset

      TECNOGEN H5000LX-TF Lighting Tower with 4.5 kVA Genset

      Maximum Height (mt.): 5.5
      Lifting System: Manual
      Illuminated Area: -----
      Floodlihts: Halogen
      Projectors: 4 x 500 W
      Transportability: Handles and wheels
      Wind Stability (Km/h): -----
      Mast rotation: -----
      Stabilizers: 4 adjustable
      Single Phase Max. Output (kVA): 4.5
      Engine: HONDA GX270
      Voltage: 230 V
      Fuel: Petrol
      Tank Capacity (l): 20
      Consumption (l/h): 1.5
      Operating Time (h): 13.3
      Min. Dimensions (mm): 1040 x 820 x 1800
      Dry Weight (Kg): 128
      Lumen (Lm): 35000

      Custom Quote
      Product: TECNOGEN H5000LX-TF Lighting Tower with 4.5 kVA Genset

      PERSONAL DATA


      Ask a question
      Product: TECNOGEN H5000LX-TF Lighting Tower with 4.5 kVA Genset
      Offer on letterhead
      Product: TECNOGEN H5000LX-TF Lighting Tower with 4.5 kVA Genset
      TECNOGEN
      H5000LX-TF

      Data sheet

      Phase
      Single phase
      Maximum power single phase (KW)
      3.6
      Maximum power single phase (KVA)
      4.5
      Fuel
      Gasoline
      Frequency (Hz)
      50
      Voltage (V)
      230
      Engine
      HONDA GC160
      Engine rpm (rpm)
      3000
      Starting system
      Manual
      Engine capacity (cm³)
      270
      Number cylinders
      1
      Cooling
      Air
      Type of lamps
      Halogen
      Lamps
      4 x 500 W
      Total lumens (Lm)
      35000
      Lifting System
      Manual lifting system
      Maximum height (m)
      5.5
      Lenght closed (mm)
      1040
      Width closed (mm)
      820
      Height closed (mm)
      1800
      Transportability
      Wheels and handles
      Fuel tank capacity (L)
      20
      Consumption (L/h)
      0,8 al 75% del carico
      Running time (h)
      2,5
      Acoustic power
      95 dB(A)
      Dry weight (Kg)
      128
      Inverter
      No
      AVR
      No
      Compound
      No
      Silenced
      No
      Super silenced
      No
      Engine manufacturer
      Honda

      Specific References

      New

      The Tecnogen MT Series light towers, extremely versatile in terms of size and fittings, can be managed by a single operator, also thanks to special locks that drastically reduce the minimum height encumbrance of the telescopic pole, making it easy to move the units themselves without complicated repositioning operations.
      The equipment includes a 4- or 5-outlet headlight column made of anodised aluminium alloy or steel galvanised, depending on the model, with a height of 5/7/9 metres, complete with support with 4 adjustable halogen spotlights 500 or 1000 watts each.

      Available configurations include series generating sets "LX" from 4.5 to 7.5 kVA max (petrol or diesel), "SX" series (silenced), 4.6 to 6.4 kVA max and Enermax series 14.5 to 44 kVA max. The series LX and SX are equipped with a trolley for manual movements, also on rugged terrain, with lockable handles and pneumatic wheels mounted on bearings; the Enermax series is equipped with a slow towing trolley With adjustable drawbar and shock-absorbing axle (an option is available approved for use in road traffic).

      The standard equipment also includes 4 removable outrigger feet and Individually adjustable to ensure the flat stability of the unit lighting, thus making it possible to operate safely with the column of headlamps in extension.
      The Tecnogen MT series light towers are ideal for operators who  need a source of energy and lighting.

      Non-binding images and technical data.
