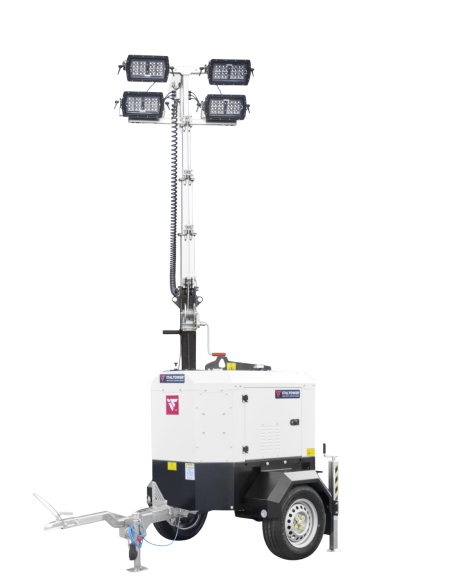

ITALTOWER MANTISM PRO02 LIGHT TOWER 4x320 MultiLED Road trolley approved max 750kg STAGEV

Reference MANTISM_PRO02

Frequenza 50 Hz
Voltaggio 230 V
Temperatura di funzionamento -30/+50
Emissioni acustiche 65 dB @7m
Centralina ComAp AMF5
Modello Yanmar L70V
Regime 3000 giri
Aria refrigerante
Cilindri 1
Emissioni Stage V
Modello Linz Alumen
Potenza d'uscita 4,2 kVA
Consumo di carburante 0,55 l/h
Serbatoio 40 lt
Carburante Diesel
Autonomia 72 ore
Altezza 7 mt
Sistema di elevazione Manuale
Rotazione 350°
Resistenza aerodinamica 110 km/h
Carrello Carrello stradale omologato <750 kg
Misura gomme 185/70R13
Base Vasca di raccolta 110%
Stabilizzatori 2+1
Verniciatura Verniciatura a polvere

Product Details
Description

Phase: Single phase
Modello: Yanmar L70V
Emissions Regulations: Stage 5
Number cylinders: 1
Alternator: Linz Alumen
Tank capacity (L): 40
Lamps: 4 x 320 W
Illuminated area (m²): 5000
Total lumens (Lm): 180.000
Lifting System: Manual lifting system
Maximum height (m): 7
Mast rotation: 350°
With generator / Without generator: With generator
Stability to wind (Km/h): 110
Consumption (L/h): 0.55
Running time (h): 72
Acoustic pressure: 65 dB (A)
Dry weight (Kg): 605
Engine manufacturer: Yanmar
Power output: 4.2 kVA
Dimension (cm): 200x150x250

Brand

ITALTOWER MANTISM PRO02 LIGHT TOWER 4x320 LED Approved Road Cart Max 750kg STAGEV

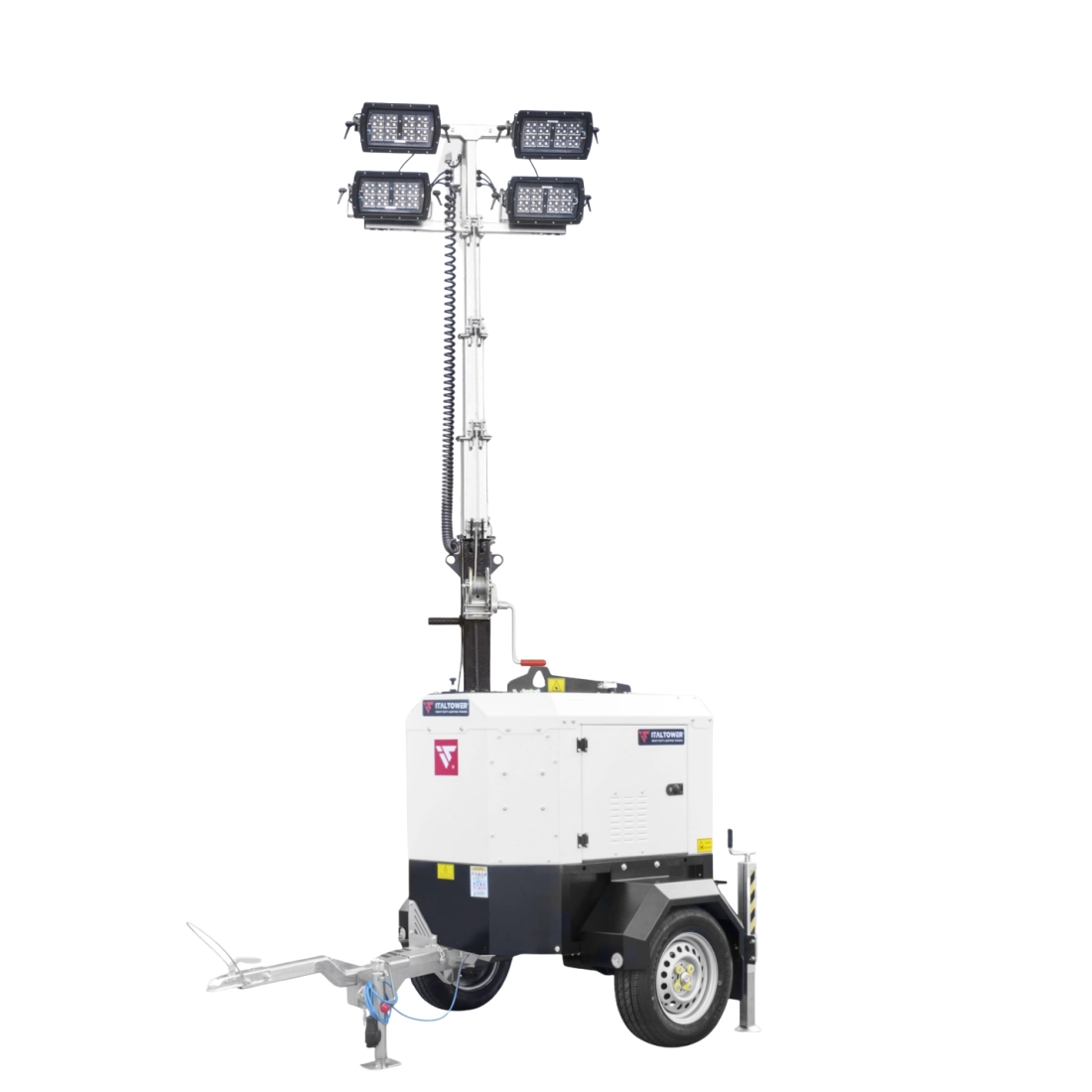

ITALTOWER MANTIS PRO02 LIGHT TOWER 4x320 LED Approved Road Cart Max 750kg STAGEV is a compact and versatile diesel-powered light tower,
designed to guarantee high performance and maximum reliability on construction sites and in professional environments. Equipped with a 3000 rpm Yanmar L70V engine,
Linz Alumen alternator and ComAp AMF5 control unit, it ensures a power output of 4.2 kVA with low consumption of 0.55 l/h and a range of up to 72 hours thanks to the 40-liter tank.

The structure is designed for practicality and durability: maximum height of 7 meters, manual lifting system, 350° rotation, road trailer approved for up to 750 kg,
185/70R13 tires, 110% collection tank, 2+1 stabilizers and powder coating. The air-cooled engine, compliant with Stage V standards,
guarantees reliable operation even in extreme environmental conditions, from -30 °C to +50 °C, with noise emissions limited to 65 dB at 7 meters.

TECHNICAL CHARACTERISTICS ITALTOWER MANTIS PRO01

Frequency 50 Hz
Voltage 230 V
Operating temperature -30/+50
Noise emissions 65 dB @7m
Control unit ComAp AMF5
Model Yanmar L70V
Speed 3000 rpm
Coolant Air
Cylinders 1
Emissions Stage V
Model Linz Alumen
Output power 4.2 kVA
Power consumption Fuel: 0.55 l/h
Tank: 40 l
Diesel Fuel: Diesel
Autonomy: 72 h
Height: 7 m
Elevation System: Manual
Rotation: 350°
Aerodynamic Resistance: 110 km/h
Trolley: Approved road trolley <750 kg
Tyre Size: 185/70R13
Base: 110% collection tank
Stabilizers: 2+1
Painting: Powder coating

Looking for a light tower with different features? HERE you can find the entire range of ITALTOWER towers and other specialized brands.

^* Images and technical data are not binding. Please always consult the technical data sheet released by the manufacturer. Manel Service does not assume responsibility for any changes made by the manufacturer.
