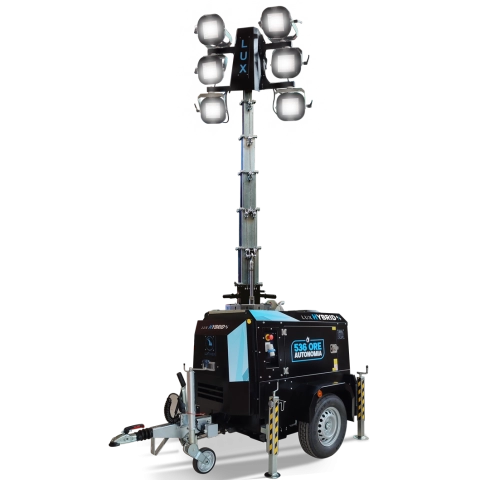

    LUXTOWER LUX Hybrid Lithium - Light Tower Fast Towing LED 3.5kVA
    LUXTOWER LUX Hybrid Lithium - Light Tower Fast Towing LED 3.5kVA
    LUXTOWER LUX Hybrid Lithium - Light Tower Fast Towing LED 3.5kVA
    LUXTOWER LUX Hybrid Lithium - Light Tower Fast Towing LED 3.5kVA
    LUXTOWER LUX Hybrid Lithium - Light Tower Fast Towing LED 3.5kVA
    LUXTOWER LUX Hybrid Lithium - Light Tower Fast Towing LED 3.5kVA

    LUXTOWER LUX Hybrid Lithium - Light Tower Fast Towing LED 3.5kVA

    Phase type: Single-phase

    Lamp type: LED

    Telescopic pole: Vertical

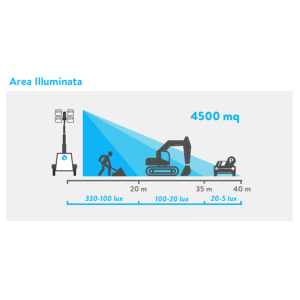

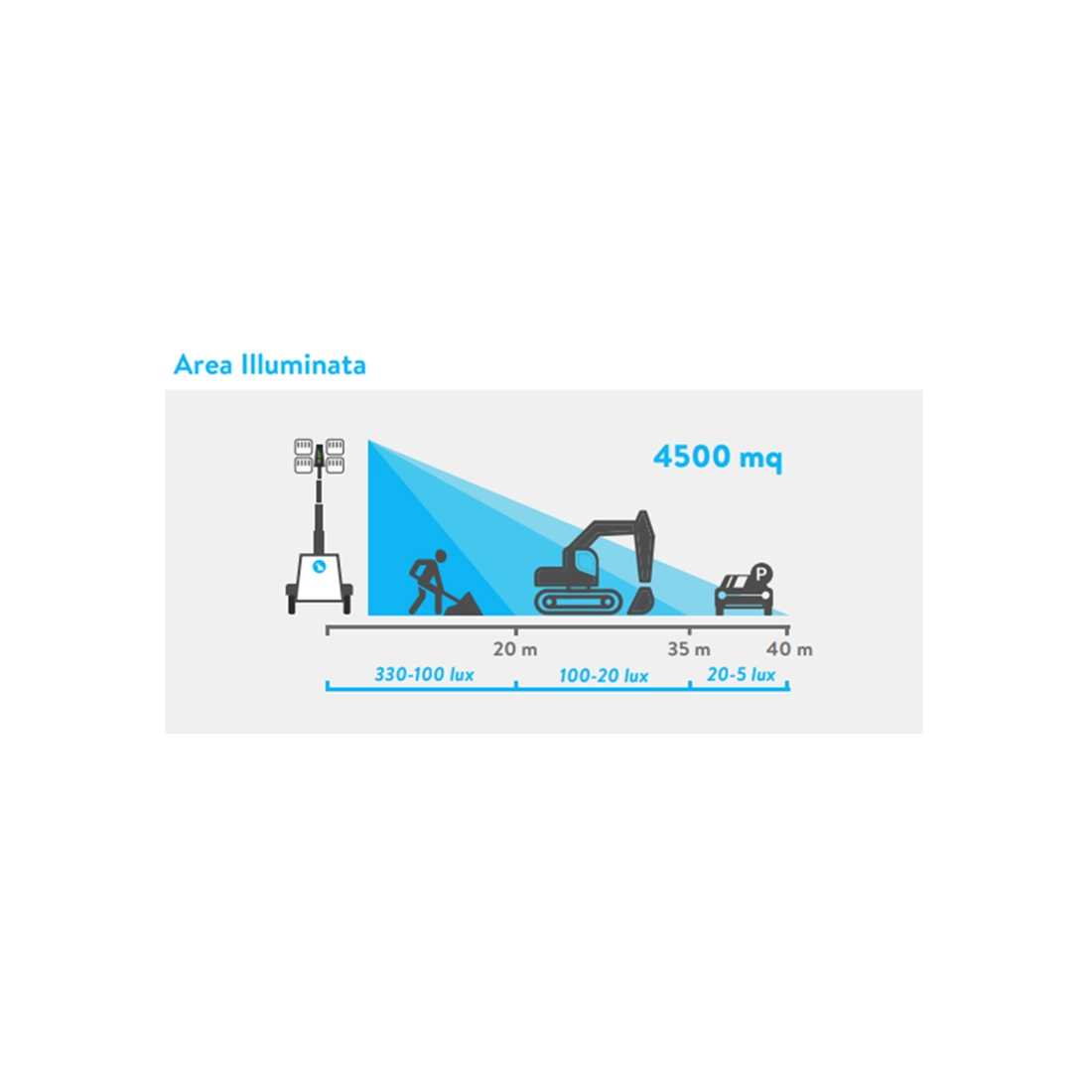

    Illuminated area: 4500 m²

    Lifting system: Hydraulic lifting system

    Maximum height: 8.5 m

    Wind stability: 110 Km/h

    Weight: 1065 Kg

    Lights: 6 x 100 W

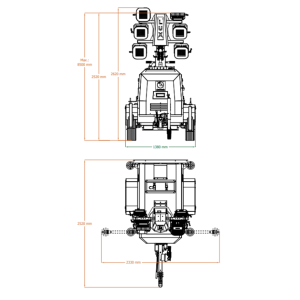

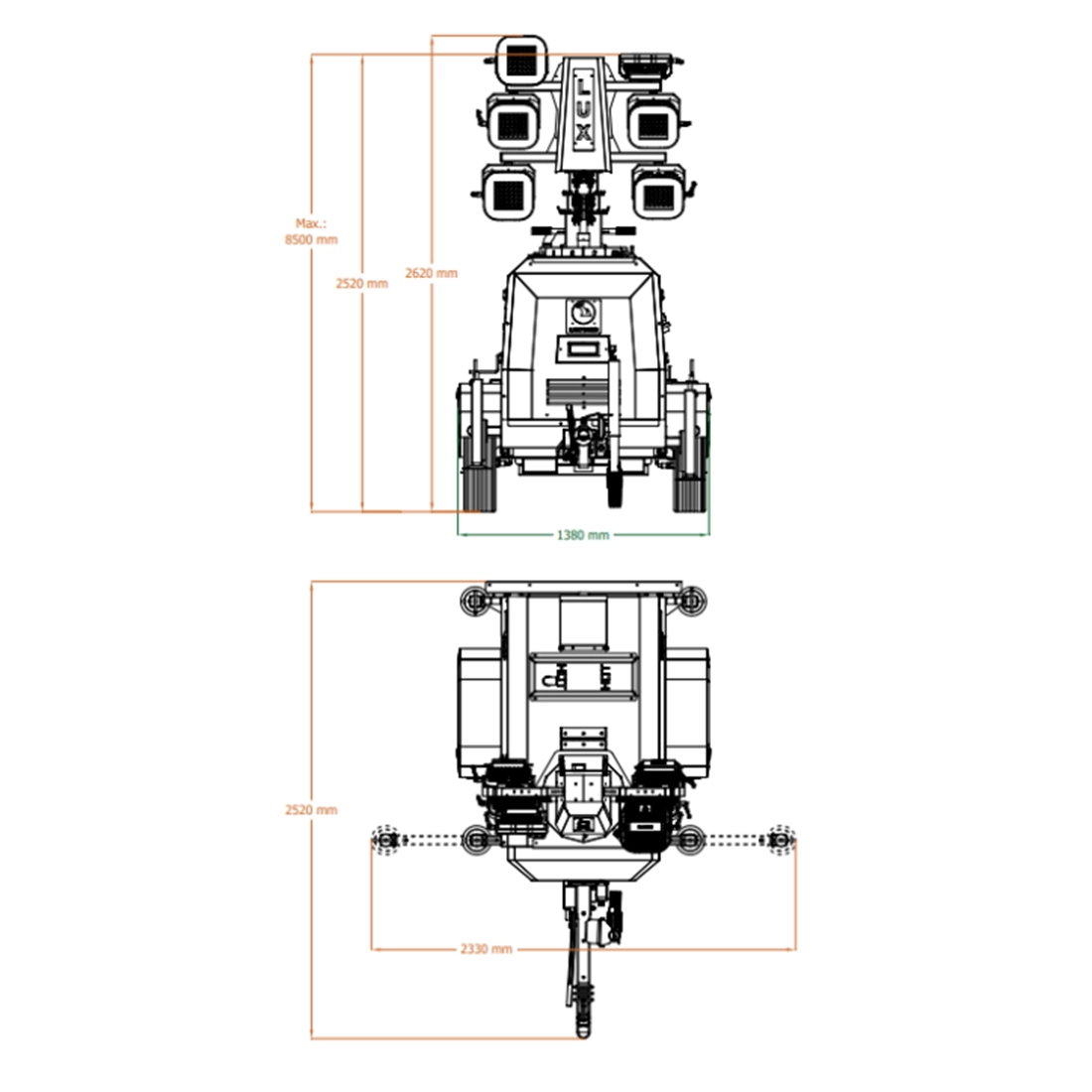

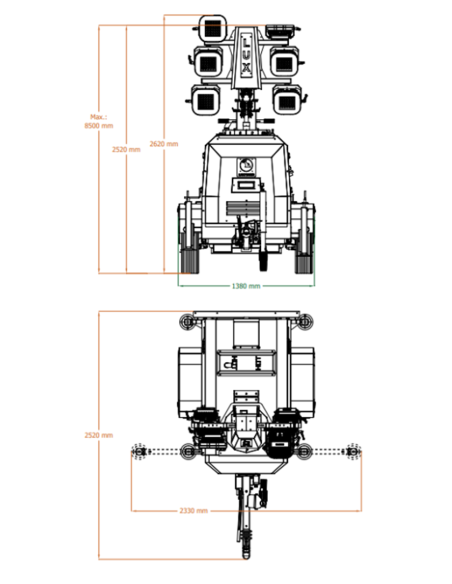

    Min dimensions: 2520 X 1380 X 2500 mm

    Max dimensions: 2520 X 2330 X 8500 mm

    Alternator: Linz Synchronous or equivalent

    Frequency: 50 Hz

    Generator power: 3.5 kVA - 230 V

    Engine: Yanmar 2TNV70

    Number of cylinders: 2

    Cooling: Liquid

    Fuel: Diesel

    Engine speed: 1500 rpm

    Sound pressure: 60 dB(A) at 7 m

    Tank capacity: 50 L

    Autonomy: 536 h

    Consumption: 0.55 L/h

    Battery type: Lithium

    Battery features: 25.9V V/Ah

    Estimated charge cycles: 5000

    Autonomy: 11.5h at 100% load

    Charging time: 3 h

    List price
    24,919.72 € tax incl.
    20,426.00 € tax excl.
    Discounted Price
    24,919.72 € tax incl.
    20,426.00 € tax excl.
    Shipping from 320.00 € to Italy buy it today.
    Calculate Shipping Cost
    Custom Quote
    Product: LUXTOWER LUX Hybrid Lithium - Light Tower Fast Towing LED 3.5kVA

    PERSONAL DATA


    Ask a question
    Product: LUXTOWER LUX Hybrid Lithium - Light Tower Fast Towing LED 3.5kVA
    Offer on letterhead
    Product: LUXTOWER LUX Hybrid Lithium - Light Tower Fast Towing LED 3.5kVA
    LUXTOWER
    LUX HL

    Data sheet

    Phase
    Single phase
    Fuel
    Diesel
    Frequency (Hz)
    50
    Engine
    Yanmar 2TNV70
    Engine rpm (rpm)
    1500
    Number cylinders
    2
    Cooling
    Liquid
    Alternator
    Linz Synchronous or equivalent
    Maximum height (m)
    8.5
    Tank capacity (L)
    50
    Type of lamps
    LED
    Lamps
    6 x 100 W
    Telescopic pole
    Vertical
    Illuminated area (m²)
    4500
    Lifting System
    Hydraulic lifting system
    Stability to wind (Km/h)
    110
    Consumption (L/h)
    0.55
    Running time (h)
    536
    Acoustic pressure
    60 dB(A) at 7 m
    Product type
    Light tower
    Weight (Kg)
    1065
    Charging time [h]
    3
    Battery type
    Lithium
    Dimensioni min. (mm)
    2520 X 1380 X 2500
    Dimensioni max. (mm)
    2520 X 2330 X 8500
    Generator power (kVA - V)
    3.5 - 230
    Battery characteristics (V/Ah)
    25.9V
    Estimated charge cycles (n)
    5000

    Specific References

    LUXTOWER LUX HYBRID LITHIUM - FAST TOWING LED LIGHT TOWER 3.5kVA

    The LUXTOWER LUX Hybrid Lithium - Fast Towing LED Light Tower 3.5kVA represents the cutting edge in mobile lighting, combining power, efficiency, and sustainability. Thanks to its hybrid technology, it delivers high performance with reduced consumption, making it ideal for construction sites, events, emergencies, and industrial applications.


    Main Features of LUXTOWER LUX Hybrid Lithium:


    High-Efficiency Lighting

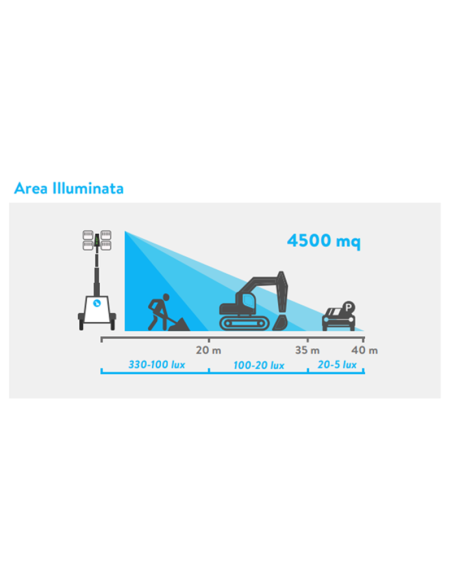

    Equipped with 6 x 100W LED floodlights, the LUXTOWER LUX Hybrid Lithium - Fast Towing LED Light Tower 3.5kVA illuminates an area of up to 4,500 m², ensuring optimal visibility even in the most challenging conditions.


    Hydraulic Telescopic Mast
    The mast reaches a maximum height of 8.5 meters, with a 340° rotation, offering maximum flexibility in light direction.


    Long-Lasting Lithium Batteries
    The 25.9V Lithium technology allows up to 11.5 hours of autonomy at full charge, with a recharge time of just 3 hours, ensuring continuous operation and reduced consumption.


    Yanmar 2TNV70 Diesel Engine
    Reliability and performance with a 2-cylinder, liquid-cooled engine, compliant with Stage 5 standards, running at 1500 RPM to maximize efficiency and reduce emissions.


    3.5 kVA - 230V Generator
    A powerful and efficient power supply system, perfect for ensuring a constant energy supply even in the most demanding conditions.


    Maximum Safety and Ease of Use
    Equipped with a dusk sensor, timer, and automatic mast lowering system (AMOS KIT), the LUXTOWER LUX Hybrid Lithium Fast Towing is designed for smart and fully automated management.


    Robust and Certified Design
    Built with a galvanized and powder-coated 80 µm machine body, it is designed to withstand the harshest conditions, with wind stability up to 110 km/h.


    Easy Transport and Towing
    Thanks to its homologated towable trailer, transporting the LUXTOWER LUX Hybrid Lithium - Light Tower is simple and safe, allowing quick installation wherever professional lighting is needed.


    Advantages of the LUXTOWER LUX Hybrid Lithium - Fast Towing LED Light Tower 3.5kVA

    Low consumption and long autonomy

    Powerful and adjustable lighting

    Robust and durable design

    Smart automated management

    Easy transport and immediate installation


    Trust the LUXTOWER LUX Hybrid Lithium - Light Tower Fast Towing 3.5kVA for efficient, eco-friendly, and high-performance lighting.




    Looking for more light towers like the LUXTOWER LUX Hybrid Lithium? CLICK HERE to browse our catalog of LUXTOWER and other brand light towers.


    Images and technical data are not binding. Please always refer to the technical data sheet provided by the manufacturer. Manel Service is not responsible for any modifications made by the manufacturer.
