MOSA TF II9 Y L-4x350 LED LIGHT TOWER WITH GENERATOR 9KW SINGLE-PHASE STAGE V

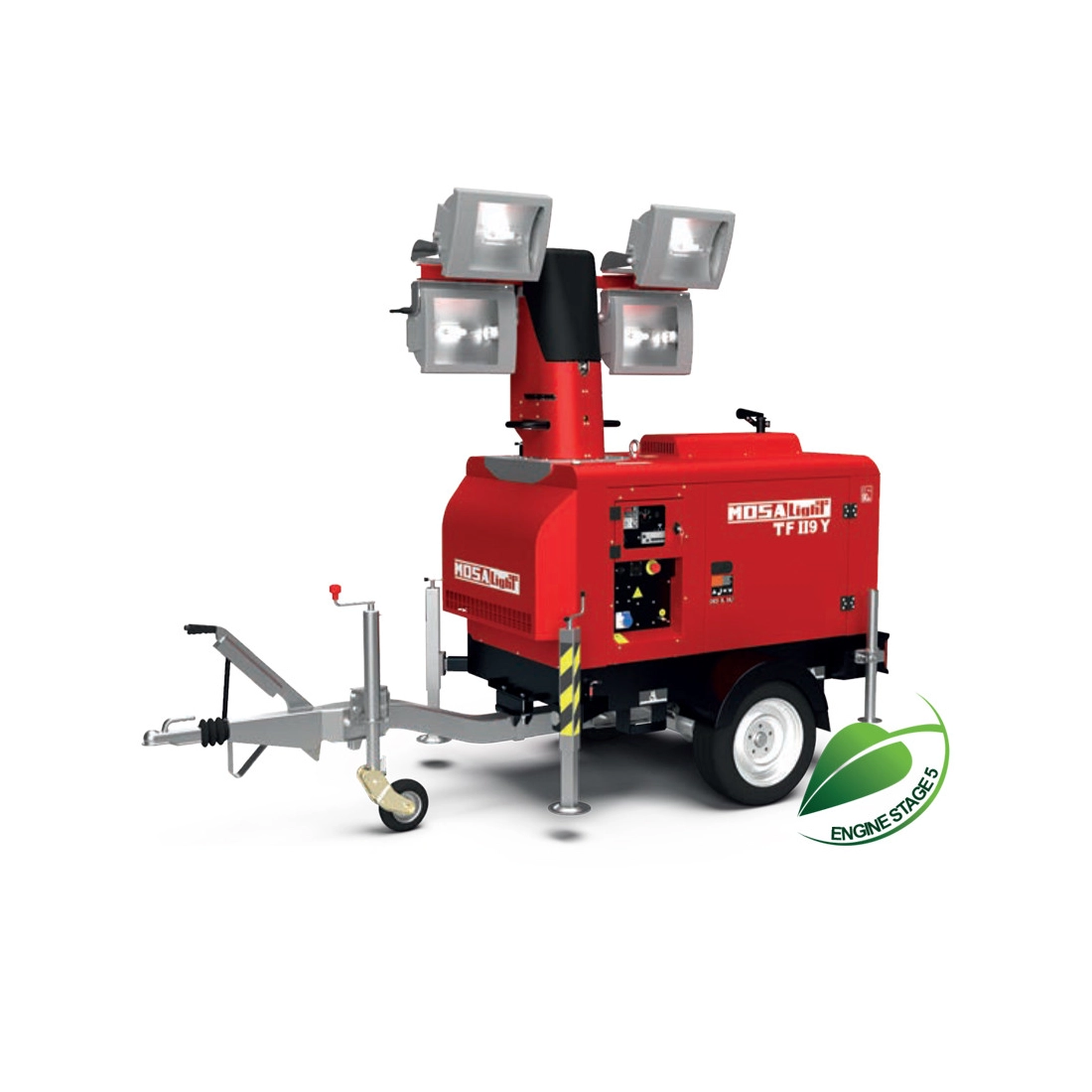

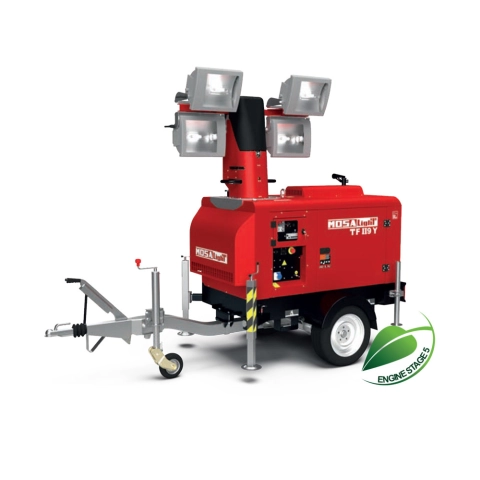

MOSA TF II9 Y L-4x350 LED is a light tower with a generator equipped with a KOHLER KDW 1003 Stage V Diesel engine, with 4 floodlights capable of delivering 350W light output each.

MOSA TF II9 Y L-4x350 LED is equipped with a KOHLER KDW 1003 Stage V engine, fully compliant with the latest European emission regulations. MOSA TF II9 Y L-4x350 LED is equipped with a hydraulic lifting system, capable of raising the tower to a height of 9 m. Thanks to the 4 LED lamps, the MOSA Light Tower can illuminate an area of 4800 square meters with a maximum luminous intensity of 223820 lm.

The safety stop stops the descent at a safe height that avoids the risk of collision with the lights during the normal descent phase or in case of sudden breakage of the telescopic ropes or the automatic brake of the lifting winch.

MOSA TF II9 Y L-4x350 LED is characterized by extremely compact dimensions and squared shape that optimize and facilitate its positioning and transport on mobile means.

TECHNICAL FEATURES MOSA TF II9 Y L-4x240 LED

Phase type: Single-phase
Maximum power: 10.6 KVA / 8,5 KW
Continuous power: 9.6 KVA / 7,7 KW
Maximum height (mt. ): 9

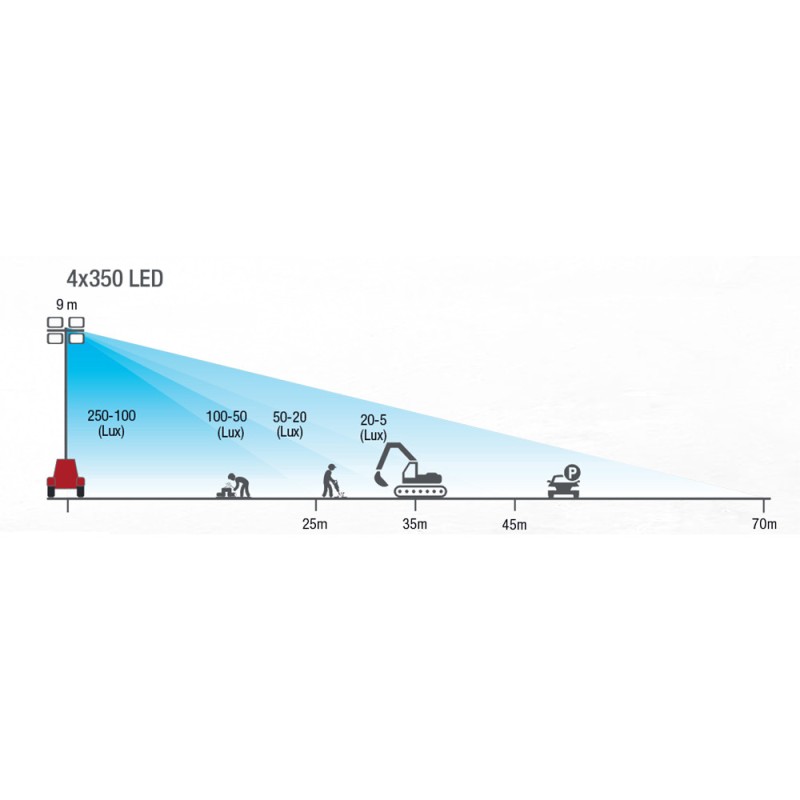

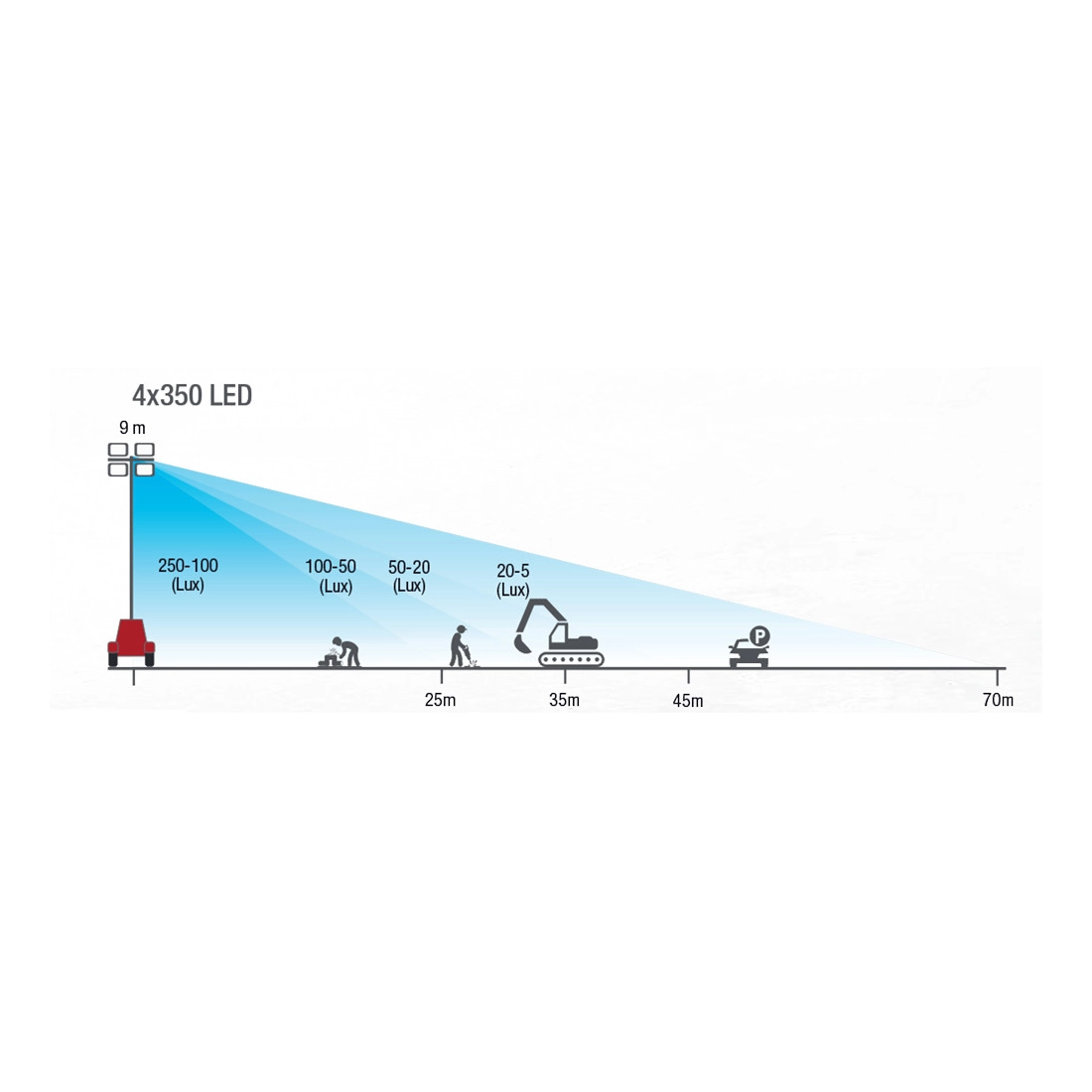

Illuminated Area: 4800 m²
Lift: Hydraulic
Lamps: LED
Floodlights: 4 x 350 W
Transportability: Fixed
Wind Stability (Km/h): 80
Rotation: 340°
Adjustable Stabilizers: 4
Motor: KOHLER KDW 1003
Motor RPM: 1500 rpm
Emissions Standard: STAGE 5
Fuel: Diesel
Sound Pressure: 90 dBA (65 dBA @ 7 m)
Tank Capacity (l): 110
Autonomy only lights (h): 230
Consumption only lights (l/h): 0.50

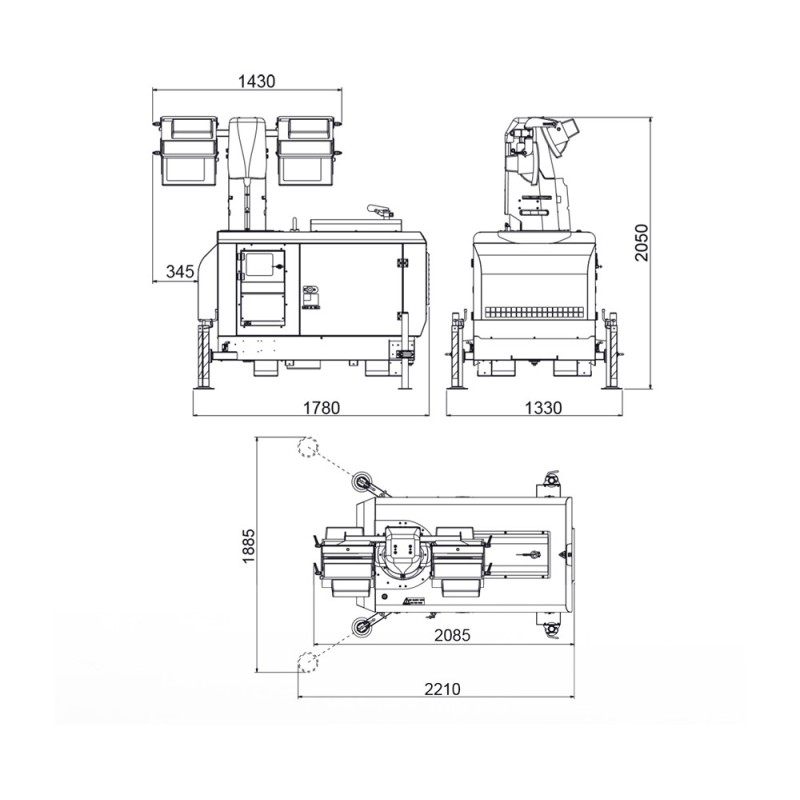

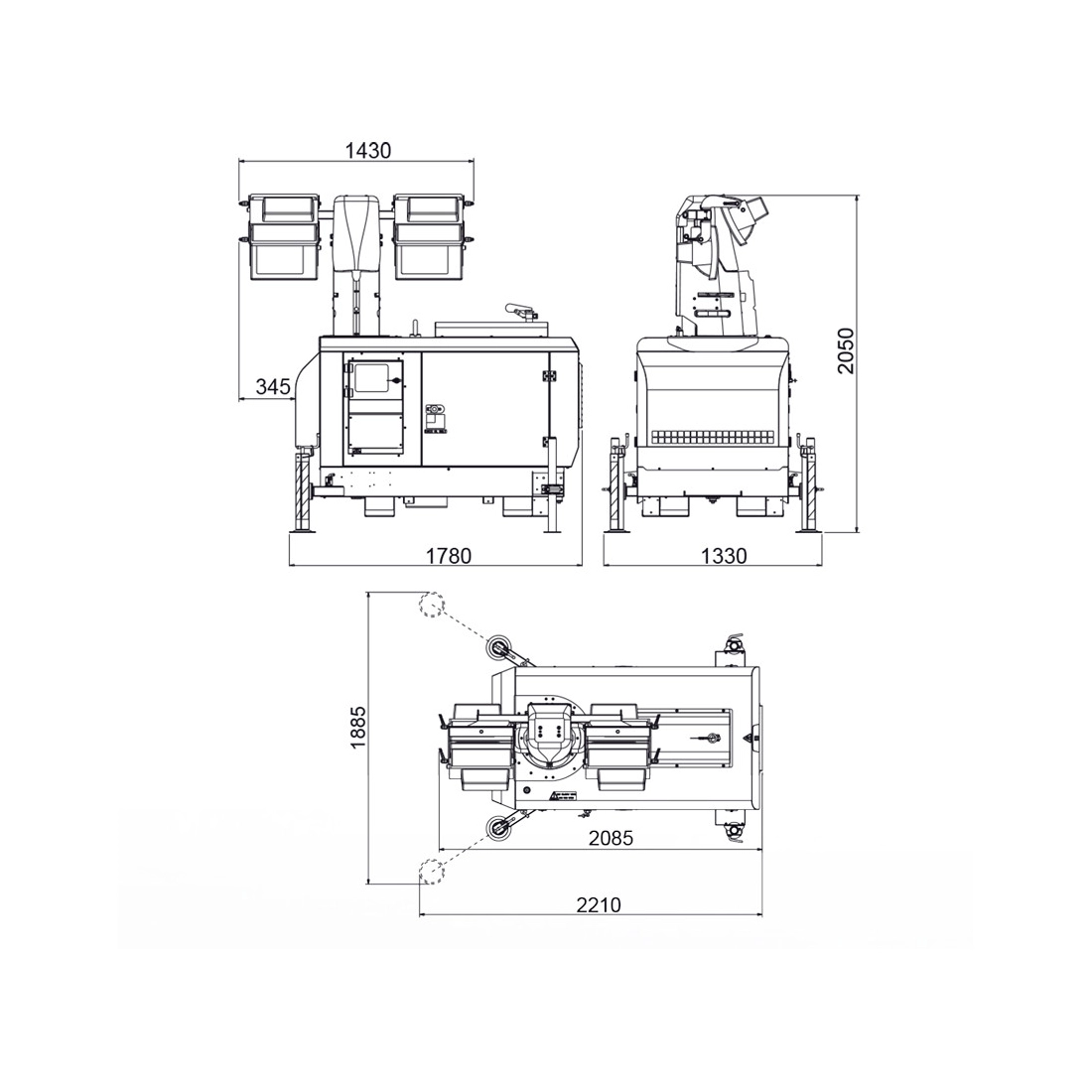

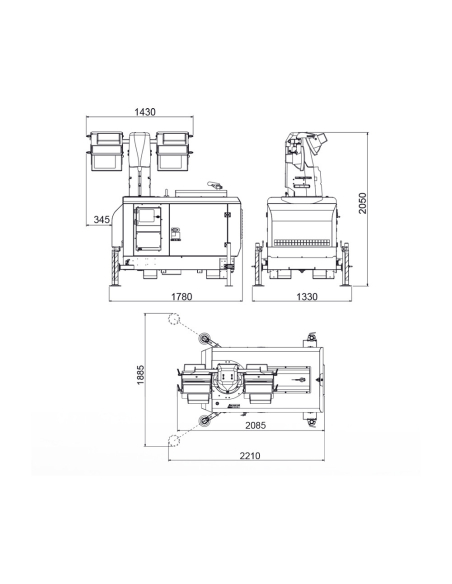

Dimensions Min. (mm): 1780 x 1330 x 2050
Dimensions Max. (mm): 2210 x 1885 x 9000
Dry weight (Kg): 850

Looking for a lighttower with different technical characteristics? Here you can find the full range of lighttowers MOSA or other specialized brands.

The images are for guidance only.
