AURORA TOWER LIGHT OMEGA 85-L 4X320-FF WITH GENERATOR GP11 S/K -SV

AURORA TOWER LIGHT OMEGA 85-L 4X320-FF WITH GENERATOR GP11 S/K -SV

Manufacturer: Green Power
Lights: 4 x 320W LEDs
Lit area: 5000 square meters
Total lumens: 166200 lm
Max height: 8. 5 Mt
Lifting: Hydraulic
Pole sections: 4
Rotation: 350°
Max wind resistance: 110 Km/h
Transportation: fast towing
Manual stabilizers: 4 + 1
Lifting hooks: 4
Fork passage guides: STD
Useful dimensions of the generator set: 960 x 1800 mm
Extra sockets: 1 x CEE 16A 400V 5P / 1 x CEE 16A 230V 3P
Generator motor: Kohler KDW 1404
Power supply: Diesel
Phase type: Single phase/Three phase
Continuous use power: 10 KVA / 8 KW
Maximum power: 11 KVA / 8. 8 KW
Emissions Standard: Stage V
RPM: 1500 rpm
Voltage: 230/400V
Frequency: 50 Hz
Generator dimensions (WxDxH): 1750x700x1125 mm
Closed tower dimensions: 3500x1705x2600 mm
Open tower dimensions: 3500x1705x8500 mm
Total dry weight: 1000 Kg

Payment methods:

Product: AURORA TOWER LIGHT OMEGA 85-L 4X320-FF WITH GENERATOR GP11 S/K -SV

Start of Rental

End of Rental

Where to collect / receive the Product

Do you need cables?

SÌNO

Additional Tank?

SÌNO

PERSONAL DATA

Name

Surname

Phone

Company

City

State

Postal Code

Country

VAT or CF

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Ask a question

Product: AURORA TOWER LIGHT OMEGA 85-L 4X320-FF WITH GENERATOR GP11 S/K -SV

Full Name

Company

Phone

City

Country

Postal code

Message

reCAPTCHA

Offer on letterhead

Product: AURORA TOWER LIGHT OMEGA 85-L 4X320-FF WITH GENERATOR GP11 S/K -SV

Name

Surname

Company

VAT

Phone

City

Country

Postal code

Shipping address

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Reference OMEGA 85-L 4X320-FF+GEN

Data sheet

Phase: Single phase / Three phase
Maximum power three phase (KW): 8.8
Continuous power three phase (KW): 8
Maximum power three phase (KVA): 11
Continuous power three phase (KVA): 10
Fuel: Diesel
Frequency (Hz): 50
Voltage (V): 230 / 400
Sockets configuration
Engine: Kohler KDW 1404
Emissions Regulations: Stage 5
Type of lamps: LED
Lamps: 4 x 320 W
Telescopic pole: Galvanized steel
Illuminated area (m²): 5000
Total lumens (Lm): 166200
Lifting System: Hydraulic lifting system
Maximum height (m): 8.5
Mast rotation: 350°
Open size (mm): 3500x1705x8500
Closed size (mm): 3500x1705x2600
With generator / Without generator: With generator
Transportability: Fast Trailer
Dry weight (Kg): 1000

Specific References

AURORA LIGHTHOUSE TOWER OMEGA 85-L 4X320-FF WITH GENERATOR GP11 S/K -SV

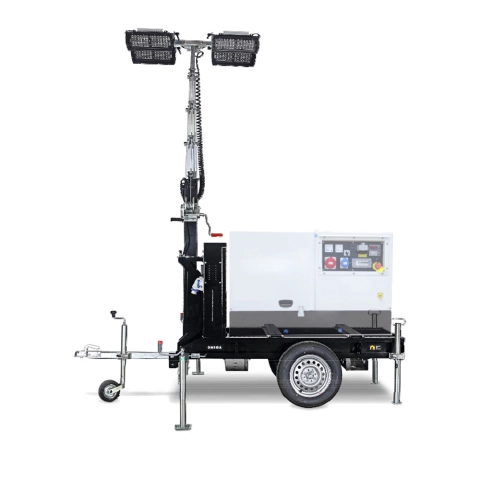

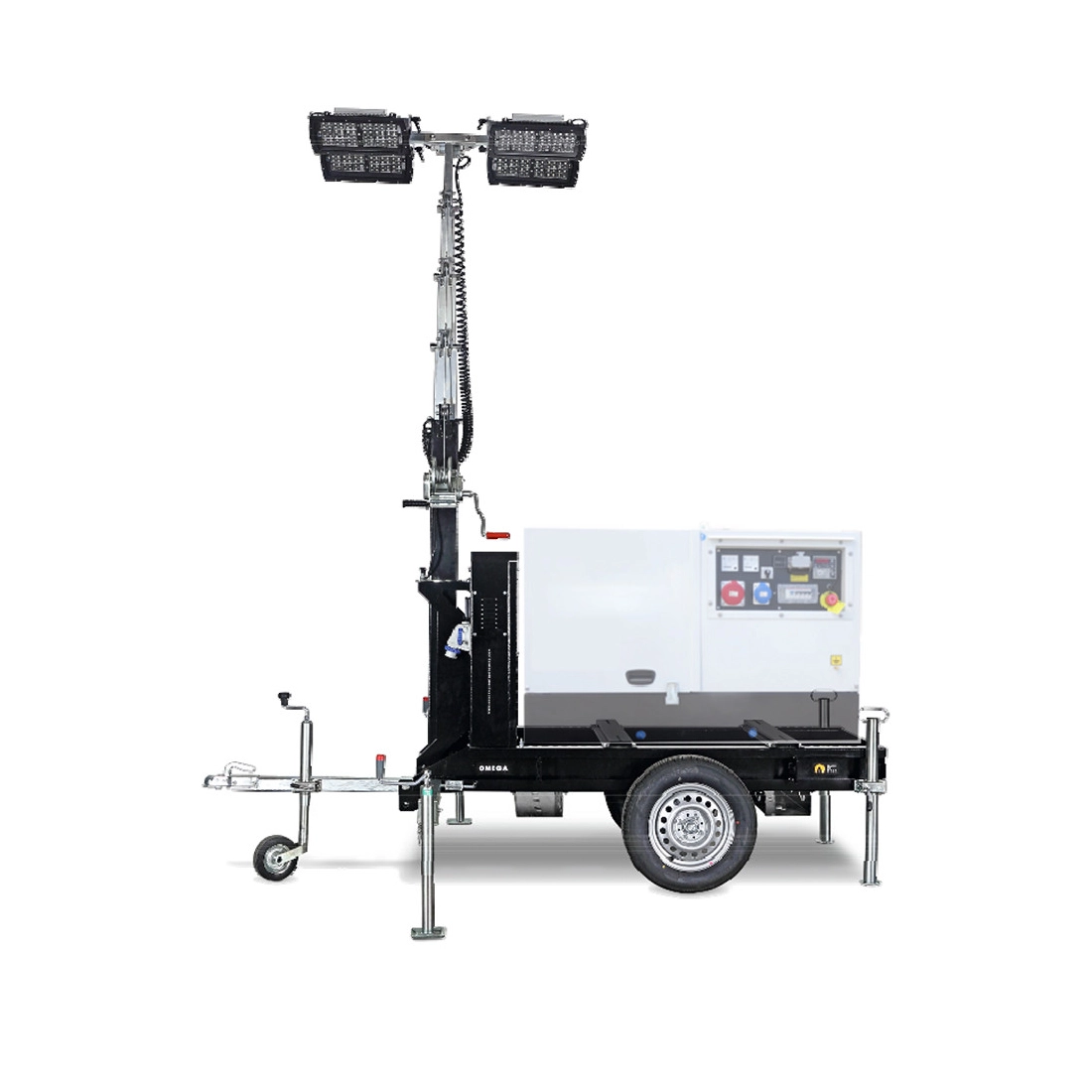

AURORA OMEGA 85-L4X320 - FF is a tower light with hydraulic lifting equipped with 4 floodlights capable of delivering a light output of 320W each.

AURORA OMEGA 85-L4X320 - FF is equipped with a galvanized steel lifting tower capable of extending up to a maximum height of 8.5 meters. The tower is complete with automatic hydraulic lift.

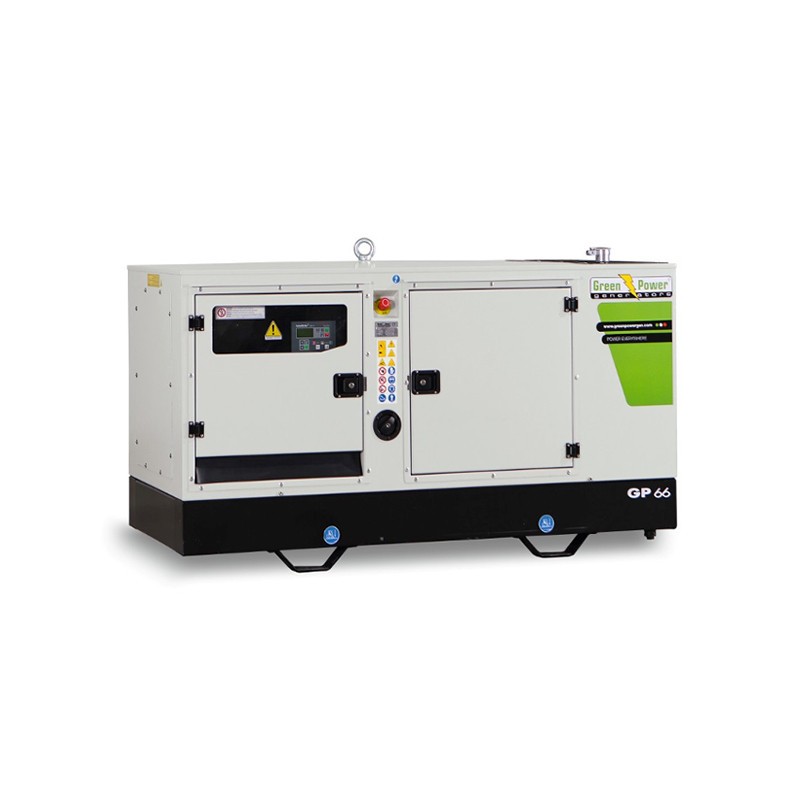

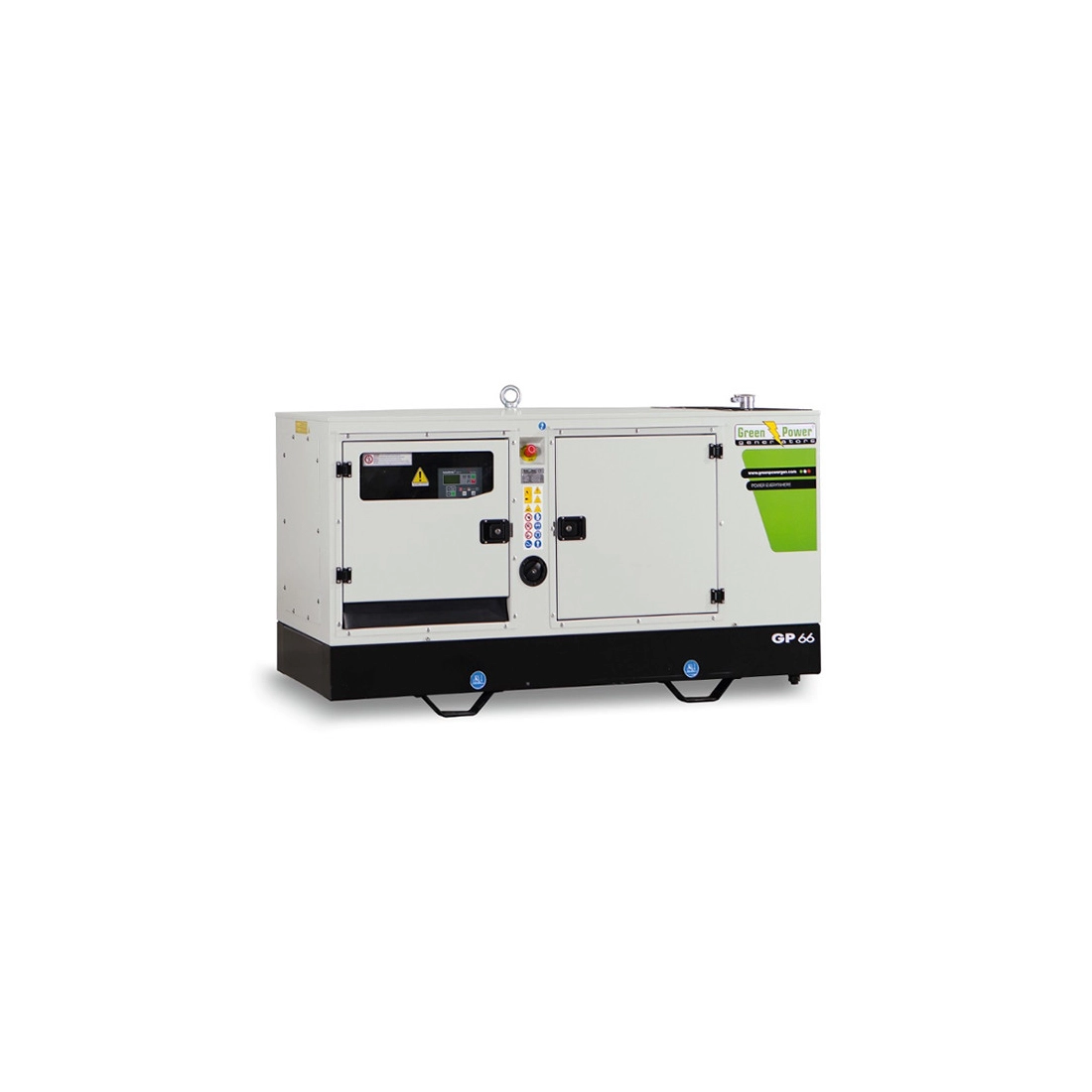

The light tower is equipped with a Green Power GP11 S/K - SV generator with a Kohler KDW 1404 STAGE V diesel engine, capable of delivering a maximum power of 8.8 KW.

The AURORA OMEGA 85-L4X320 - FF light tower has an input plug and a 16A 230V output socket for the with which it can be combined with other units. AURORA OMEGA 85-L4X320 - FF are mobile lighting units designed to ensure maximum reliability of operation even in the harshest environments.

AURORA OMEGA 85-L4X320 - FF is equipped with a fast towing trolley complete with autonomous braking system, complete with rear lights with integrated reverse light and all the functions for a correct urban and extra-urban transport.

One of the most distinguishing elements is the upper protection of the telescopic pole, an AURORA exclusive, which safeguards one of the most delicate points of the entire AURORA OMEGA 85-L4X320 - FF from atmospheric agents, construction site slag, dust and leaves.

TECHNICAL CHARACTERISTICS AURORA OMEGA 85-L4X320 - FF
