CGM MR4-160L

CGM AD4-1000JM - TORRE FARO TOWERGEN
search
  • CGM AD4-1000JM - TORRE FARO TOWERGEN
CGM
CGM MR4-160L No Basamento treppiede
New product

OUT OF PRODUCTION

Floodlights: 4 LED 160W
Illuminated Area: 22000 Mq
Max Height: 5,5 Mt
Lift: Manual
Telescopic pole: Galvanized steel
Wind Stability: nr 4 stabilizers
Lumen per luminaire: 20350 lm
Rotation: 360 degrees
Voltage: 230V
Frequency: 50 Hz
Width: 350 mm
Tripod Width: 2200 mm
Length: 350 mm
Tripod length: 2200 mm
Height Closed: 2050 mm
Height Opened: 5700 mm
Dry Weight: 105 Kg

Technical features
Frequency (Hz)
50
Voltage (V)
230
Type of lamps
LED
Lamps
4 x 160W
Telescopic pole
Galvanized steel
Illuminated area (m²)
2200
Lifting System
Hydraulic lifting system
Maximum height (m)
5.5
Mast rotation
360°
Open size (mm)
350 x 350 x 5700
Closed size (mm)
350 x 350 x 2050
Dry weight (Kg)
105
Details

CGM MR4-160L 4 X 160W

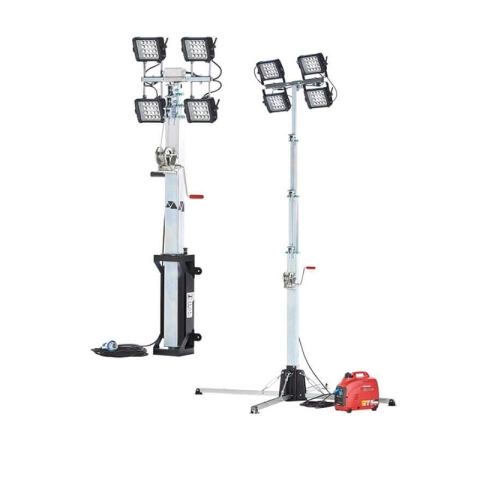

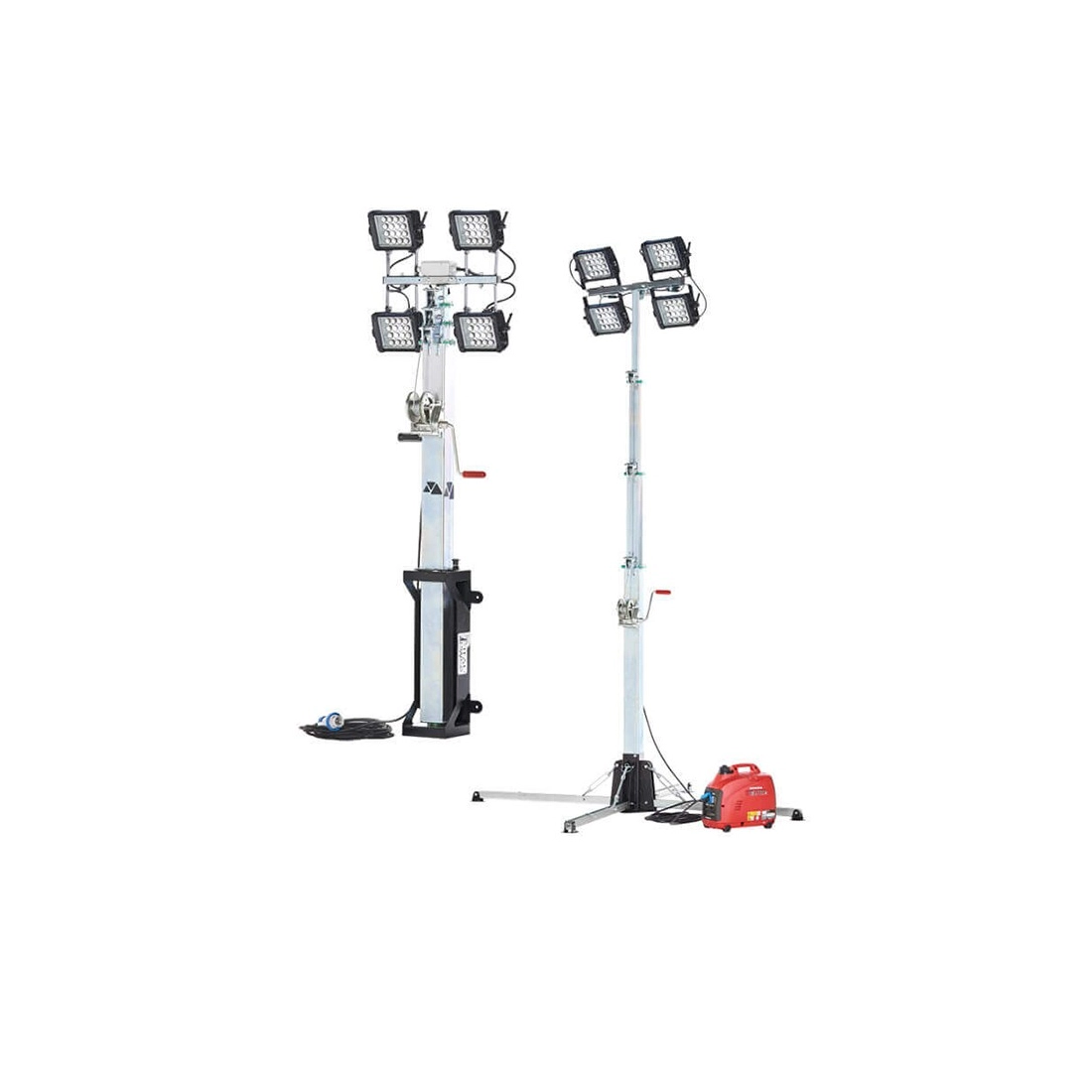

CGM MR4-160L is a light tower with manual winch lift, equipped with 4 floodlights capable of delivering a light output of 160W each.

CGM MR4-160L can be combined with a generator of your choice to best power the floodlights.

CGM MR4-160L features a galvanized steel lifting tower capable of extending up to a maximum height of 5.5 meters. The lifting tower is manually operated via a winch system that allows it to extend up to 5.5m

CGM MR4-160L can be combined with an optional tripod equipped with 4 stabilization feet to allow the tower to be opened with greater stability in the wind and greater safety.

Images and technical data are not binding and may be subject to revision by the supplier.

CGM MR4-160L TECHNICAL SPECIFICATIONS

Lights: 4 Led 160W
Lighted Area: 22000 Sq Ft
Max Height: 5,5 Mt
Rise: Manual
Telescopic Pole: In galvanized steel
Wind Stability: nr 4 stabilizers
Lumen per light: 20350 lm
Rotation: 360 degrees
Voltage: 230V
Frequency: 50 Hz
Width : 350 mm
Tripod width: 2200 mm
Length: 350 mm
Tripod length: 2200 mm
Height Closed: 2050 mm
Height Open: 5700 mm
Dry weight: 105 Kg

.

Are you looking for a product with different characteristics? Here you can find the full range CGM or other specialized brands.

Technical Sheet / Manuals
Tripod Base
Ask for availability
Add to wishlist
Download PDF
Ask a question
Product: CGM MR4-160L
Offer on letterhead
Product: CGM MR4-160L
Technical features
Frequency (Hz)
50
Voltage (V)
230
Type of lamps
LED
Lamps
4 x 160W
Telescopic pole
Galvanized steel
Illuminated area (m²)
2200
Lifting System
Hydraulic lifting system
Maximum height (m)
5.5
Mast rotation
360°
Open size (mm)
350 x 350 x 5700
Closed size (mm)
350 x 350 x 2050
Dry weight (Kg)
105
Details
Technical Sheet / Manuals
