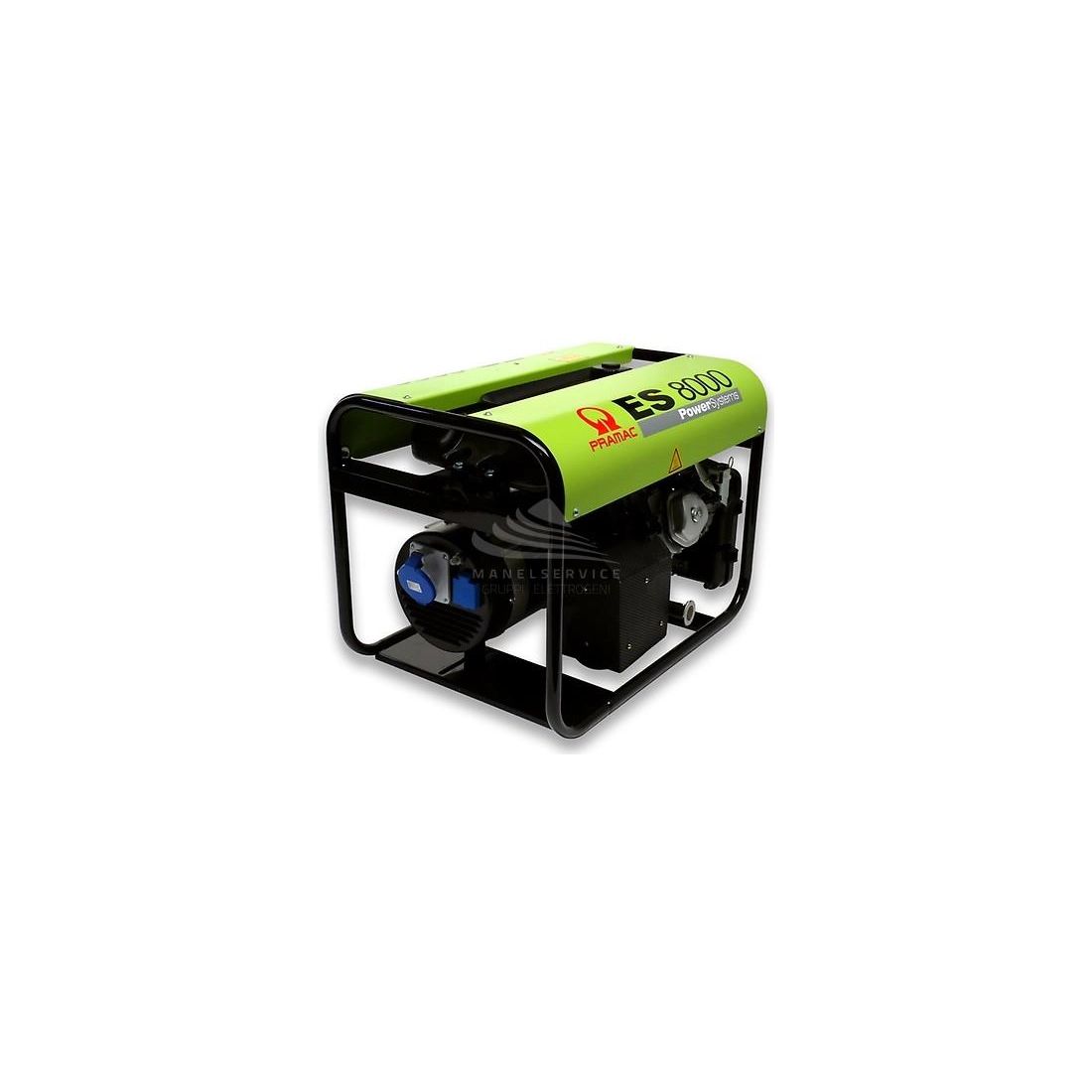

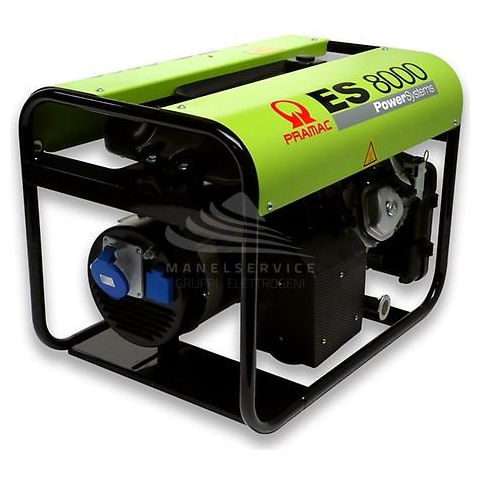

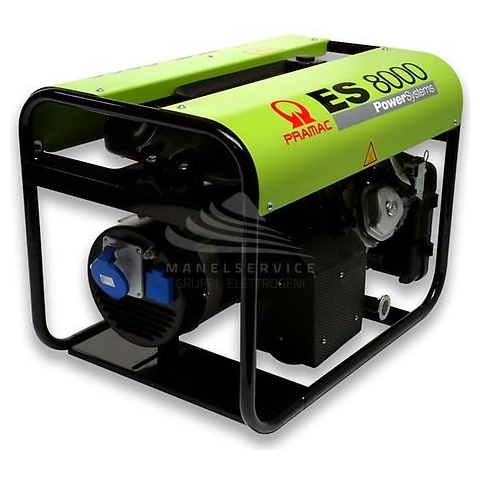

PRAMAC ES8000 Single-Phase Gasoline Generator

PRAMAC ES8000 MONOFASE
PRAMAC ES8000 MONOFASE
PE612SH1000

Maximum power Single-phase: 6.4 KW
Power continuous use Single-phase: 5.5 KW
Fuel: Gasoline
Voltage: 230 V
Frequency: 50 Hz
Engine: Honda GX390 Recoil
Starting: Tear-off
Consumption: 2.9 Lt/h at 100% of the load
Length: 729 mm
Width: 500 mm
Height: 536 mm
Weight: 73 Kg

Download Scheda tecnica ES8000 Download Technical data ES8000

Phase
Single phase
Height (mm)
536
Length (mm)
729
Starting system
Pull starter
Width (mm)
500
Engine manufacturer
Honda
Engine
Honda GX390 Recoil, naturally aspirated
Poles
2
Sockets configuration
1 x 230V 16A SCHUKO IP54 - 1 x 230V 32A 2P+T CEE IP44
Cooling
Air
Maximum power single phase (KW)
6.4
Continuous power single phase (KW)
5.5
Maximum power single phase (KVA)
7.2
Continuous power single phase (KVA)
6
Fuel
Gasoline
Frequency (Hz)
50
Voltage (V)
230
Engine rpm (rpm)
3000
Speed governor
Mechanical
Ignition
Recoil
Engine capacity (cm³)
389
Oil capacity (L)
1.1
Fuel tank capacity (L)
11
Consumption (L/h)
2.1 at 75% of the load / 2.9 at 100% of the load
Running time (h)
5.1 at 75% of the load / 3.8 at 100% of the load
Acoustic power
97 dB(A)
Acoustic pressure
69 dB(A) at 7 m
Dry weight (Kg)
73
Silenced
No
Super silenced
No
Product type
Generator
ATS Switch device
No ATS
Voltage regulator
Capacitor
Brand

* Images and technical data are not binding. Please always consult the technical data sheet released by the manufacturer. Manel Service does not assume responsibility for any changes made by the manufacturer.
